Installation Steps:
1.

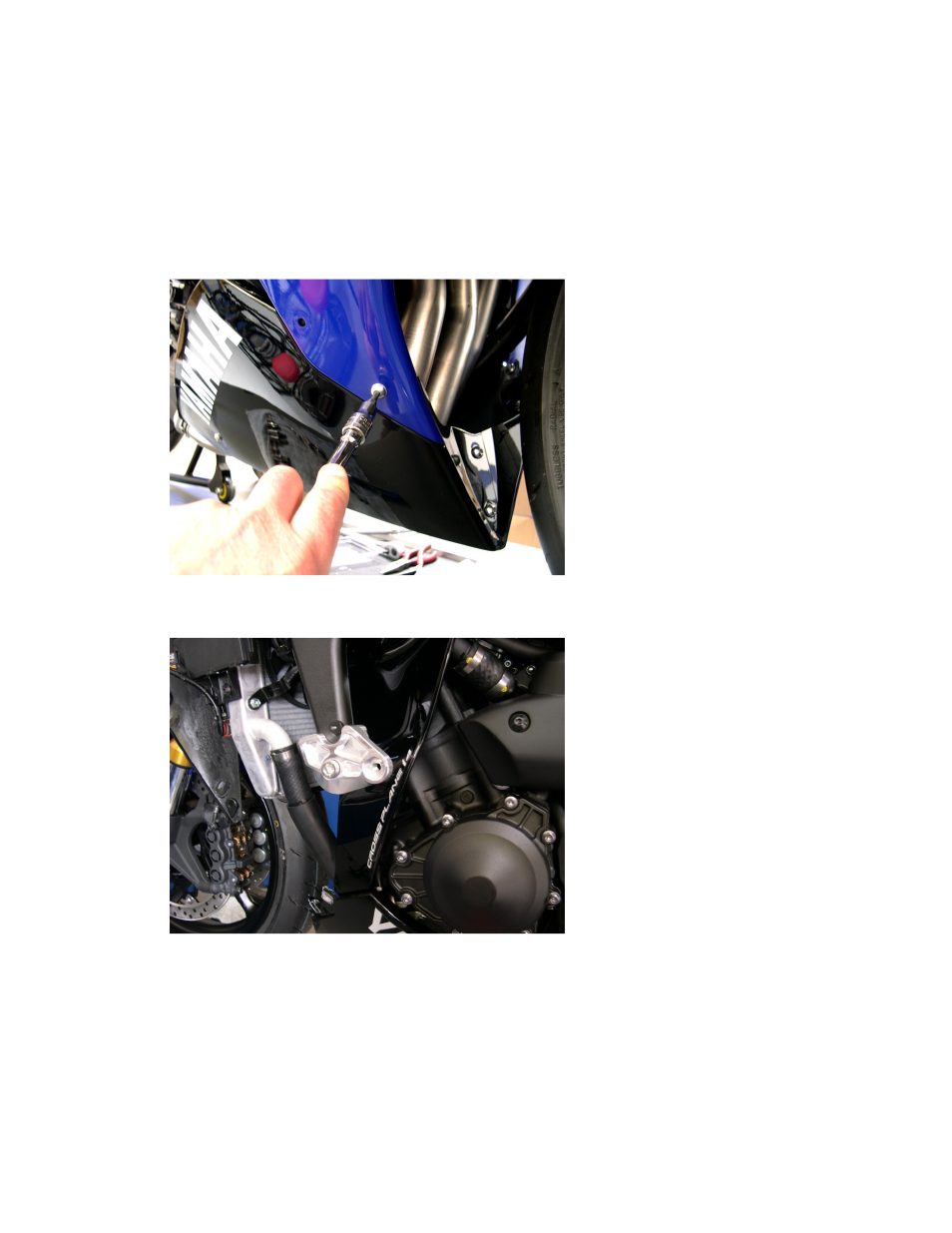

Remove left and right body panels. There are several plastic rivets or inner body clips located on
the underside of the mid body panel. To release, press in the center of the body rivet and
remove. On the outside of the body there are several Dzus type fasteners to release shown in
the photo below, once body panel is loose unclip the turn signal connections. This will expose
the main engine stud mounting locations.
2.
Remove the left side engine stud. Mount the left side offset using 99-HB-SH12125090 Socket
Cap 12 X 1.25 X 90 Main Engine Stud and torque down to OEM torque specs.
3.
Using one drop of blue thread locker mount the left side puck to the offset with 99-HB-
SH10125060 Socket Cap 10 X 1.25 X 60 (Holds puck to offset). Torque down to 33 to 35 foot lbs.
