Shogun Motorsports Honda CBR600RR (07-08) NO CUT Frame Slider - Manual (Page 2)

3.

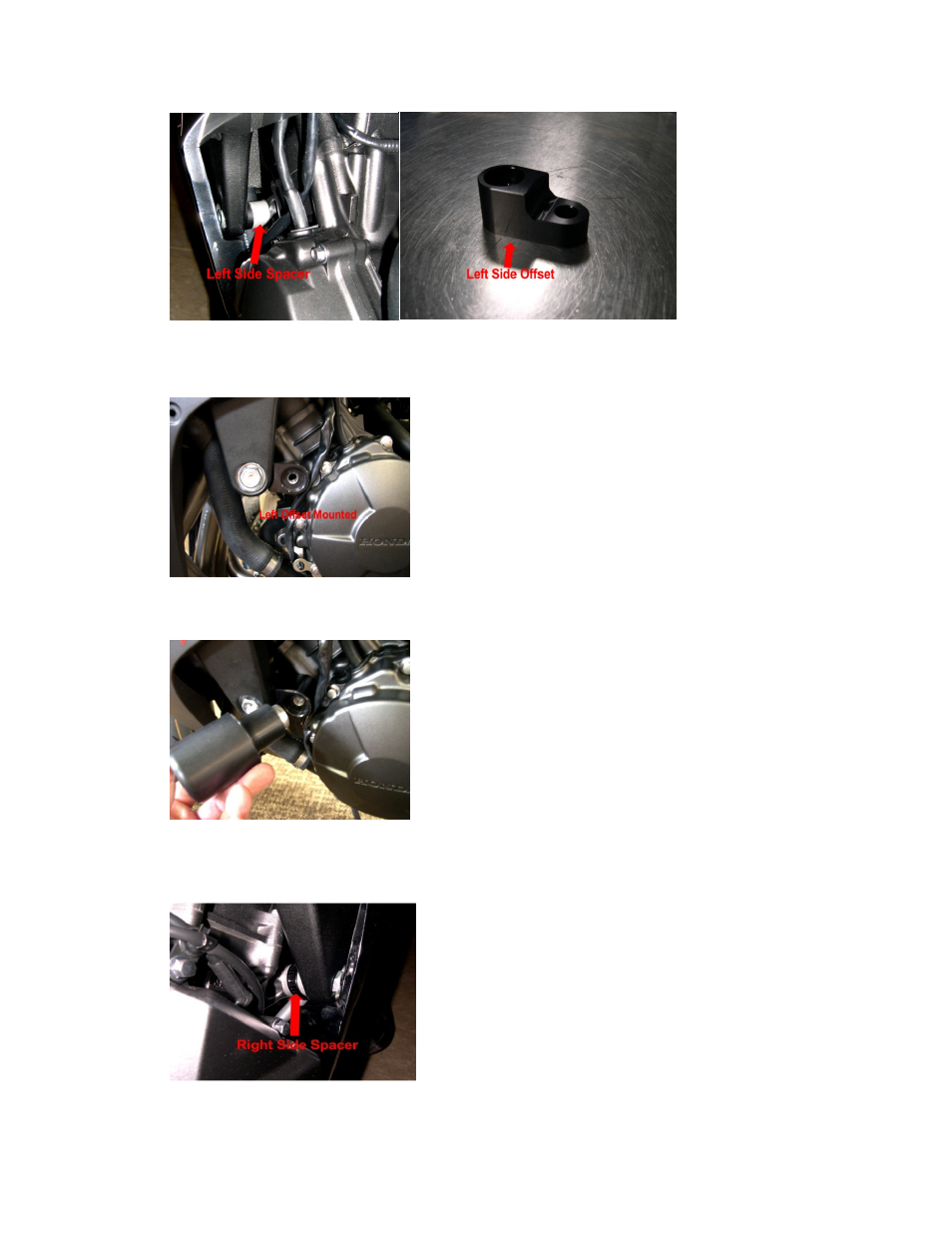

Mount the left side offset using the stock OEM 12mm Hex Flange bolt. Make sure that the wire
loom is routed properly and not being pinched by the offset in anyway. Line up the edge of the
offset (wile mounted) with the edge of the frame and torque down.
4.
Use one drop of blue thread locker on the (99-HB-SH10125080) Socket Cap 10 X 1.25 X 80 (Holds
puck to offset). Torque down to 30 to 32 foot lbs.
5.
Remove right engine stud. There is a spacer that is located between the frame and the engine.
Your right side offset will mount in this location. The zip tie located around the spacer is
reusable, simply unlock it by hand so you can reuse later.
