High Lifter Radiator Relocation Kit - Can-Am Outlander 500_650_800_1000 User Manual
Page 10

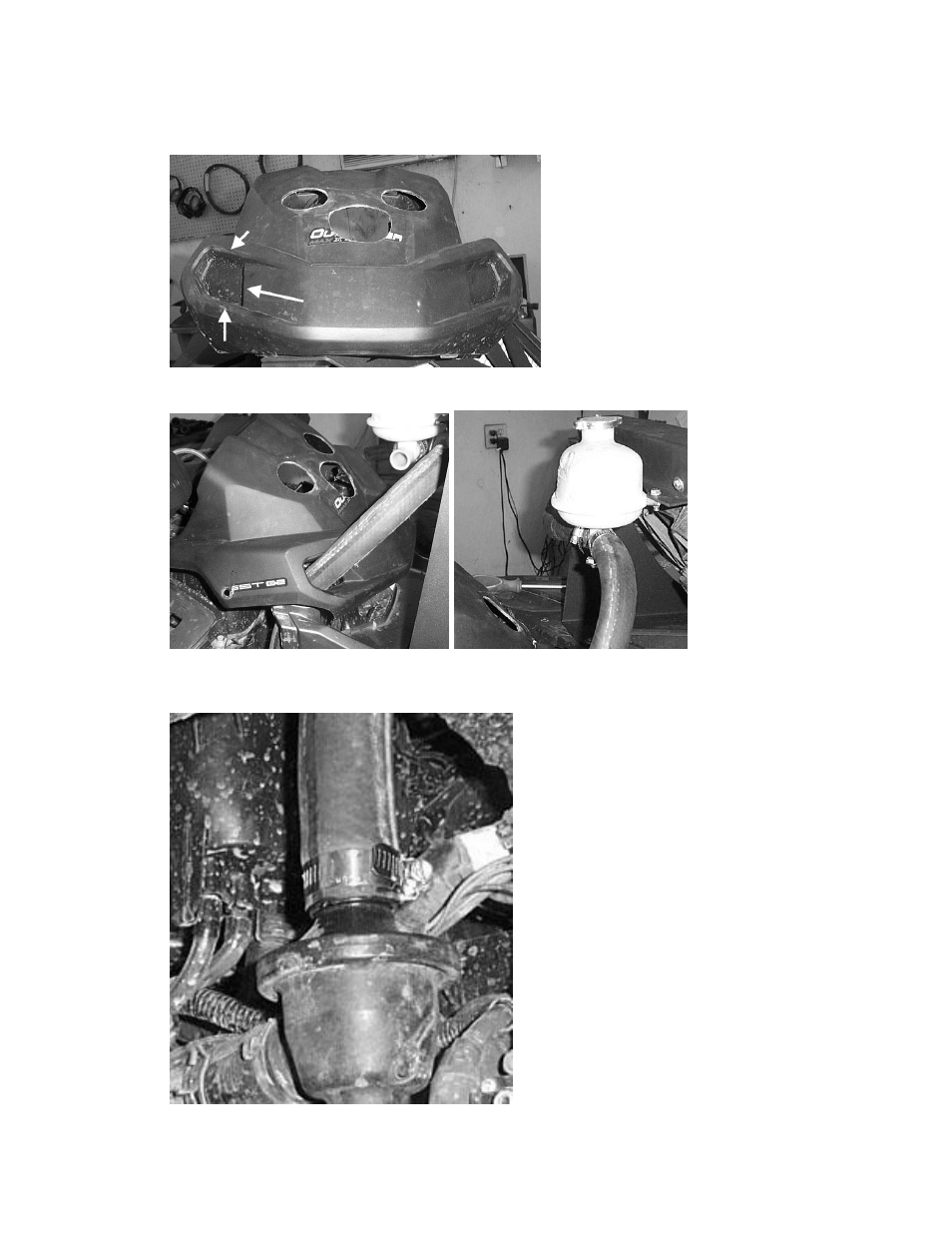

23. Next cut a hole in the pod cover for the hose to run through from the filler bottle.
(This photo also has holes previously cut for a snorkel kit)
24. Disconnect the hose from the filler bottle and run it through the plastic and reattach the
hose to the bottle using the #16 clamp provided.
25. Reattach all the plastic to the ATV that was removed earlier in the installation process.
DO NOT ATTACH THE INNER FENDERS AT THIS TIME.
26. Fasten the hose to the top of the thermostat housing using the #16 clamp provided.
