High Lifter Radiator Relocation Kit Low Profile - Polaris Sportsman 850 XP (09-13) User Manual
Page 9
9

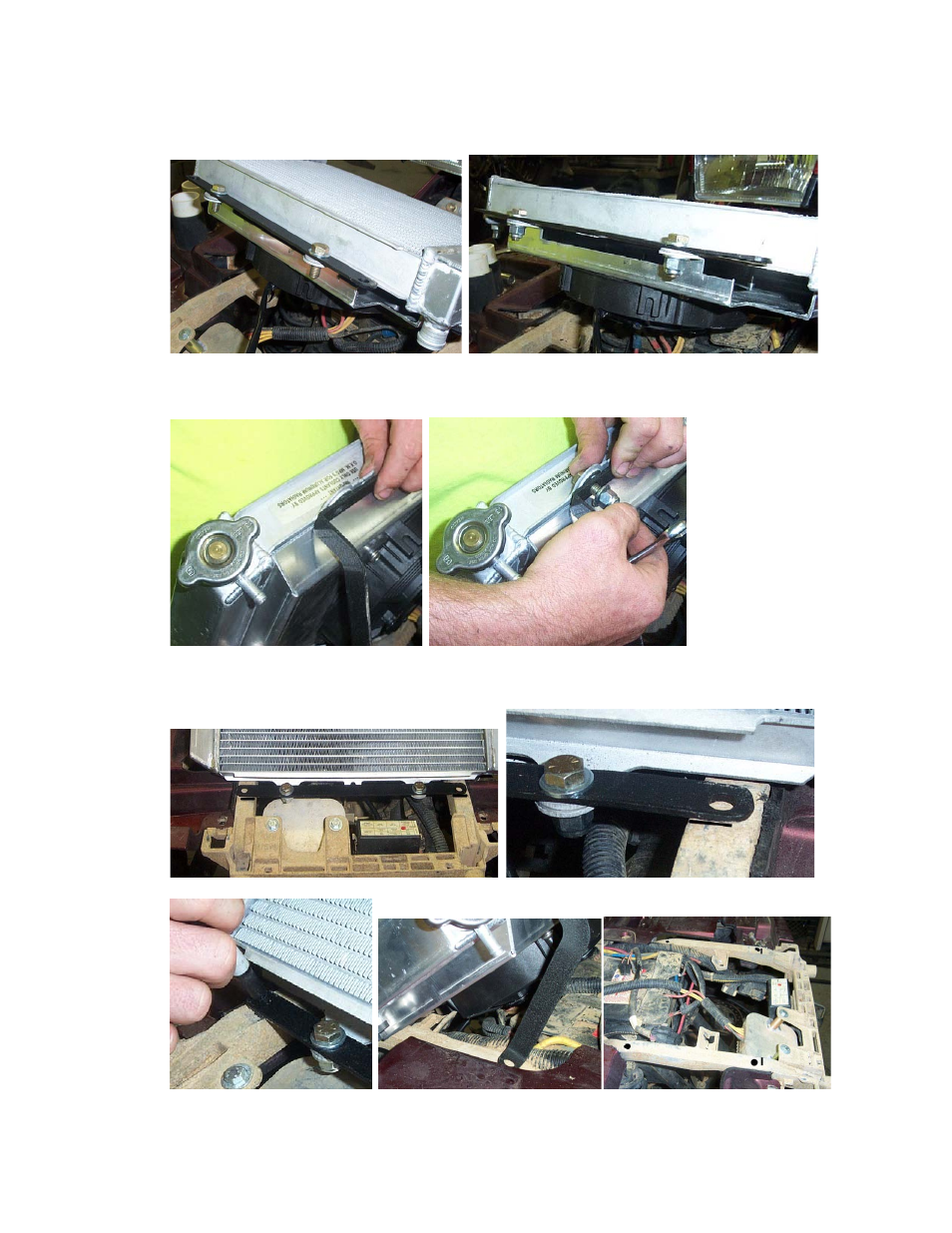

18. Using the two 3/8 x 1” hex bolts, four 10mm flat washers, and two 3/8” lock nuts connect
the lower mounting bracket to the front side of the radiator and shroud.
19. Using the two 3/8 x 1” hex bolts, four 10mm flat washers, and two 3/8” lock nuts connect
the upper mounting bracket to the back side of the radiator and shroud.
20. Using the marks for the lower mounting bracket as a guide, line the bracket up with the
marks on the frame and using a pen mark the bolt holes. Mark the holes for the lower
bracket and upper mounting bracket bolt holes.
