21. Use a 3/8 drill bit to drill the holes in the frame.
22. Before we proceed with the installation of the radiator it will be easier to first relocate the
headlight on the handle bars.

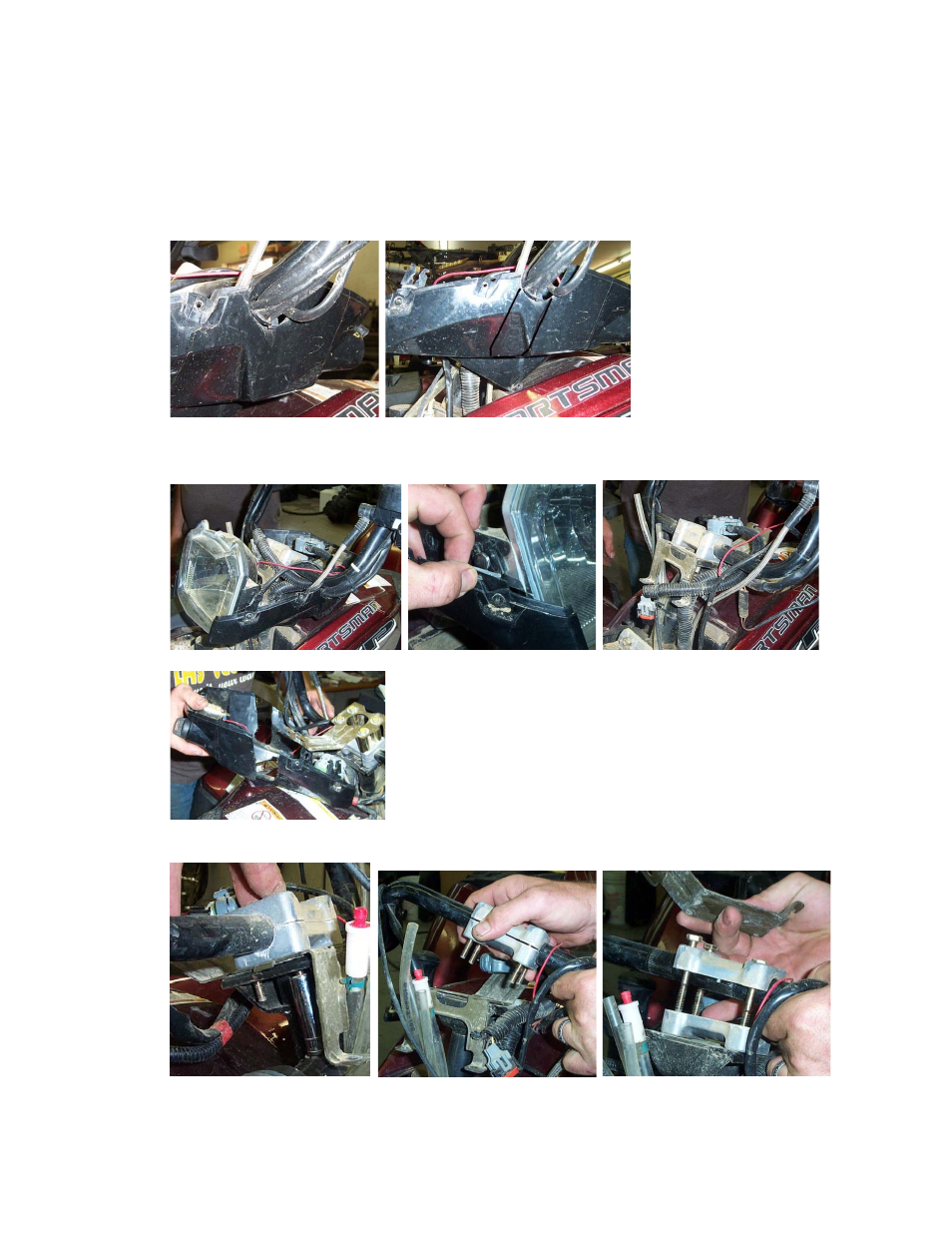

23. Using the photo as a, guide trim the area underneath the handle bars on the plastic light
pod. Do both sides of the light pod.
24. Now you will need to remove the light pod from the handle bars. You will need to
disconnect the wires and completely remove the plastic pod from the ATV.
25. Using a cutting tool or dremel tool trim the plastic on the light pod.
26. Now loosen and remove the metal light bracket from the handle bars. You will do this by
removing the four bolts that secure the handle bars to the steering stem.
