High Lifter Radiator Relocation Kit Low Profile - Polaris Sportsman 850 XP (09-13) User Manual
Page 12
12

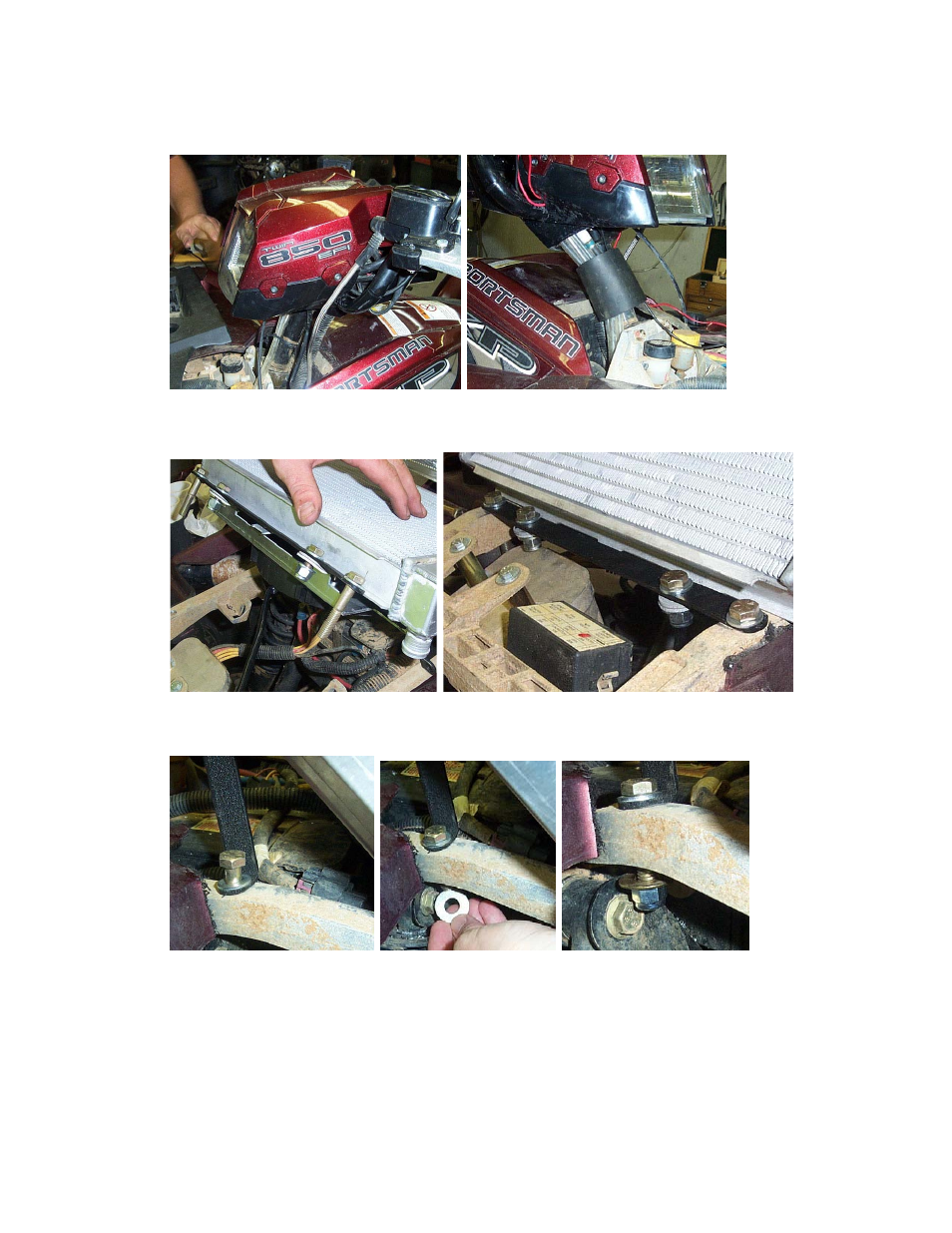

32. Use the protective sleeve provided in the kit to secure all wires and vent lines. Fasten the
sleeve with the zip ties provided in the kit.
33. Attach the radiator and brackets to the frame. You should have drilled the holes already.
34. Connect the lower mounting bracket to the frame using two 3/8 x 2” hex bolts, two
10mm washers, and two 3/8” lock nuts.
35. Connect the upper mounting bracket to the frame using two 3/8 x 1 ¾ hex bolts, two
10mm washers, two 3/8” washers and 3/8” lock nuts. When connecting the upper bracket
to the frame you will use the 3/8” flat washers under the frame.
