High Lifter Radiator Relocation Kit Low Profile - Polaris Sportsman 850 XP (09-13) User Manual
Page 14
14

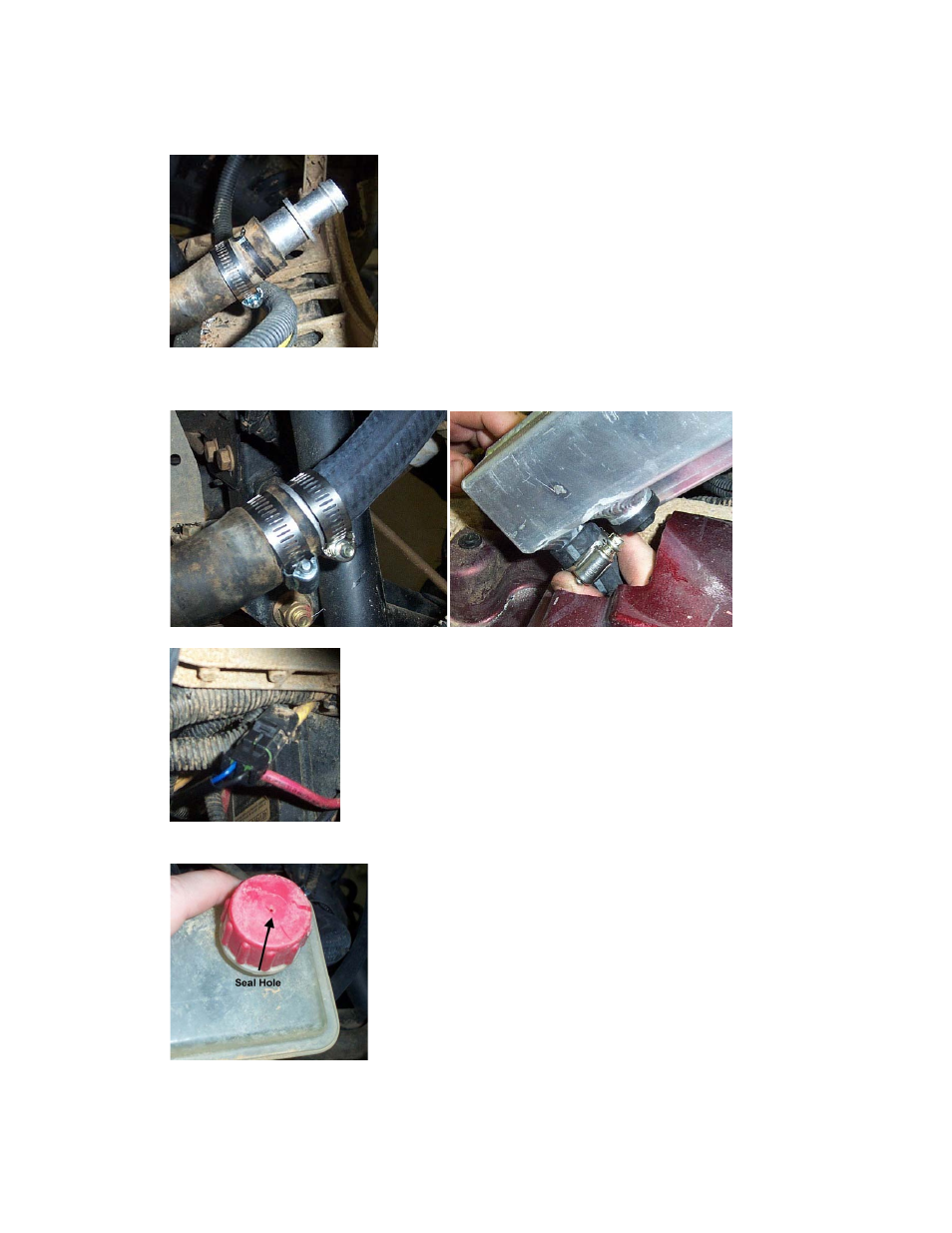

42. Attach the aluminum hose adapters to the stock hoses that you left connected to the
engine and use the 1” clamps provided to fasten the adapters.
43. Using the new ¾” hose provided in the kit run hose to the inlet and outlet bungs on the
radiator. Use the ¾” hose clamps to fasten the hoses to the adapters and bungs.
44. Plug the fan to the stock fan connector.
45. On the top of the overflow bottle there is a small pin hole, you will need to seal this hole
with silicone.
