High Lifter Radiator Relocation Kit Low Profile - Polaris Sportsman 850 XP (09-13) User Manual

Page 5

Text mode
Original mode

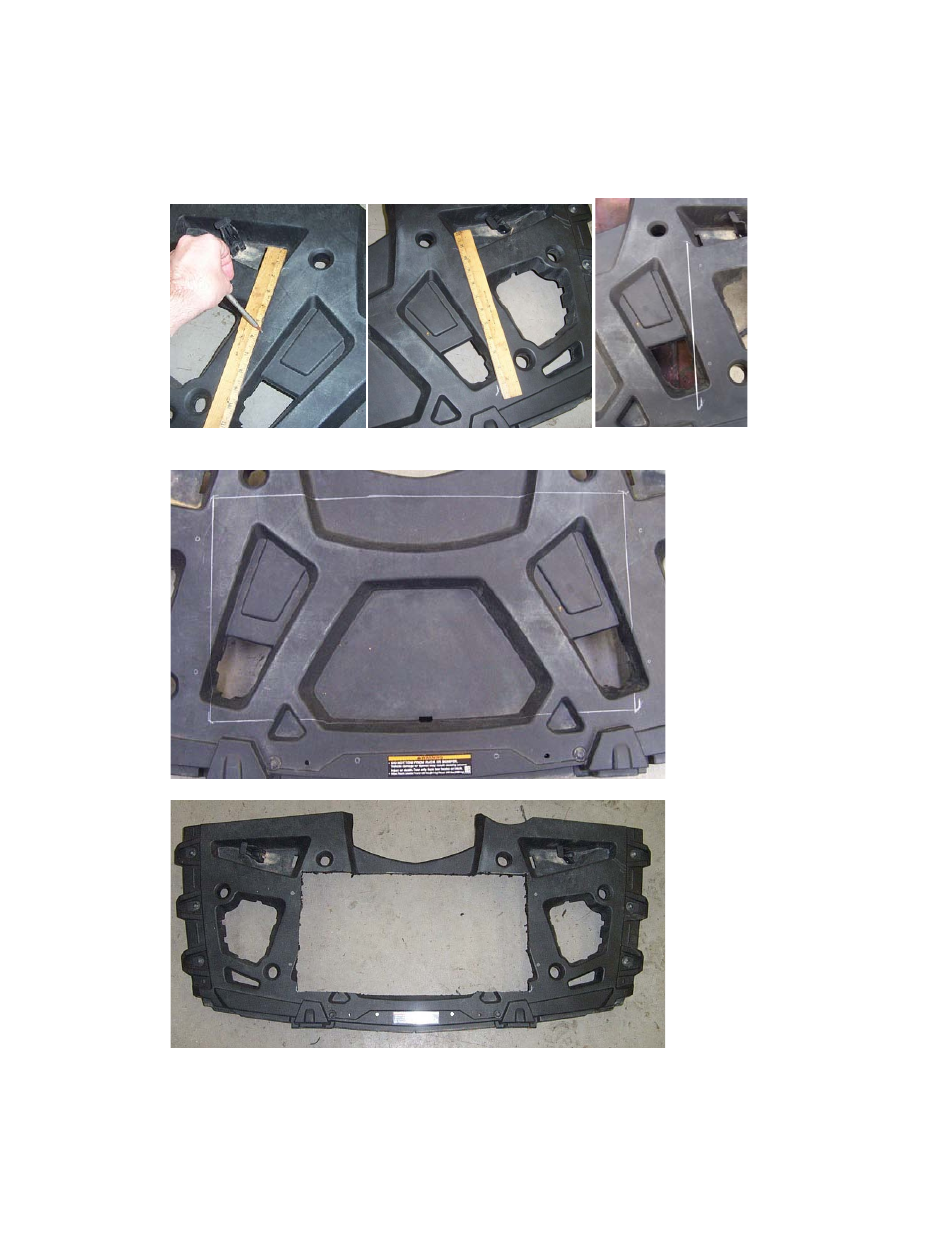

7. Once you have marked the corners and measured in 1” use a straight edge and trace out

the pattern to be cut.

8. Using a dremel tool cut out the center portion of the top rack. You will also need to drill

out the holes for the shroud to be connected to the rack. Use a ¼” drill bit.
