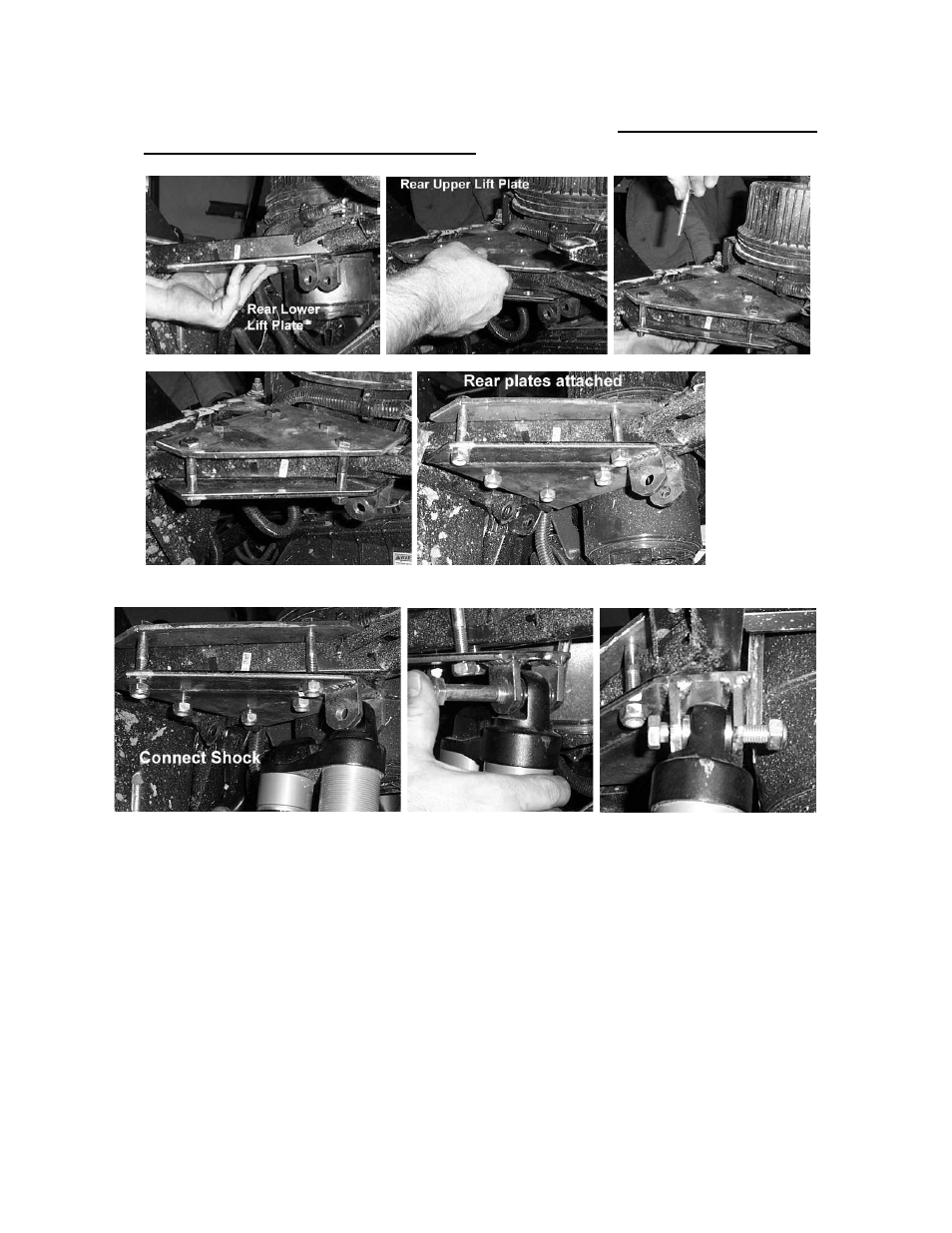

9. Locate one lower lift bracket and one of the upper lift bracket. NOTE: On the lower lift
brackets there are left and right brackets. Connect them to the frame using the 5ea 10mm
x 65mm hex bolts and 10mm lock nuts.
10. Now attach the rear shock to the lift brackets using the 12mm x 65mm hex bolt and 12mm
lock nut provided.
11. Tighten all nuts and bolts.
12. Repeat steps for opposite side.
13. Place plastic back on the RZR.
14. Reinstall the rear axles.
15. With RZR still on jack stand and wheels back on, rotate the tires to check for boot clearance
on rear CV axles. If there is rubbing you will need to disassemble and get clearance by
grinded more material.
