Front lift installation – High Lifter Lift Kit for Polaris Ranger RZR 900 XP - Signature Series 5 User Manual
Page 3

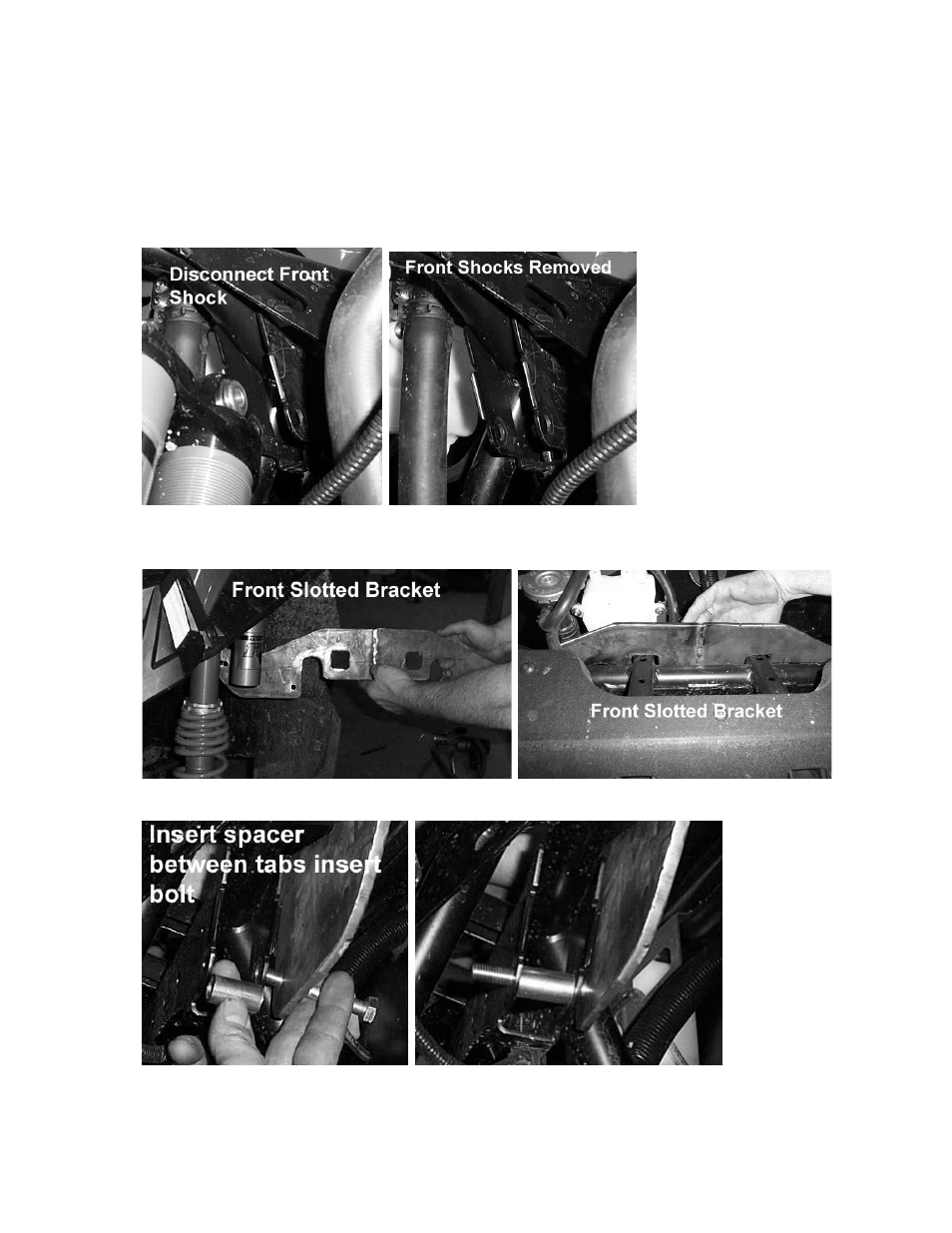

Front Lift Installation
1. Place transmission in park. Place jack under center of front end and lift until front wheels
clear the ground. Be careful to properly secure and support so that A-arms and shocks can
droop to full extension.
2. Remove front wheels.
3. Disconnect the top of the front shocks.
4. Insert the front slotted bracket on the backside of the front cross member.
NOTE: We have removed the front plastic so you can see how this bracket is installed. This is
not required for proper installation.
5. Place spacer between the shock mount tabs and insert the 10mm x 65mm hex bolt through
the slotted bracket and spacer.
