3.

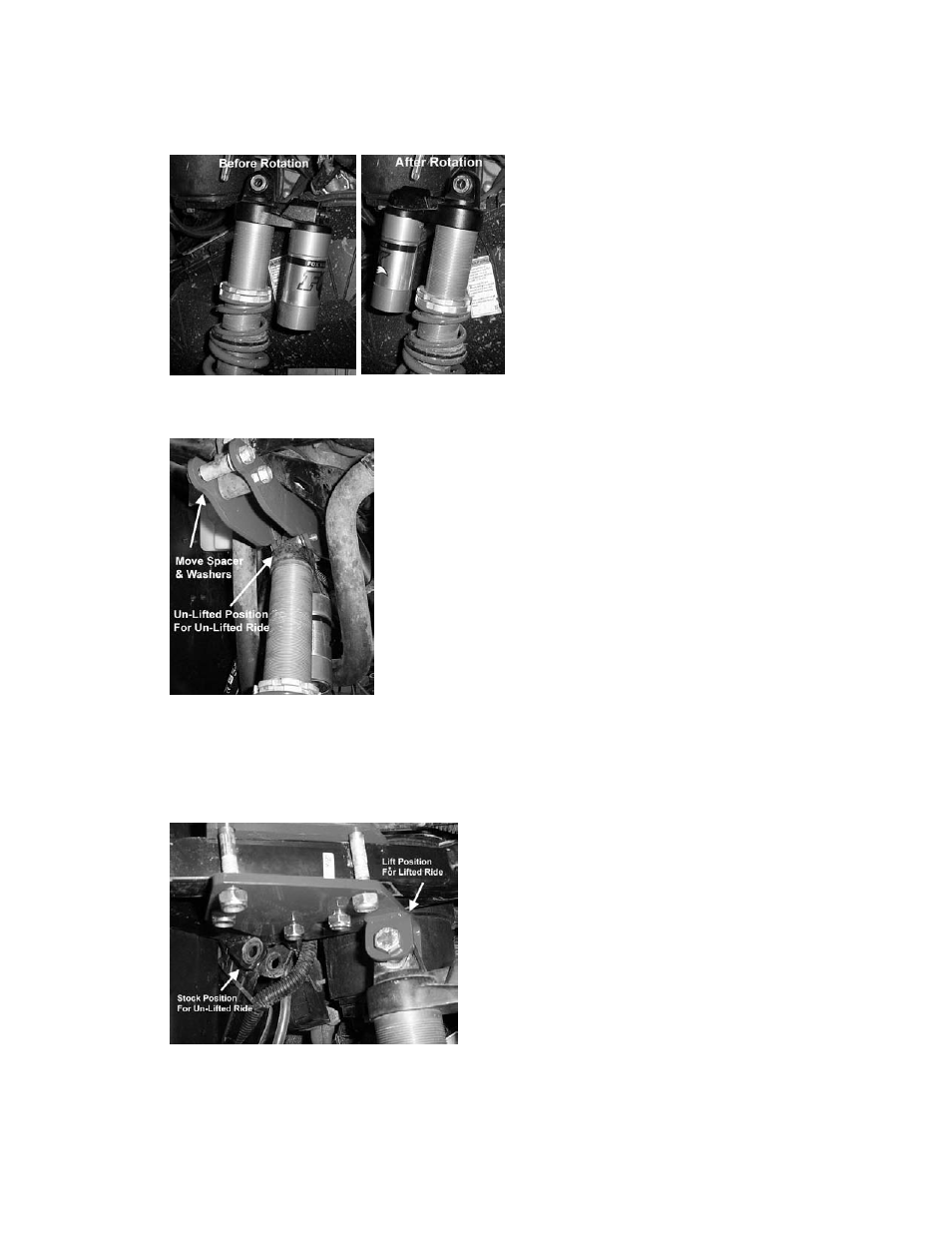

Rotate the piggyback reservoir on the shock 180 degrees. Rotates very easy by hand.

4. Connect the top of the shock to stock shock mount tabs and lift brackets and then connect

the spacers to the lift bracket in the lifted position.

5. Once you have repositioned the shocks, torque all the nuts and bolts tight, you can then

lower the jack.

Rear Lift

1. Place a jack under the rear of the UTV and raise until the tires clear the ground.
2. Disconnect the top of the shock from the lifted position and connect it to the stock shock

mount tabs.

3. Once you have moved the shock torque all nuts and lower the jack.
