High Lifter Lift Kit for Polaris Ranger RZR 900 XP - Signature Series 5 User Manual
Page 7

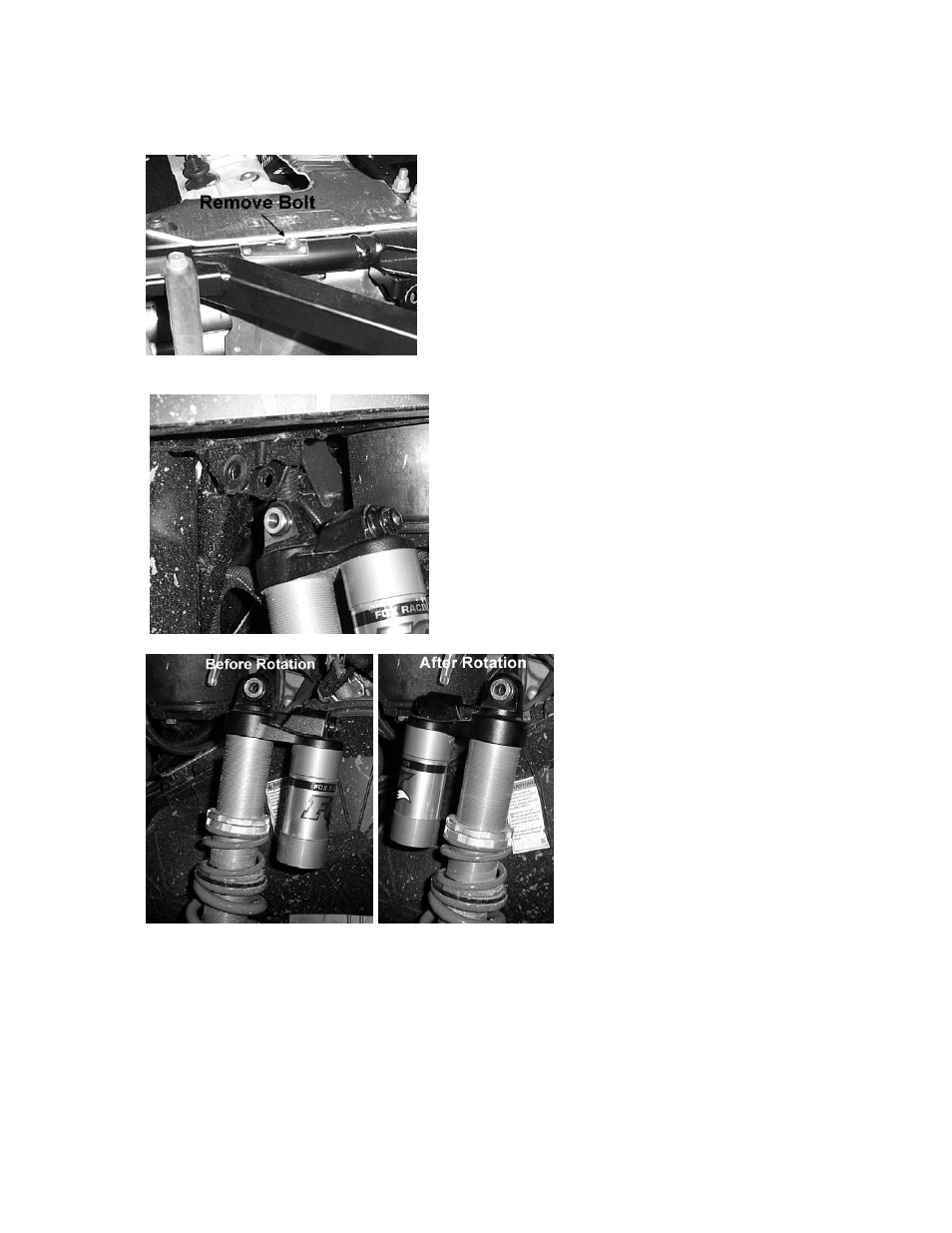

6. Next remove the bolt on top of the frame that is on the right side. It interferes with the lift
plates. When you secure the lift plates to the frame, they will hole the shield in place.
7. Disconnect the top of the rear shock from the shock tabs.
8. Rotate the piggyback reservoir on the shock 180 degrees. Rotates very easy by hand.
