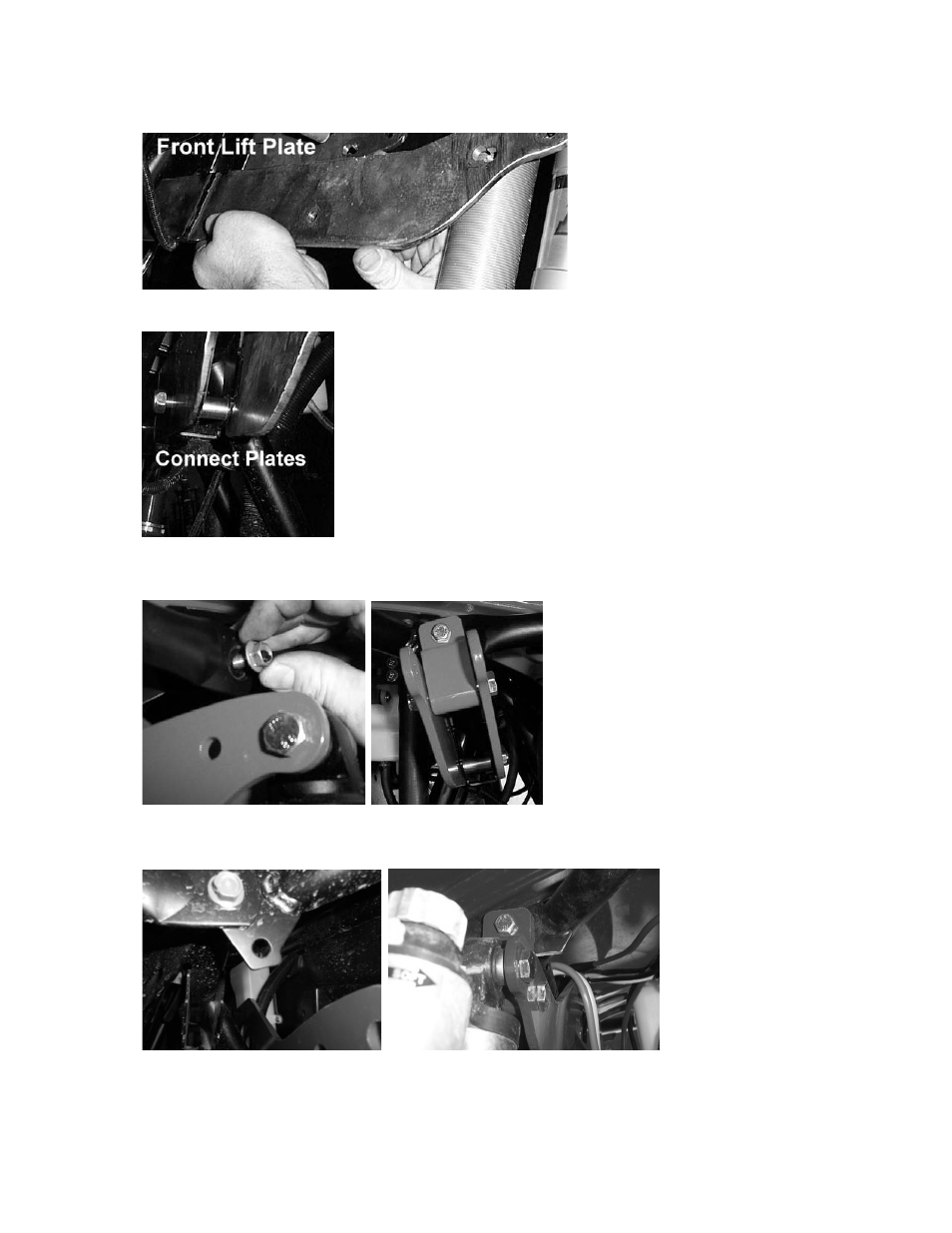

6. Next insert the long front lift plate in front of the front cross member.
7. Now secure the plates loosely with the 10mm lock nut.
8. Now remove the OEM bolt from the frame right above the top shock mount and connect the
spacer bracket between the plates and secure it using the 8mm x 45mm hex bolts in the stock
bolt hole. This bracket goes to the inside holes on the front lift plates.
NOTE:
There is a tab they may cause the bracket to not fit properly. You will need to trim the tab
for clearance.
