High Lifter Lift Kit for Polaris Ranger RZR 900 XP - Signature Series 5 User Manual
Page 5

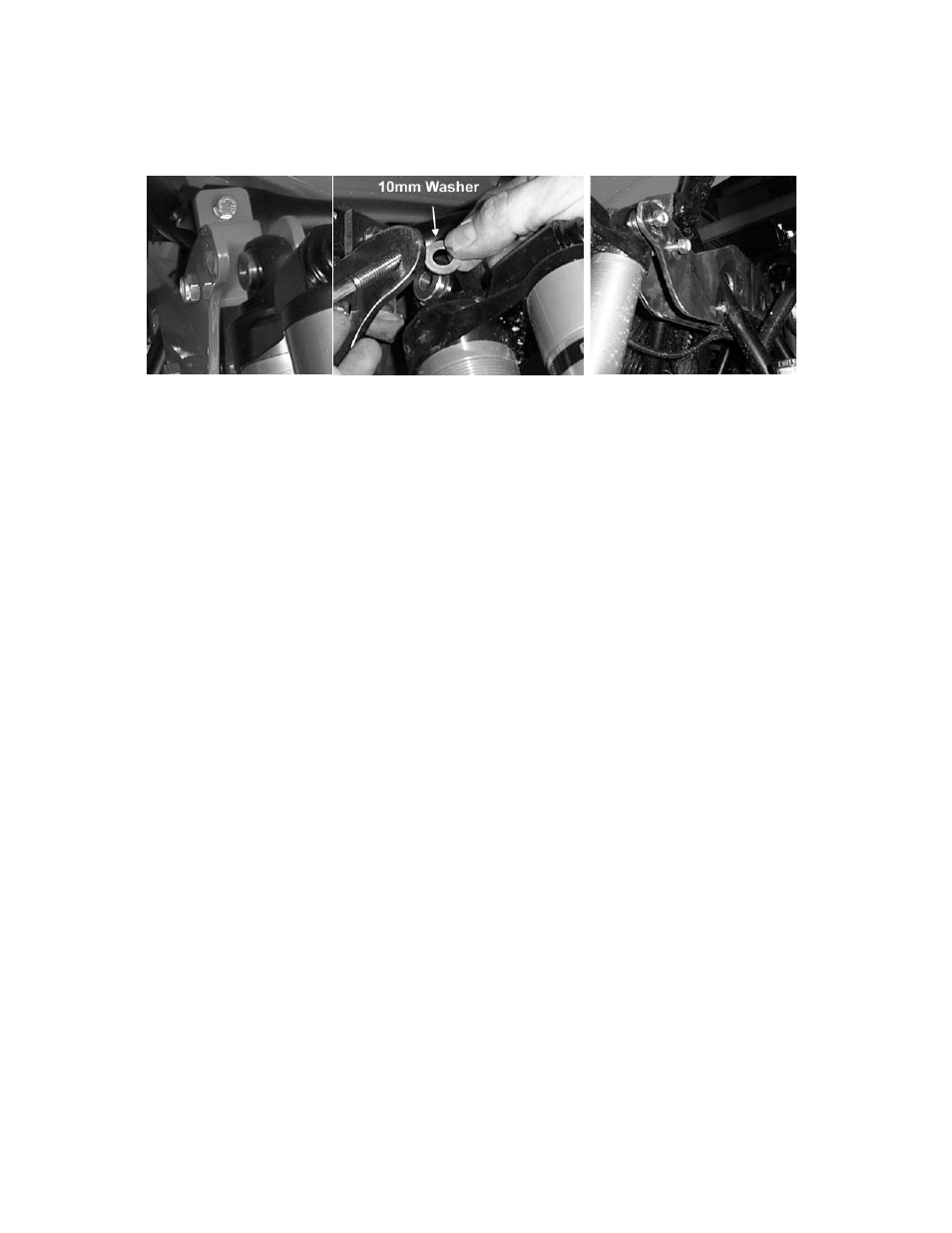

9. Connect the top of the shock to the lift plates, using the outside holes, by placing 10mm flat
washers on either sides of the shock eyelet and securing using the 10 x 65mm hex bolt and
10mm lock nut.
10. Tighten all nuts and bolts.
11. Repeat steps for the opposite side.
12. Place wheels back on the ATV, torque all lugs to factory specifications.
NOTE: Double check all bolts to verify they are tight. Loose bolts come off and can cause a
crash and serious injury or death.
