Page 60: Anel, Layer, Indow

Issue
10.04.A
XTnano – Version 10.04 – Operating Manual
EVS Broadcast Equipment SA – January 2011
52
Important
The control of a channel from the VDR Panel is concurrent to any other
controller that might be assigned to that channel: EVS Remote Panel or
external protocol. A command sent from the VDR Panel to a channel will
overwrite whatever the channel was doing at that time.

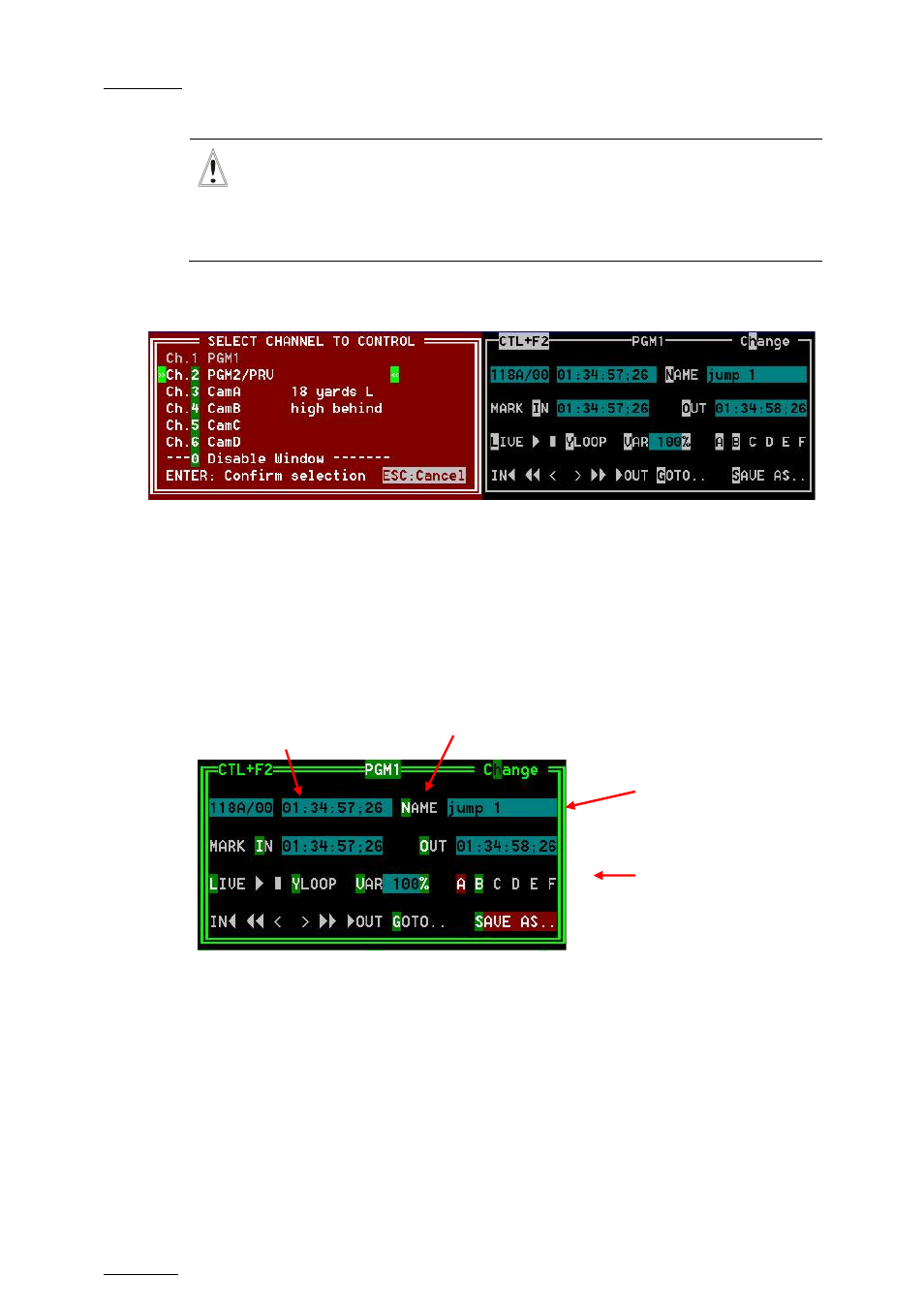

The name of the channel currently assigned to each window is displayed on the
top of each of them. To assign a new channel to this window, press ALT + H. A
new window appears on the other side to allow the selection of a new channel.
Use the ↑/↓ arrow keys to select the channel and press ENTER, or directly press
ALT + the number of the channel as highlighted in green. The Play channels
already assigned appear in grey and can not be selected. Select “0 – Disable
Window” if you don’t want to assign any channel to the window. Depending
whether a Play or Record channel is assigned to the VDR Panel window, its
content is automatically updated.
8.3.3 VDR
P
ANEL
–
P
LAYER
W
INDOW
H
OW TO
L
OAD A
R
ECORD
T
RAIN
Press ALT + L to go in LIVE mode (or click on the LIVE function), then press ALT
+ the letter of the desired record train (A/B/C/D/E/F), or click on it. The letters
corresponding to the available record trains are highlighted in green, and the
letter of the current record train in red.
ID of the current
element (clip or train)
Current timecode
Name of the
current
List of available
camera angles
(green) and
selected camera
angle (red)
