XTnano – Version 10.04 – Operating Manual

EVS Broadcast Equipment SA – January 2011

Issue

10.04.A


21

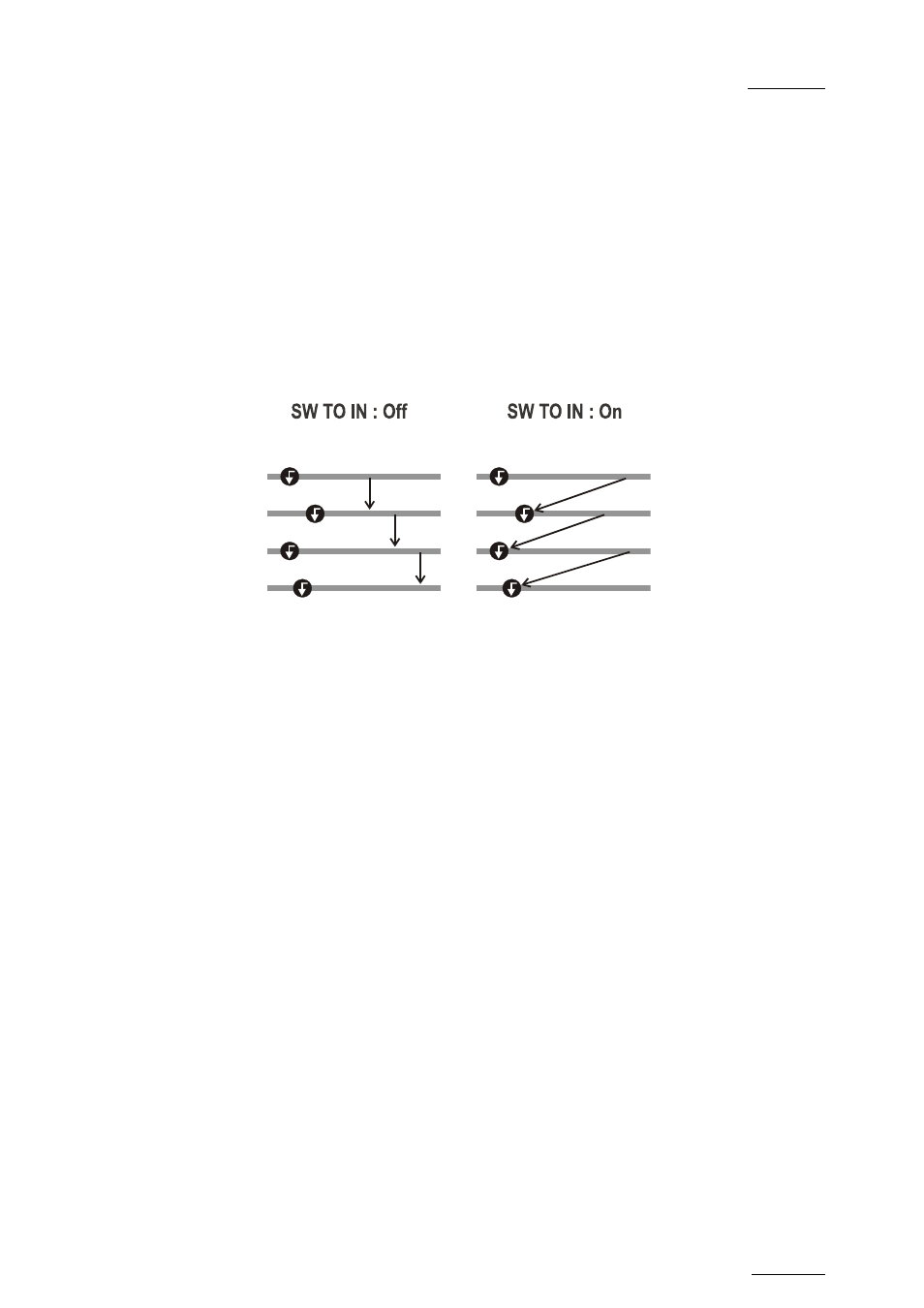

5.4 SYNCHRONIZATION MODE (SWITCH TO

IN)

If the synchronization mode is OFF, a request for camera change will produce a
jump at the same timecode on the requested camera. This mode allows
synchronous change of camera angle.

If the synchronization mode is ON, a request for a camera change (by pressing

CAM A, CAM B, or CAM C in the Multicam menu) will lead to a jump to a
predefined CUE IN point.

Cue In1

Clip B

Clip A

Clip C

Clip D

Cue In2

Cue In3

Cue In4

Cue In1

Cue In2

Cue In3

Cue In4


If a CUE IN point has not been previously defined, Multicam acts as in Sw to In
OFF mode (even if Sw to In ON is shown) because the system has no reference to
jump to.
