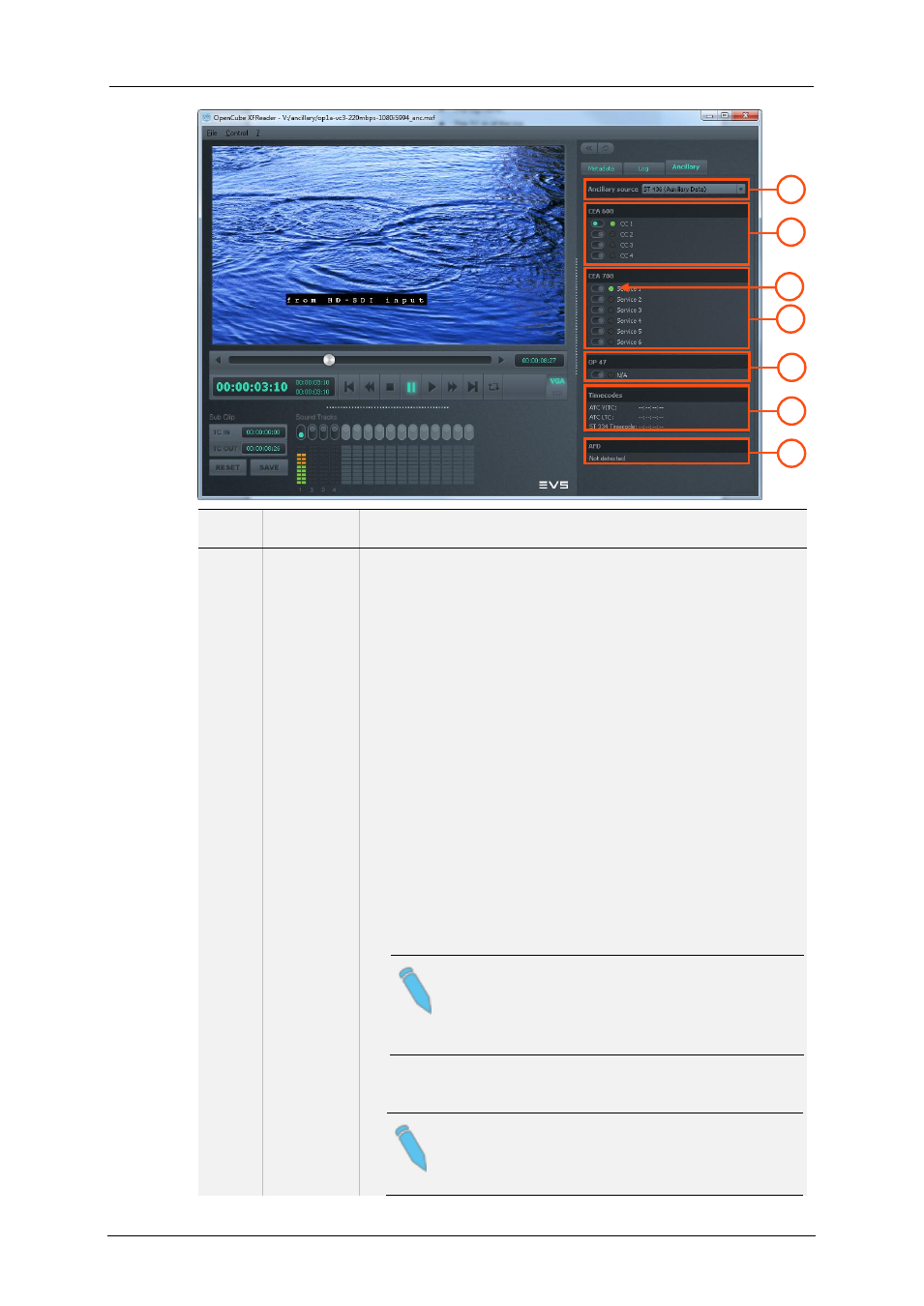

Part Name Description
1 Ancillary
source This drop-down box allows you to select the ancillary source
available in the file. There are 5 values:

None: OpenCube XFReader does not use an ancillary
source.

ST 436: OpenCube XFReader uses the SMPTE ST 436
track available in the MXF file.

MPEG-2 User data: OpenCube XFReader uses:
o The ATSC A/53 available in the MPEG-2 video
essence as a closed caption source;
o The SMPTE ST 328 timecode available in the MPEG-
2 User data.

External: OpenCube XFReader supports the following
sidecar files:
o SCC: OpenCube XFReader handles the CEA608
present in a scc sidecar file.
o MCC: OpenCube XFReader handles the CEA708 and
CEA608 present in a mcc sidecar file.
Note
OpenCube XFReader does not handle the line and
field number information available in MCC v2 file
format.

VBI: The VBI present in the essence (D10) is sent to the
SDI.
Note
OpenCube XFReader reloads the file when the
ancillary source is changed.
