190-00709-01 Rev. A Garmin G1000 Pilot’s Guide for the Socata TBM 850 43
SYSTEM OVERVIEW
SY
STEM
O
VER
VIEW
FLIGHT
INSTRUMENTS
EAS
AUDIO P
ANEL
& CNS
FLIGHT
MANA
GEMENT
HAZARD
AV
OID
ANCE
AFCS
ADDITIONAL
FEA
TURES
APPENDICES
INDEX
MANUAL ADjUSTMENT
NOTE: The avionics dimming knob may also be used to adjust backlighting. Refer to the AFM for details.
NOTE: In normal mode, backlighting can only be adjusted from PFD1 or PFD2. In reversionary mode, it can
also be adjusted from the MFD.
NOTE: No other window can be displayed on the PFD while the PFD Setup Menu Window is displayed.
Backlighting may also be adjusted manually for all of the displays and the associated bezels. The audio panel
key backlighting is directly tied to the on-side PFD key backlighting setting.
To adjust display backlighting manually:
1) Press the MENU Key on the PFD to display the PFD Setup Menu Window. ‘AUTO’ becomes highlighted to the
right of ‘PFD1 DSPL’.

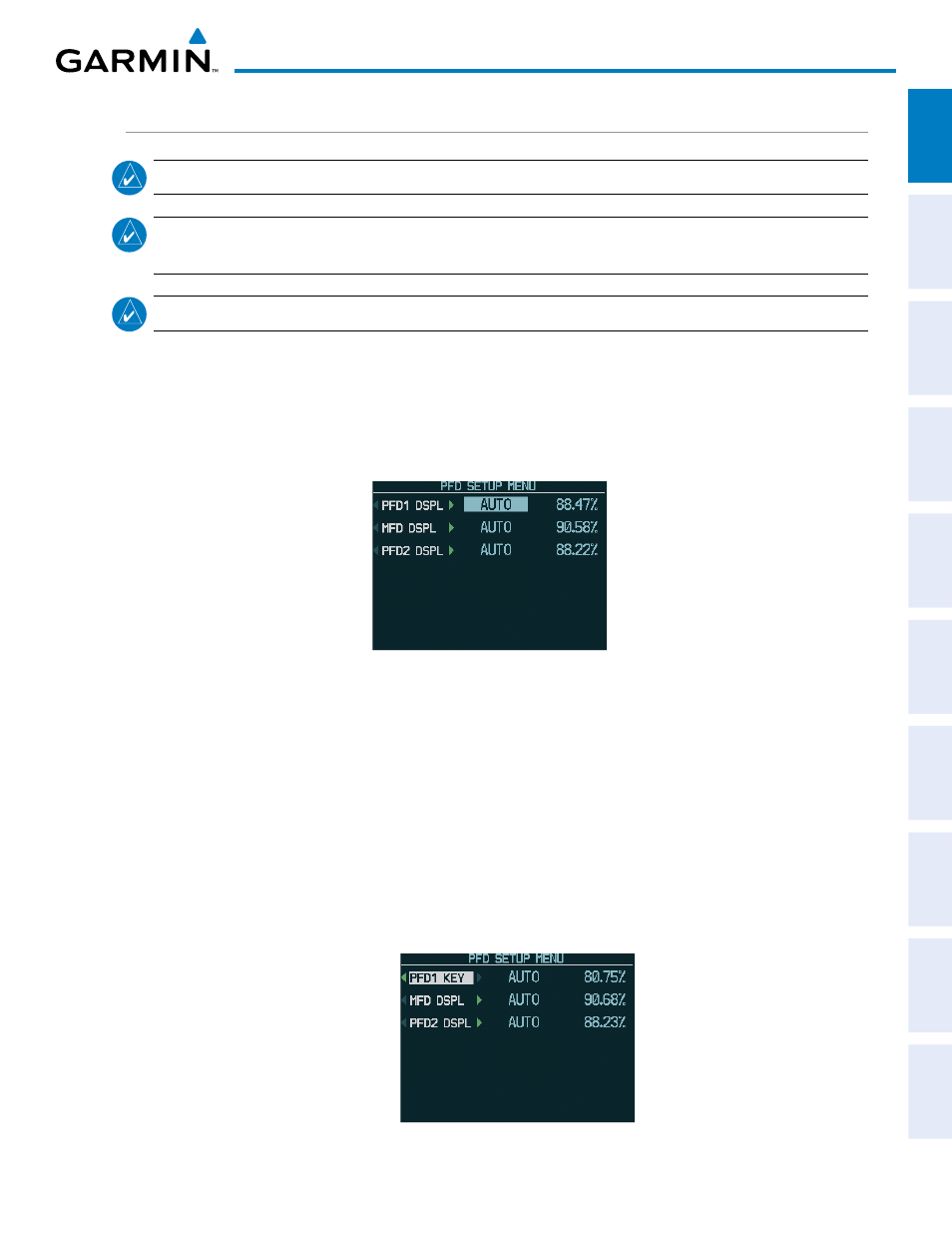

Figure 1-35 Manual Display Backlighting Adjustment
2) Turn the small FMS Knob to display the selection box. Turn the FMS Knob to select ‘MANUAL’, then press the
ENT Key. The intensity value becomes highlighted.
3) Turn the small FMS Knob to select the desired backlighting, then press the ENT Key.
4) Turn the large FMS Knob to highlight ‘AUTO’ to the right of ‘MFD DSPL’ or ‘PFD2 DSPL’, respectively, and
repeat steps 2 and 3.
5) Press the CLR or MENU Key to remove the PFD Setup Menu Window from the display.
To adjust key backlighting manually:
1) Press the MENU Key on the PFD to display the PFD Setup Menu Window. ‘AUTO’ becomes highlighted to the
right of ‘PFD1 DSPL’.
Figure 1-36 Manual Key Lighting Adjustment
