Z87 Extreme4
2 3
English

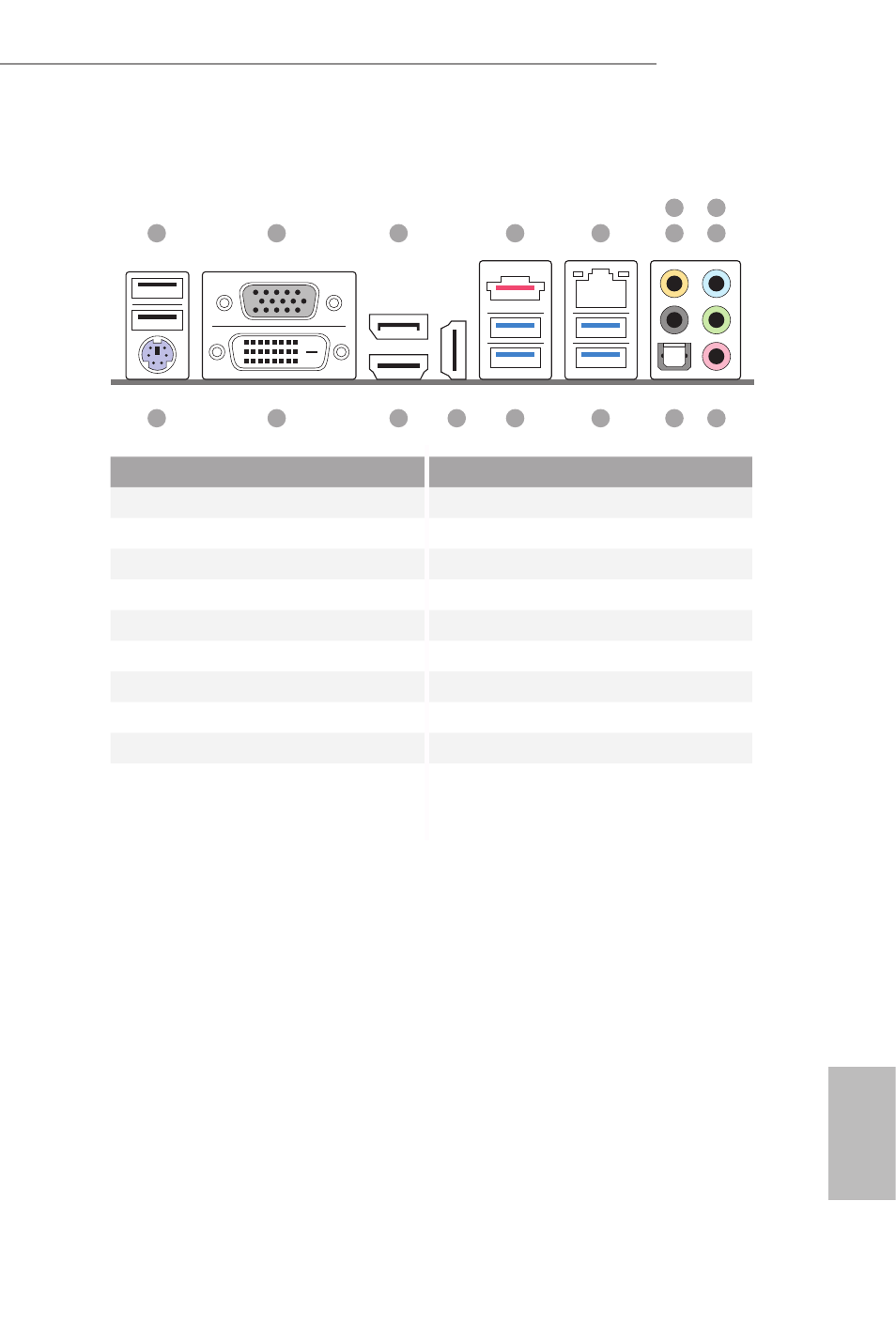

I/O Panel
No. Description No. Description
1 USB 2.0 Ports (USB01) 10 Microphone (Pink)
2 VGA Port 11 Optical SPDIF Out Port
3 Display Port 12 USB 3.0 Ports (USB3_23)
4 eSATA Connector*** 13 USB 3.0 Ports (USB3_01)
5 LAN RJ-45 Port* 14 HDMI-In Port
6 Central / Bass (Orange) 15 HDMI-Out Port
7 Rear Speaker (Black) 16 DVI-D Port
8 Line In (Light Blue) 17 PS/2 Mouse/Keyboard Port
9 Front Speaker (Lime)**
10 11 12 13 14 15 16 17
1 2 3 7 5 4
6
9
8
