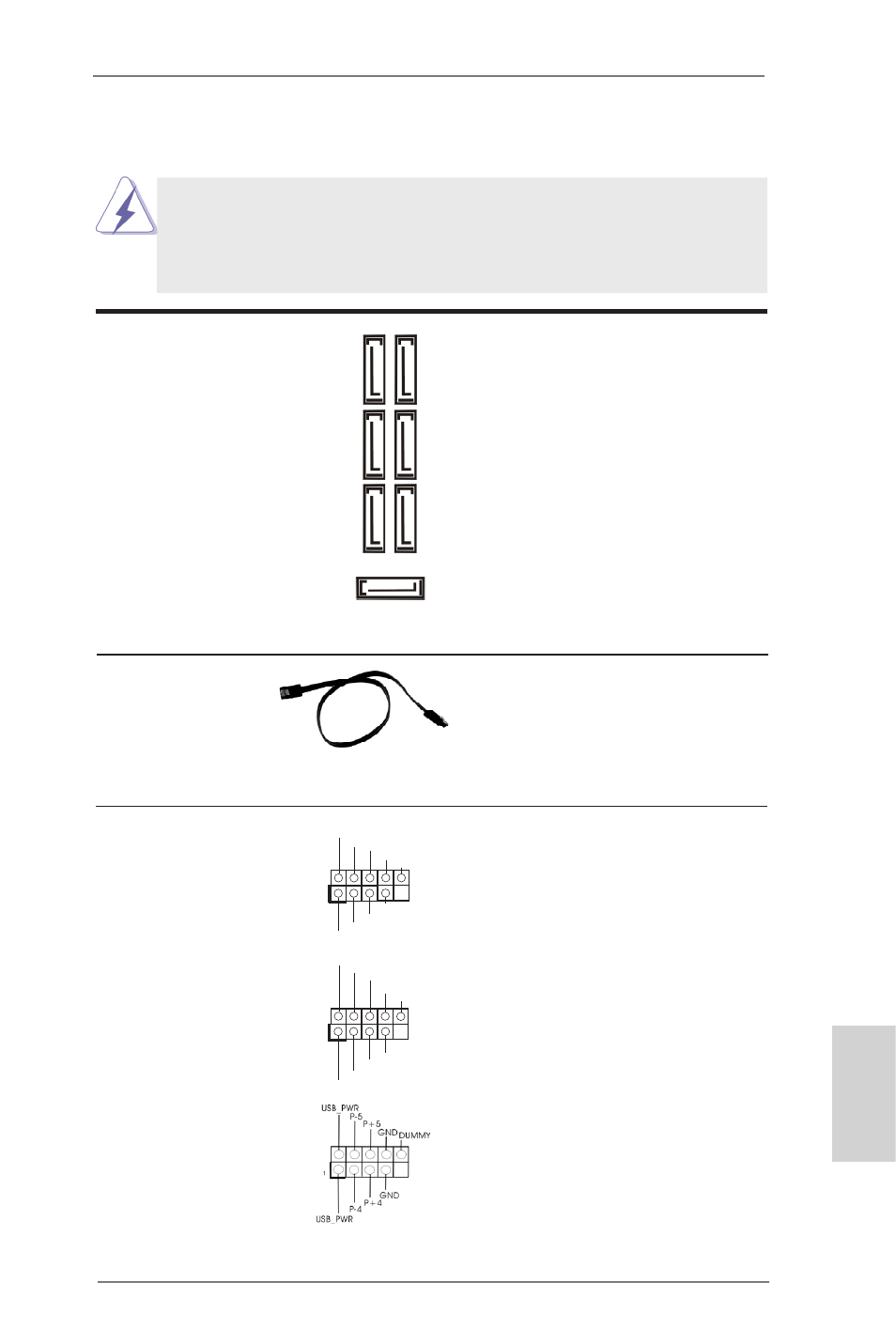

2.7 Onboard Headers and Connectors
Onboard headers and connectors are NOT jumpers. Do NOT place
jumper caps over these headers and connectors. Placing jumper caps
over the headers and connectors will cause permanent damage of the
motherboard!
Serial ATA3 Connectors These seven Serial ATA3
(SATA3_1_2: see p.2, No. 12) (SATA3) connectors support
(SATA3_3_4: see p.2, No. 13) SATA data cables for internal
(SATA3_7_8: see p.2, No. 14) storage devices. The current
(SATA3_5: see p.2, No. 15) SATA3 interface allows up to
6.0 Gb/s data transfer rate.
Serial ATA (SATA) Either end of the SATA data
Data Cable cable can be connected to the
(Optional) SATA3 hard disk or the SATA3
connector on this motherboard.
USB 2.0 Headers Besides two default USB 2.0
(9-pin USB_0_1) ports on the I/O panel, there
(see p.2 No. 26) are three USB 2.0 headers on
this motherboard. Each USB 2.0
header can support two USB
(9-pin USB_2_3) 2.0 ports.
(see p.2 No. 27)
(9-pin USB_4_5)
(see p.2 No. 28)
SA
TA3_7 SA
TA3_3 SA
TA3_1
SA
TA3_8 SA
TA3_4 SA
TA3_2
SATA3_5
1
USB_PWR
P-2
GND
DUMMY
USB_PWR
P+2
GND
P-3
P+3
1
USB_PWR
P-1
P+1
USB_PWR
P-0
P+0
GND
GND
DUMMY
