Z87 Pro4

3

English

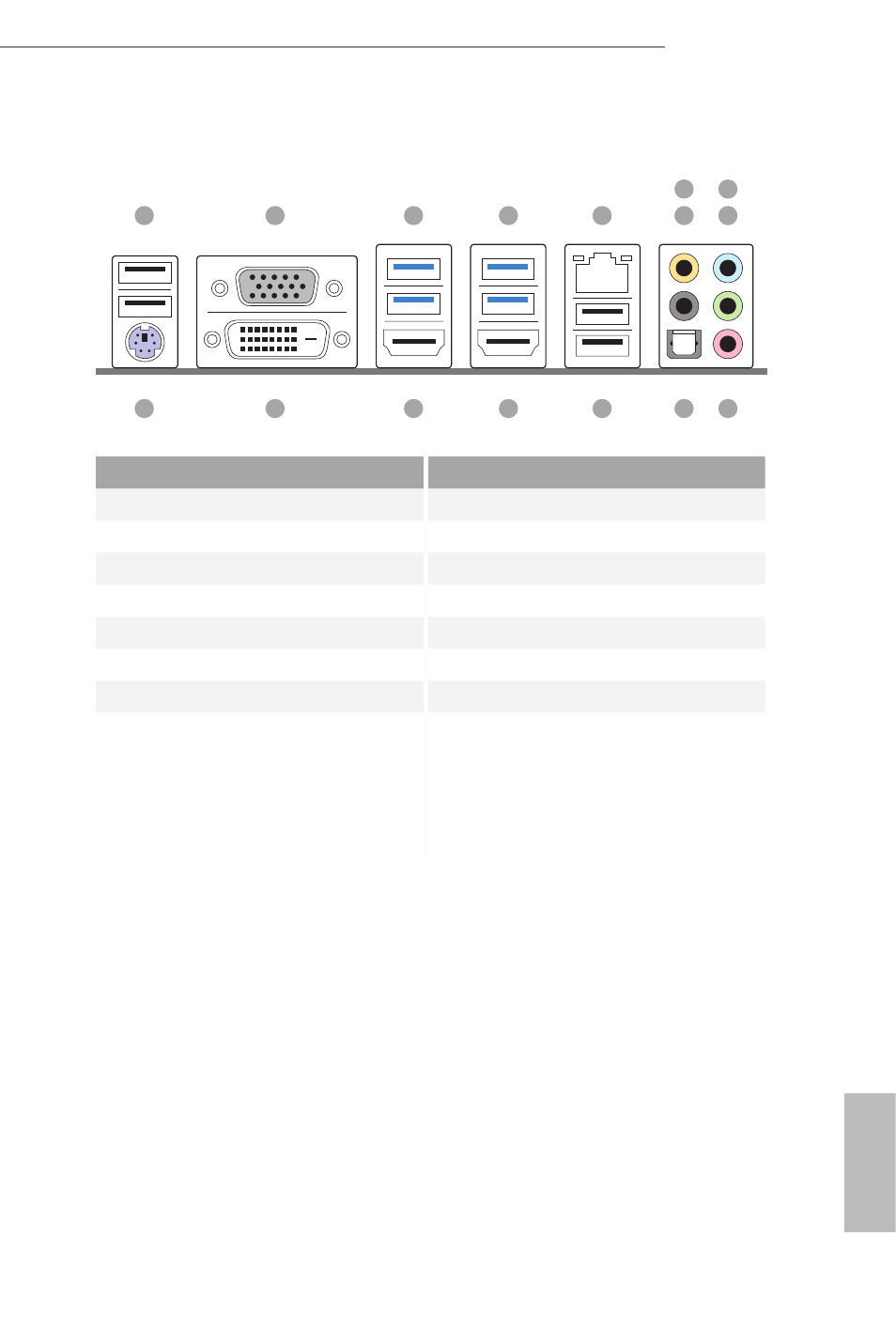

I/O Panel

No. Description

No. Description

1

USB 2.0 Ports (USB01)

9

Front Speaker (Lime)**

2

D-Sub Port

10

Microphone (Pink)

3

USB 3.0 Ports (USB3_01)

11

Optical SPDIF Out Port

4

USB 3.0 Ports (USB3_23)

12

USB 2.0 Ports (USB23)

5

LAN RJ-45 Port*

13

HDMI-In Port

6

Central / Bass (Orange)

14

HDMI-Out Port

7

Rear Speaker (Black)

15

DVI-D Port

8

Line In (Light Blue)

16

PS/2 Keyboard Port

10

11

12

13

14

15

16

1

2

3

7

5

4

6

9

8
