24

English

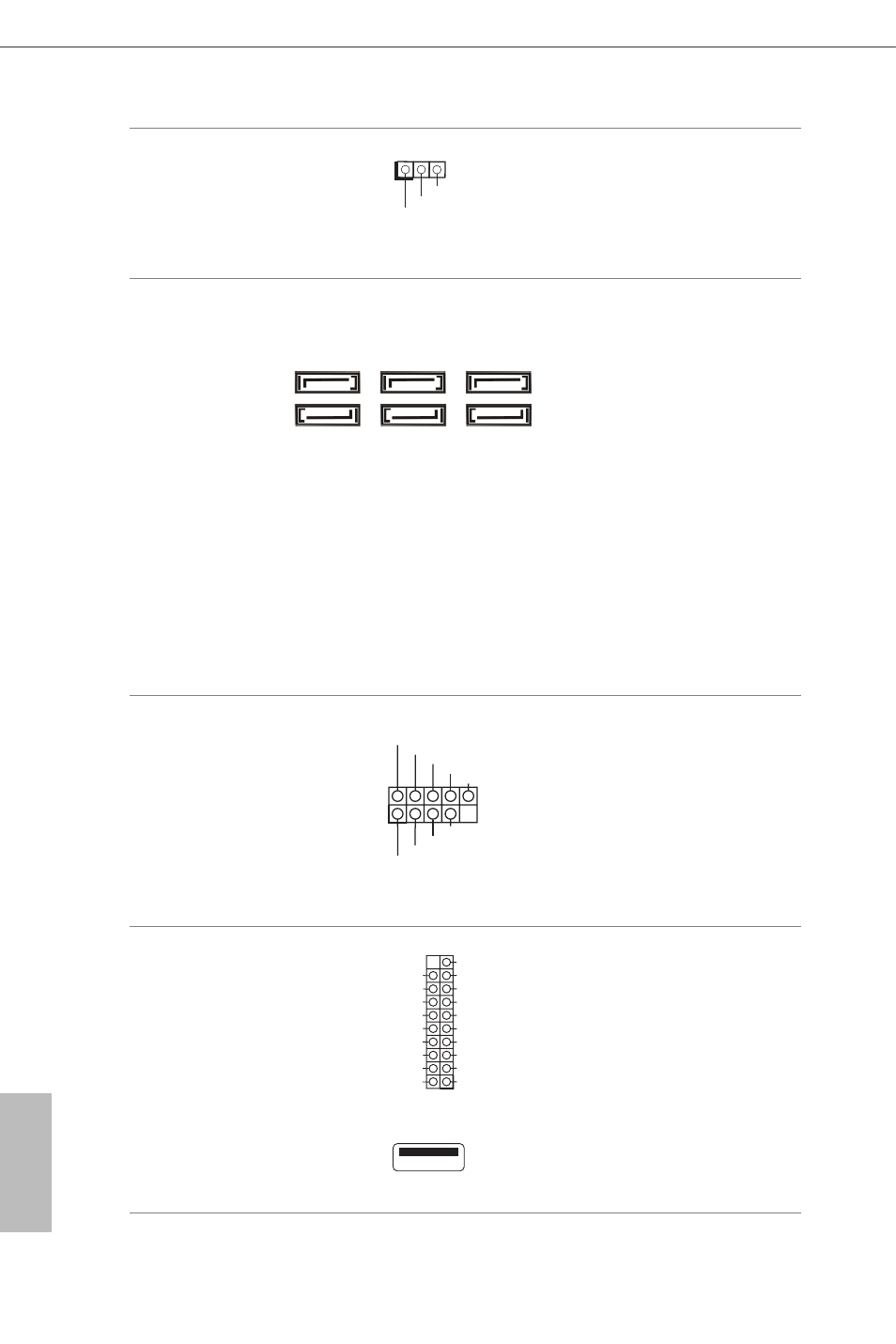

Power LED Header
(3-pin PLED1)
(see p.1, No. 17)

Please connect the chassis
power LED to this header
to indicate the system’s
power status.

Serial ATA3 Connectors
(SATA3_0:
see p.1, No. 11)
(SATA3_1:
see p.1, No. 20)
(SATA3_2:
see p.1, No. 12)
(SATA3_3:
see p.1, No. 15)
(SATA3_4:
see p.1, No. 13)
(SATA3_5:
see p.1, No. 14)

These six SATA3
connectors support SATA
data cables for internal
storage devices with up to
6.0 Gb/s data transfer rate.

USB 2.0 Headers
(9-pin USB4_5)
(see p.1, No. 21)
(9-pin USB6_7)
(see p.1, No. 22)

Besides four USB 2.0 ports
on the I/O panel, there
are two headers on this
motherboard. Each USB
2.0 header can support
two ports.

USB 3.0 Header
(19-pin USB3_4_5)
(see p.1, No. 9)
(19-pin USB3_6_7)
(see p.1, No. 8)

(USB3_8)
(see p.1, No. 10)

Besides four USB 3.0 ports
on the I/O panel, there
are two headers and one
port on this motherboard.
Each USB 3.0 header can
support two ports.

1

PLED+

PLED+

PLED-

DUMMY

GND

GND

P+

P-

USB_PWR

P+

P-

USB_PWR

1

1

IntA_PB_D+

Dummy

IntA_PB_D-

GND

IntA_PB_SSTX+

GND

IntA_PB_SSTX-

IntA_PB_SSRX+

IntA_PB_SSRX-

Vbus

Vbus

Vbus

IntA_PA_SSRX-

IntA_PA_SSRX+

GND

IntA_PA_SSTX-

IntA_PA_SSTX+

GND

IntA_PA_D-

IntA_PA_D+

SATA3_4

SATA3_0 SATA3_2

SATA3_5

SATA3_1 SATA3_3
