VRO 300M Program Operations
33
Explode

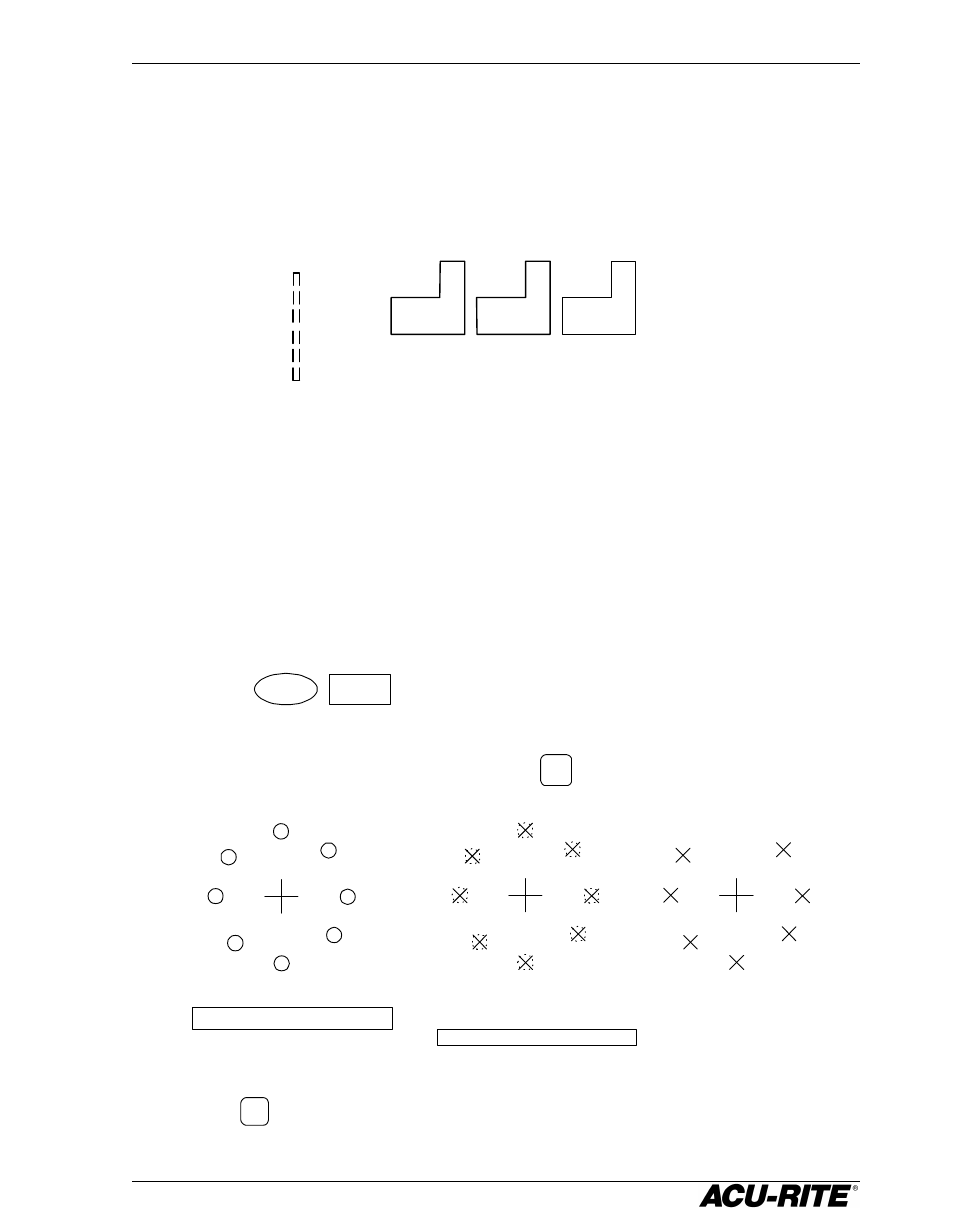

Any repetitive type of step causes the VRO 300M to create copies of one or
more simpler steps. For example, the Repeat step below creates 2 copies of
the 6-line contour, yet it takes only one step. Similarly, a single Bolt Circle
step causes the readout to create several holes.
Repetitive type steps include Repeat, Mirror, Row of Holes, Hole Frame, Hole
Array, and Bolt Circle.
The Explode function will take one of these repetitive type steps and replace it
with the individual steps. This is useful when you need to change or
eliminate one of the individual steps.
For example, to program an eight-hole bolt circle without the third hole:
1.
Program the eight-hole bolt circle.
2.
Highlight the Bolt Circle step.
3.
Press
MORE EXPLODE . The Bolt Circle step is removed and eight
Position steps are inserted in its place.
4.
Move to the third hole and press the CLEAR key.
001
002
003
004
005
006
007 MILL
MILL
MILL
MILL
MILL
MILL
REPEAT (001-006)
002 BOLT CIRCLE
Explode step 002 to get 8
Position steps. Highlight
the third hole and press
the key.
CLEAR
002
003
004
005
006
007
008
009 POSITION
POSITION
POSITION
POSITION
POSITION
POSITION
POSITION
POSITION 002
003
004
005
006
007
008 POSITION
POSITION
POSITION
POSITION
POSITION
POSITION
POSITION
