Program Operations VRO 300M
32

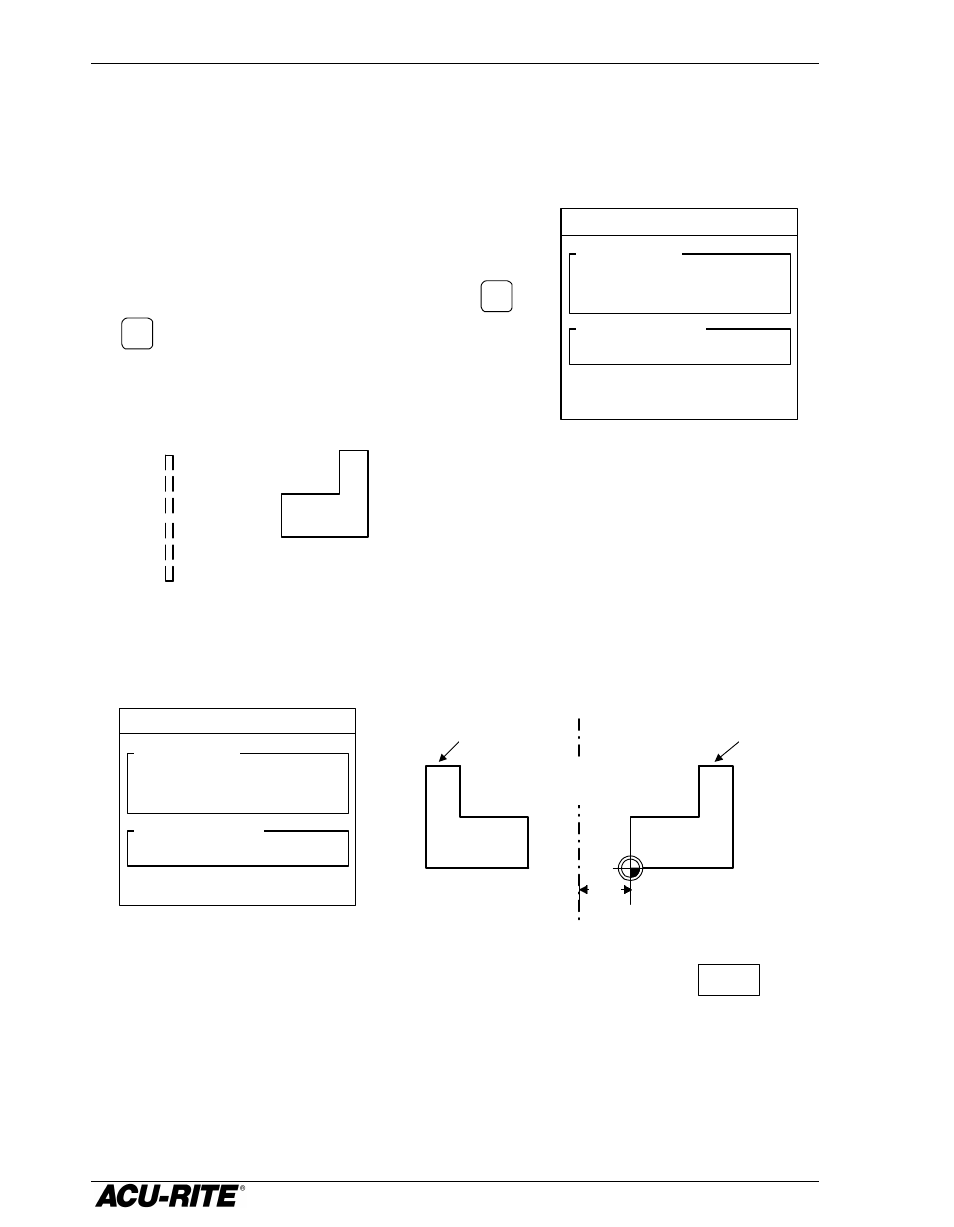

Mirror Images
You can make a mirror image of any section of you program using this step.
S
TEP
R
ANGE
—enter the numbers of the first and
last steps that you want to mirror.
M
IRROR
A
BOUT
—enter the position of the “mirror
line”, called the axis of reflection. Use the X
or Y key to choose the direction, and enter
the location of the axis.
Example:
To mirror the above program about a vertical line 1 inch on the negative side
of absolute zero, fill in the Mirror form like this:
Because the Mirror form hides the program list, you can use the SHOW STEPS
softkey to toggle between the form and the list of steps.
MIRROR
STEP RANGE
FIRST
LAST
MIRROR ABOUT
ABS X
1.00
Original Left-hand part
Axis of
reflection
MIRROR
STEP RANGE
FIRST
LAST
001
006
MIRROR ABOUT
ABS X -1.00
001
002
003
004
005
006 MILL
MILL
MILL
MILL
MILL
MILL
