Program Operations VRO 300M
28

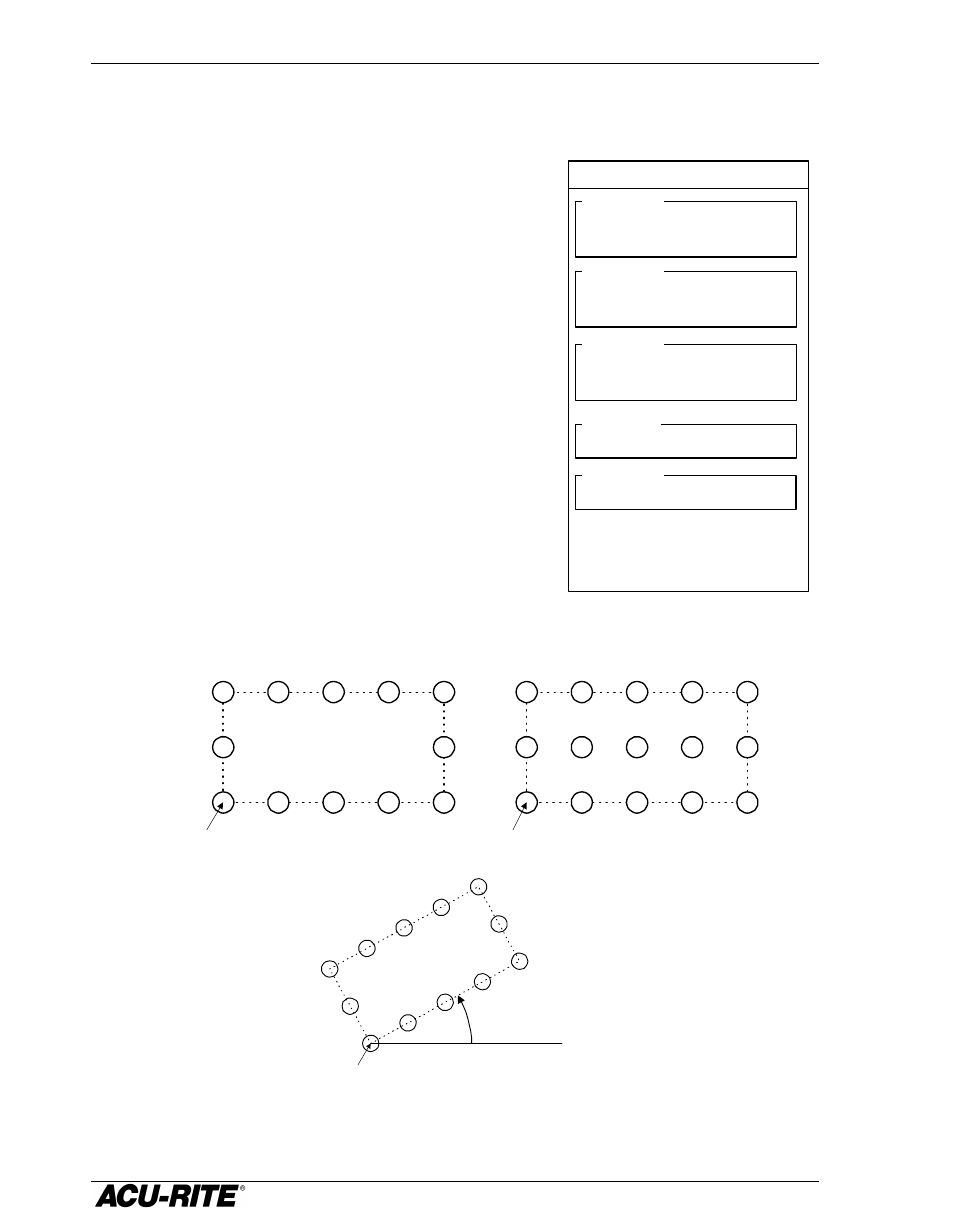

Hole Frame and Hole Array
The frame and the array hole patterns require
the same information. Arrays have holes in the
middle of the rectangular pattern, while frames
have holes only on the outside edge of the
rectangle.
H OLES —enter the number of holes in each
direction.
C ORNER —enter the center of the lower left hole.
S
PACING —enter the distance between hole centers.
A
NGLE —you can tilt the hole pattern; measured
from the 3 o’clock position.
HOLE ARRAY
HOLES
X
Y
DEPTH
Z ABS
ANGLE
0.0000
SPACING
X
Y
CORNER
X
Y
ABS
ABS
Corner
Frame
Corner
Array
ANGLE
Corner Tilted
