INTRODUCTION
DRO 200E
3
Displays
At the top of the display window is a row of indicators. These tell you the current state
of the readout.
EDM MM INCR ABS ZERO SET C/L
Appears
when
setting an
absolute zero.
Appears when
you are setting a
preset or an
absolute zero.
Tells you when the
centerline function
is active.
Appears when EDM
view is displaying
cut depth informa-
tion.
Appears when the
display is in metric,
dark when the display
is in inches.
These tell you if the
position display is
incremental or
absolute. They also
indicate the type of
preset.

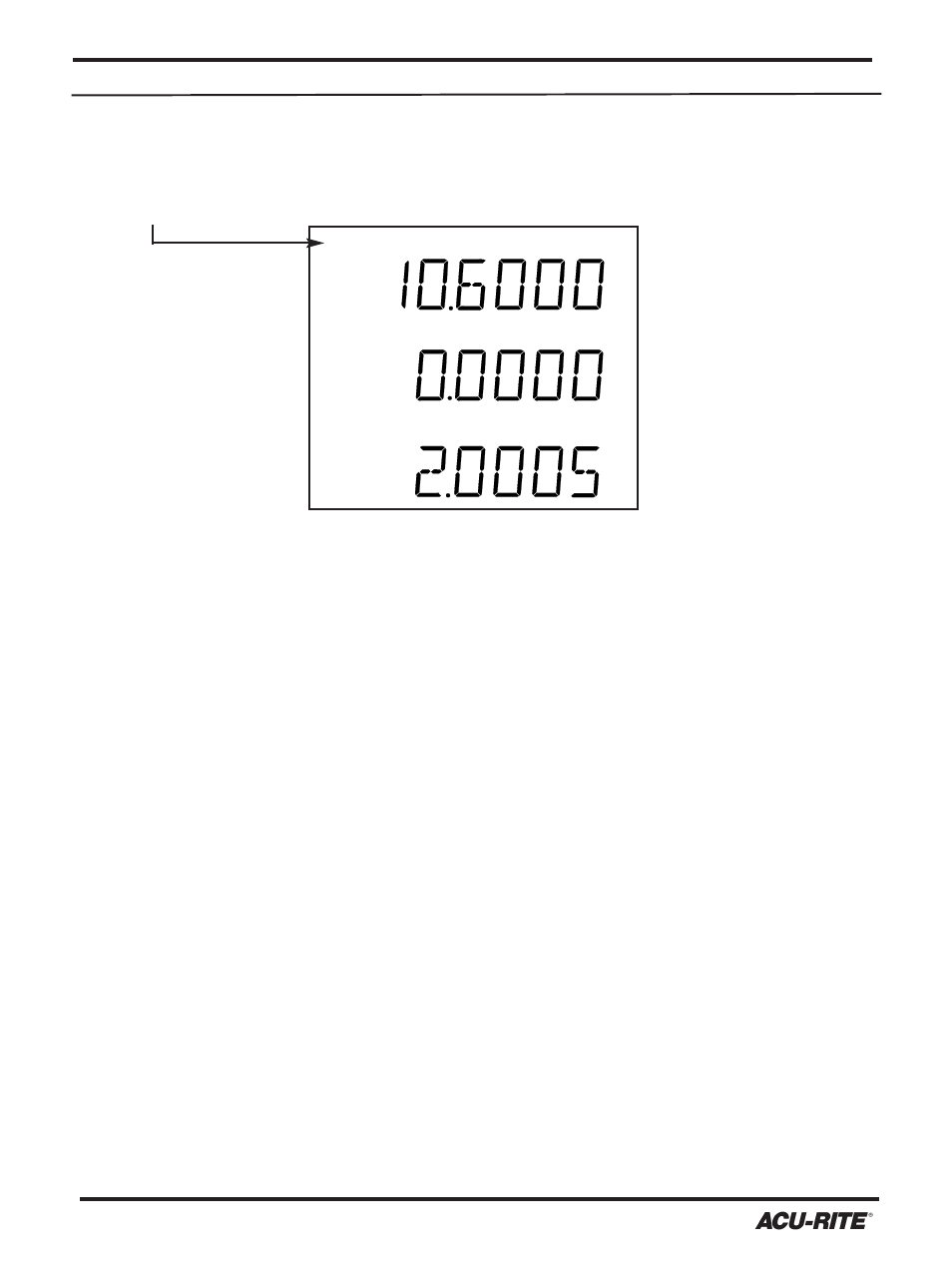

In addition to the lighted indicators along the top of the display, the top axis display
will scroll longer messages to assist you with some of the procedures.
In this manual, the text representing key presses, indicators and display text are
shown in their own individual font styles so they are more easily distinguished from
each other and the rest of the manual text.
Key Presses:
EYS
INDICATORS
“DISPLAY TEXT”
ZERO SET C/L
EDM MM INCR ABS
