SECTION 11—OPTIONS
Part No. 1110558
49
Tracer
®
IV
SECTION 11—OPTIONS
ƽ WARNING
After any adjustments, repair or service and before use, make sure all attaching
hardware is tightened securely. Otherwise injury or damage may occur.
Installing Carrying Pocket
NOTE: For this procedure, refer to FIGURE 11.1.
1. Determine the height required for the carrying pocket.
2. Remove the two back upholstery screws and two washers that correspond to the
desired height.
3. Center pouch against back canes, determine and mark location for mounting holes on
carrying pouch straps.
4. Punch holes in straps.
5. Fold excess strap ends under, mark mounting holes in second thickness of strap and
punch mounting holes.
6. Fold strap ends under so the upholstery screw can be inserted through two
thicknesses of strap.
7. Position the carrying pocket on the wheelchair frame.
8. Secure the carrying pocket to the wheelchair frame with the two washers and two back
upholstery screws.

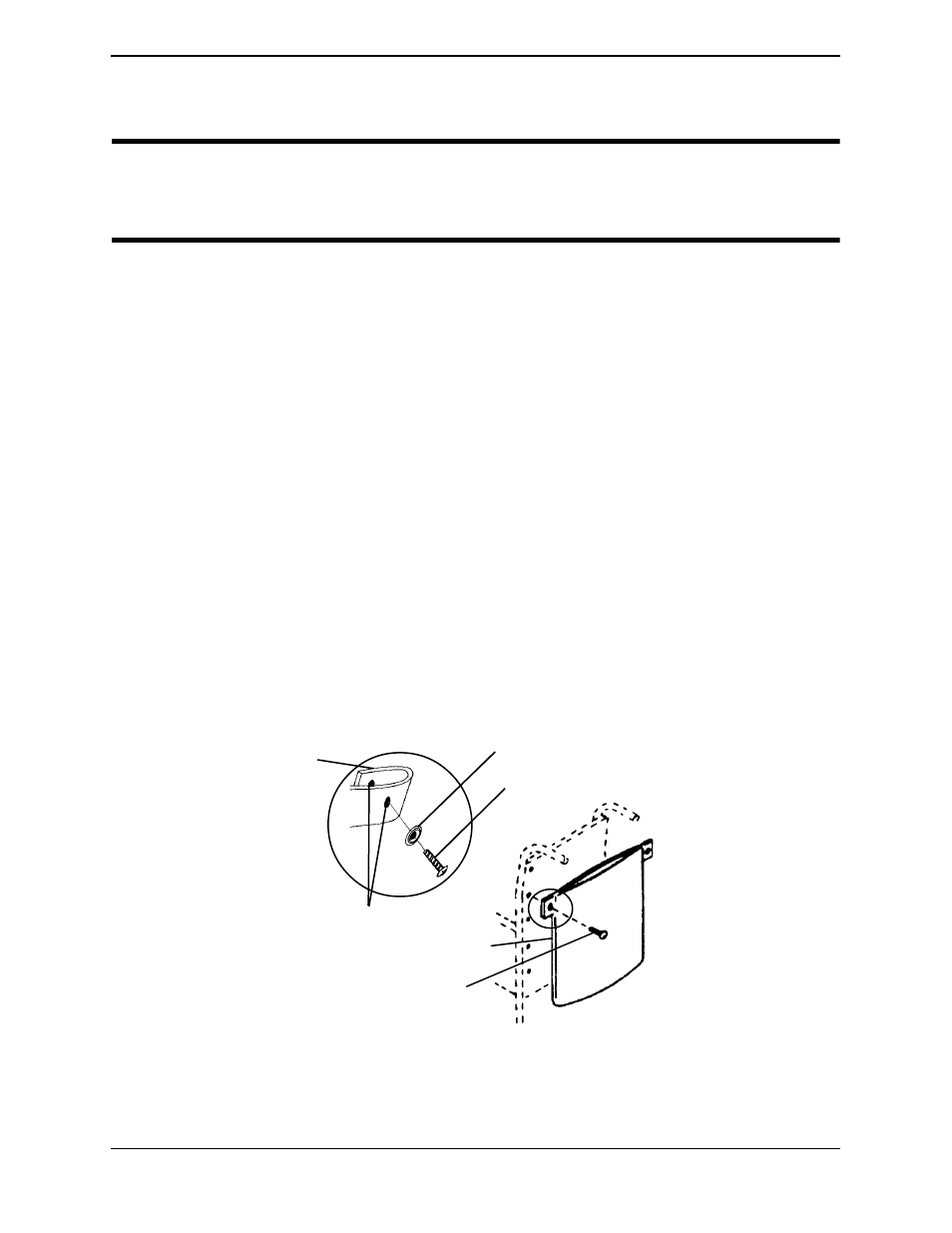

FIGURE 11.1 Installing Carrying Pocket
Punched Hole
Back Upholstery Screw
Carrying Pocket
Upholstery Screw
Washer
Strap
