SECTION 9—ANTI-TIPPERS/WHEEL LOCKS
Part No. 1110558 45 Tracer ® IV

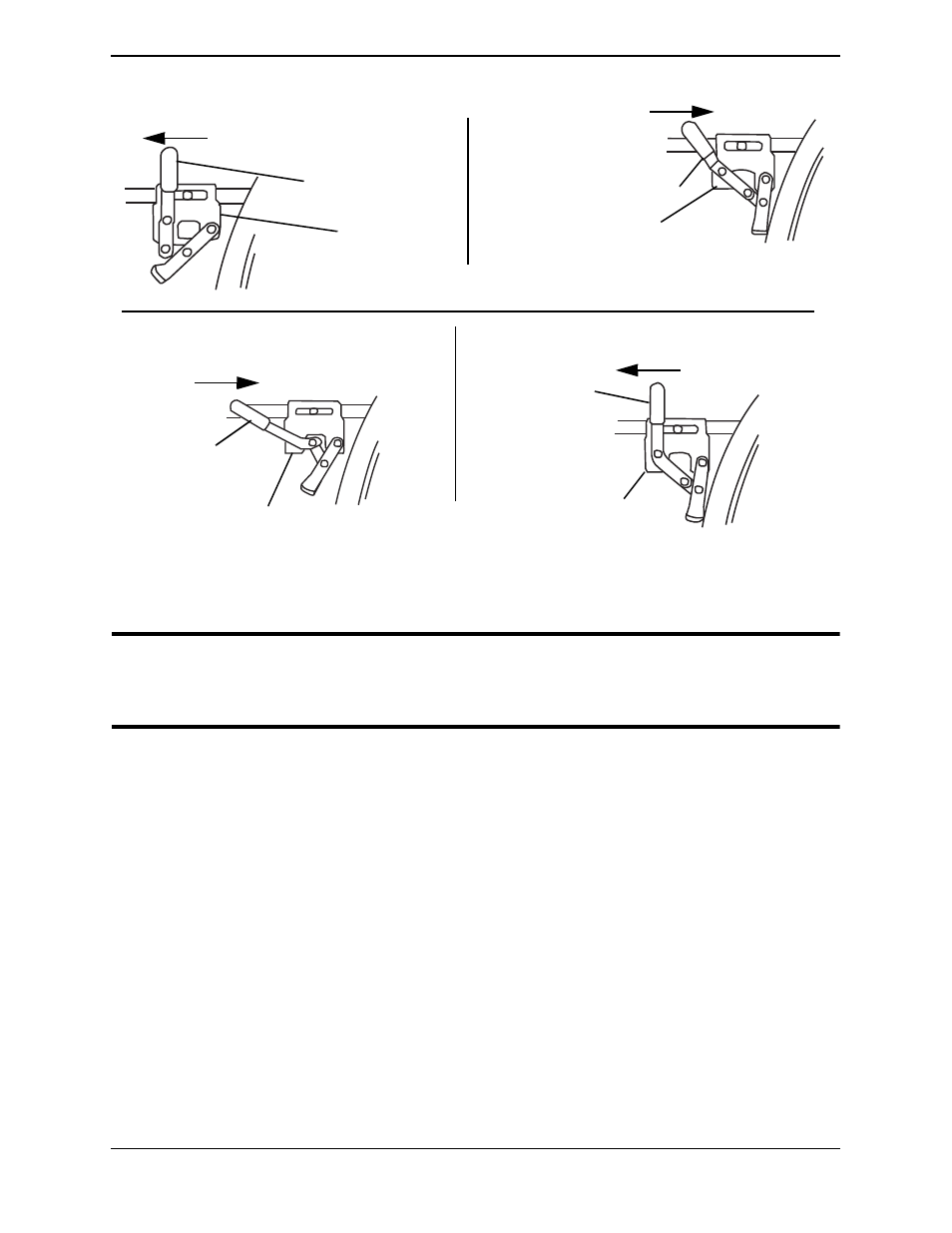

FIGURE 9.3 Using Patient Operated Wheel Locks
Adjusting Patient Operated Wheel Locks
ƽ WARNING
DO NOT attempt to stop a moving wheelchair with the wheel locks. Wheel locks
are not brakes.
NOTE: For this procedure, refer to FIGURE 9.4 on page 46.
NOTE: If wheels are pneumatic, before adjusting the wheel lock assemblies, ensure that the tires
are inflated to the recommended psi on the side wall of tire.
1. Ensure the wheel lock is in the open (unlocked) position.
2. Loosen the bolt and locknut that secure the wheel lock assembly to the wheelchair
frame.
3. Reposition the wheel lock so that when engaged, the wheel lock shoe embeds the tire
1/8-inch (3/16-inch for pneumatic tires) and holds the wheelchair.
4. Securely tighten the bolt and locknut securing the wheel lock to the wheelchair frame.
5. Engage the wheel lock.
6. Measure the distance the wheel lock is embedded into the tire as shown in Detail "A".
NOTE: Any wheel lock adjustment should embed the wheel lock shoe at least 1/8-inch (3/16-inch
for pneumatic tires) into the tire when engaged.
Wheel Lock
Push-To-Lock
Pull-To-Lock
Unlocked
Position
Locked Position
Wheel
Lock
Push wheel lock handle away from
the tire to engage wheel lock
Pull wheel lock handle
toward the tire to
disengage wheel lock
Pull wheel lock handle toward the
tire to engage wheel lock
Push wheel lock handle away from
the tire to disengage wheel lock
Unlocked
Position
Wheel Lock
Wheel Lock
Locked Position
