Removing armrest, Installing armrest – Activeforever Invacare Tracer IV Wheelchair User Manual
Page 33
SECTION 5—ARMS
Part No. 1110558
33
Tracer
®
IV
Removing Armrest
1. Push down on armrest to ensure it is fully seated in front and rear sockets.
NOTE: STEP 1 prevents the release buttons from hanging up on the sockets during removal.
2. Unlock the rear armrest by rotating the armrest release lever towards the inside of the
wheelchair.
3. Press in the armrest release button at the front of the armrest.
4. While pressing in the armrest release button, remove the armrest from the arm sockets
by pulling straight up.
Installing Armrest
NOTE: Rear armrest release lever MUST be in
the unlocked position when installing the
armrest.
1. Position the armrest just above the
front and rear arm sockets.
2. Push arm down evenly at the front and
rear until the front armrest release
button snaps into the front arm socket.
3. Lock rear armrest by turning the
armrest release lever towards the
outside of the wheelchair.
4. Ensure armrest is locked securely in the
arm sockets by gently lifting up. If not
locked, repeat STEPS 1-3.

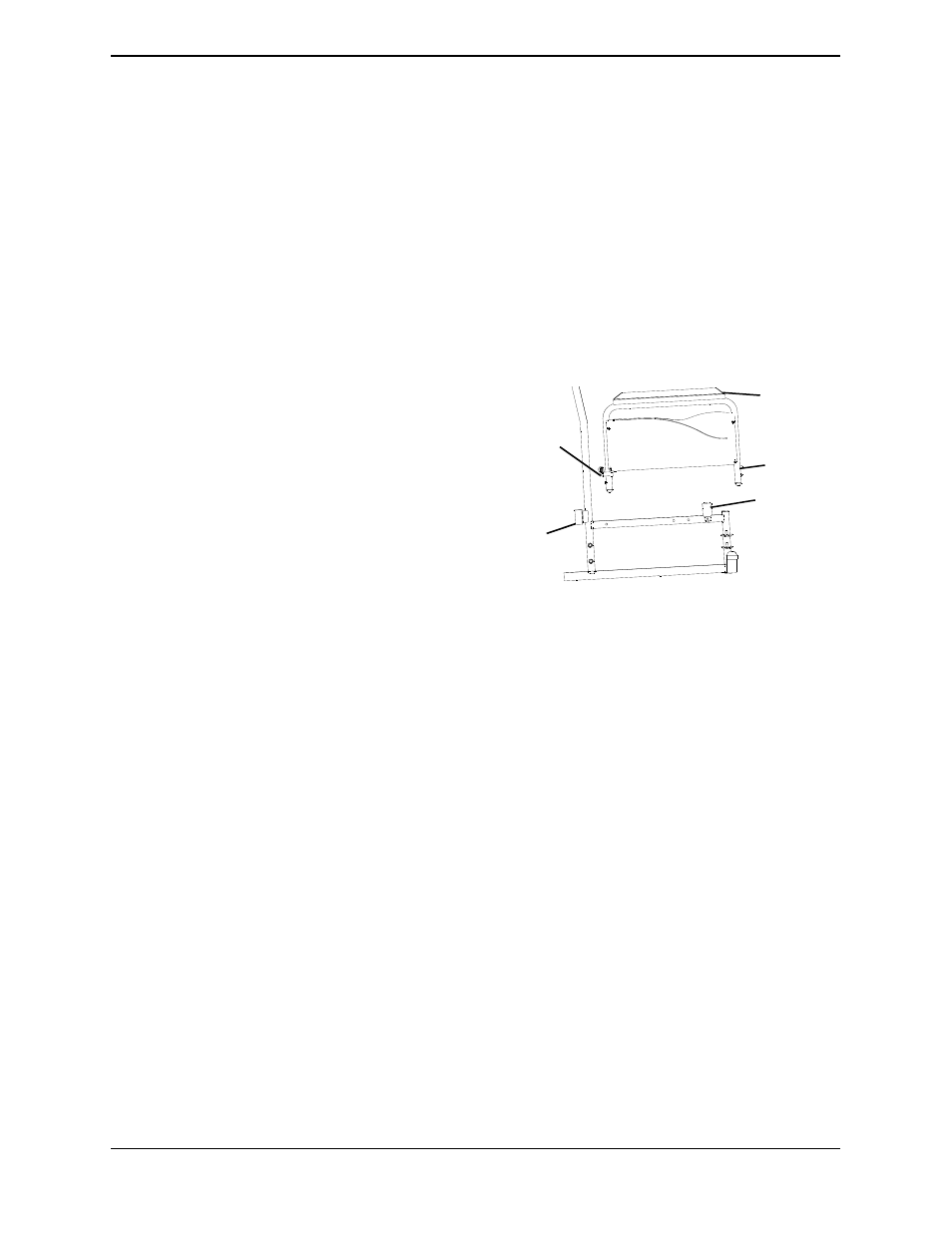

FIGURE 5.2 Removing/Installing Armrests
Armrest
Release
Button
Armrest
Release
Handle
Armrest
Rear
Arm
Socket
Front Arm
Socket
