SECTION 4—FRONT RIGGINGS
Part No. 1110558
29
Tracer
®
IV
1. To raise the elevating legrest, the
assistant should hold the support tube
and raise the elevating legrest until the
desired height is obtained.
2. To lower the elevating legrest, perform
the following:
A. Support user leg with one hand.
B. Push release lever downward with
other hand.
C. Gently, lower user leg down and
rest against the legrest.

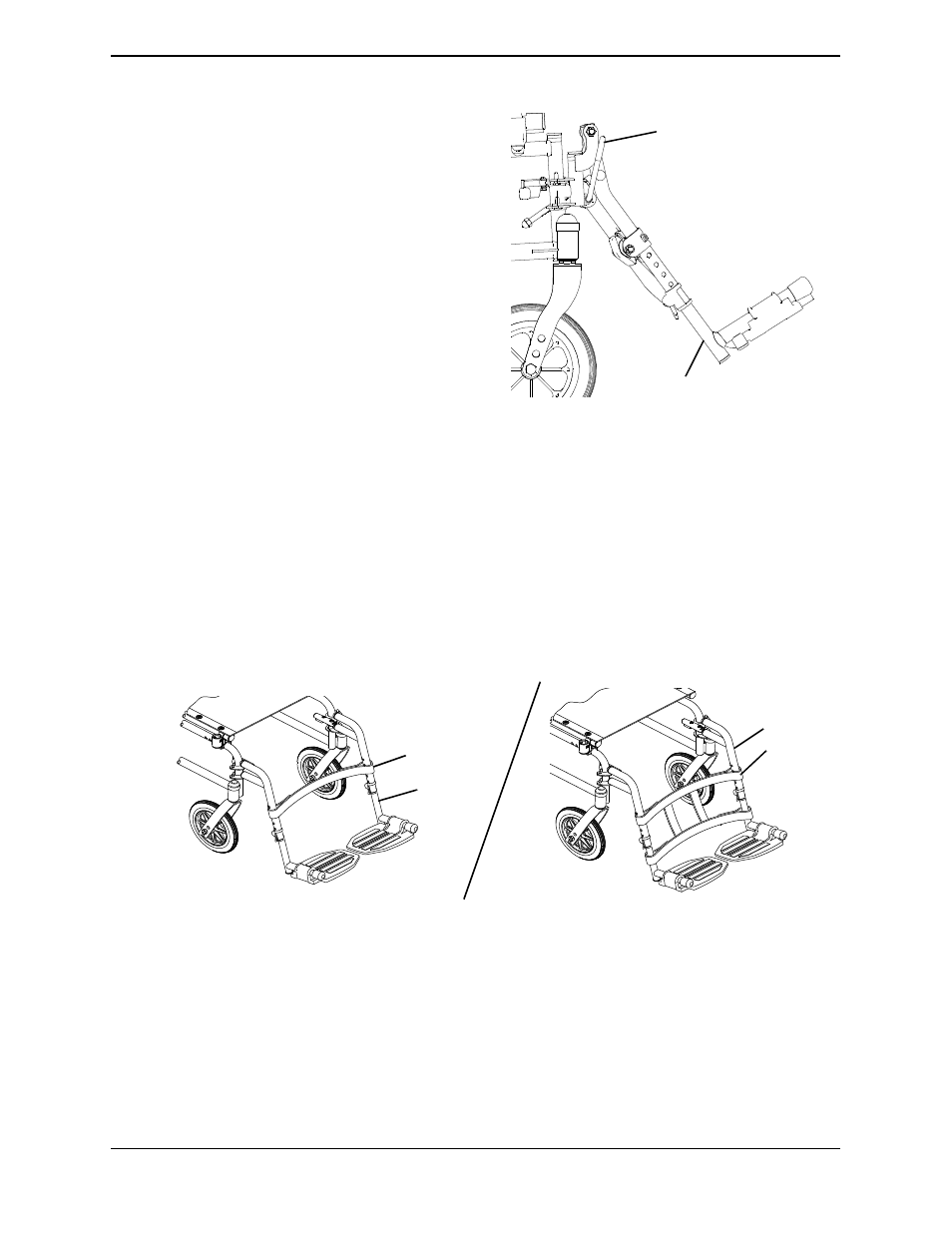

FIGURE 4.4 Raising/Lowering Elevating
Legrest Assembly
Installing H-Strap/Calf Strap
NOTE: For this procedure, refer to FIGURE 4.5.
1. Remove H-strap/calf strap from packaged container if not already secured to the
footrest.
2. Secure one side of the H-strap/calf strap around each footrest.
FIGURE 4.5 Installing H-Strap/Calf Strap
Release Lever
Support Tube
Calf Strap
Footrest
Footrest
H-Strap
Calf Strap
H-Strap
