ASSEMBLY INSTRUCTIONS
8
Release
NOTE: Be careful not to damage the PULSE SENSOR WIRES(73, 74) while doing assembly Step 8 to
Step 10.

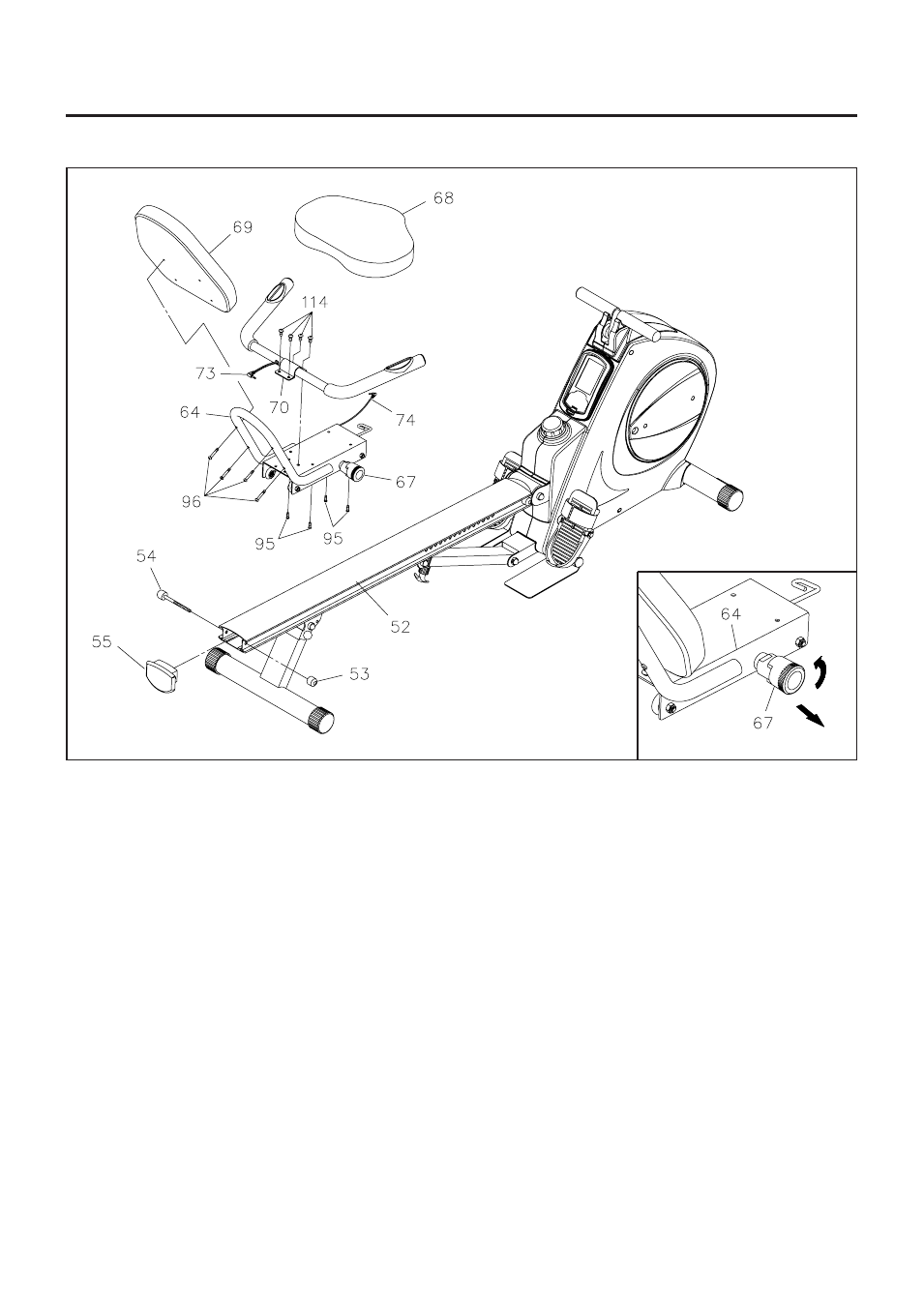

STEP 8
Attach the HANDRAIL(70) onto the SEAT CARRIAGE(64) with BUTTON HEAD BOLTS(M8x1.25x12mm)
(114).
STEP 9
Attach the SEAT(68) onto the SEAT CARRIAGE(64) with HEX BOLTS(M6x1x15mm)(95). Attach the
BACK CUSHION(69) onto the SEAT CARRIAGE(64) with HEX BOLTS(M6x1x30mm)(96).
STEP 10
Turn the knob of the SPRING PIN(67) counterclockwise and lock the knob in the release position, refer to
the inset drawing. Slide the SEAT CARRIAGE ASSEMBLY(64) onto the RAIL(52).
Press the RAIL CAP(55) into the back end of the RAIL(52). Insert the STOPPER BOLT(54) through the
RAIL(52) and RAIL CAP(55) to bolt them together with the STOPPER(53). Please verify that the other
STOPPER BOLT(54) at the front end of RAIL(52) was assembled at the factory.
