ASSEMBLY INSTRUCTIONS
7

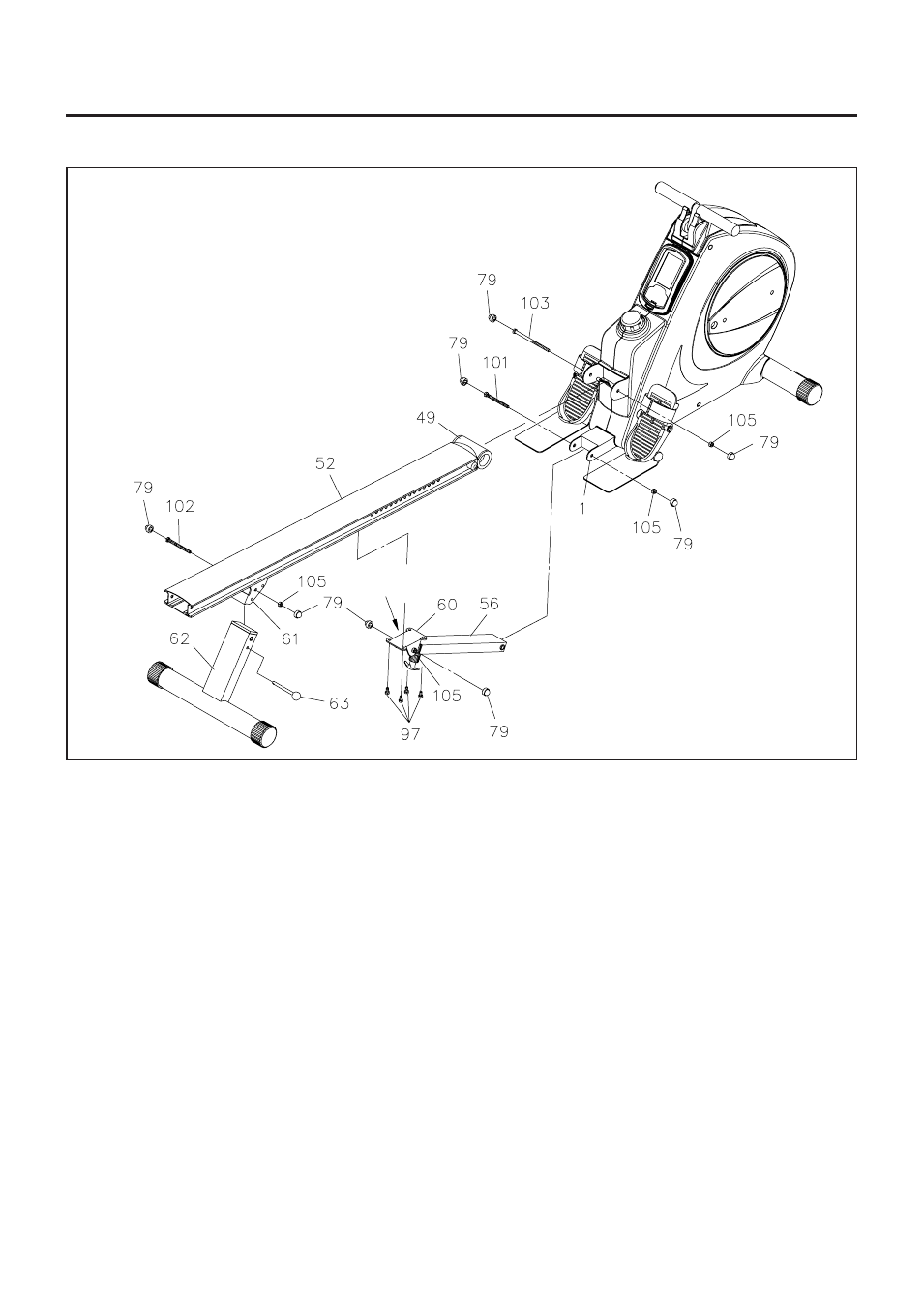

STEP 4
Attach the SUPPORT BRACKET(60) onto the RAIL(52) with HEX BOLTS(M8x1.25x16mm)(97). Press
the NUT CAPS(79) onto NYLOCK NUT(M10x1.5)(105) and HEX BOLT(M10x1.5x75mm)(100).
STEP 5
Attach the RAIL(52) onto the MAIN FRAME(1) by sliding the RAIL PIVOT(49) into the bracket on the MAIN
FRAME(1) and securing with HEX BOLT(M10x1.5x125mm)(103) and NYLOCK NUT(M10x1.5)(105). Press
the NUT CAPS(79) onto HEX BOLT(M10x1.5x125mm)(103) and NYLOCK NUT(M10x1.5)(105).
STEP 6
Connect the lower end of the SUPPORT TUBE(56) to the MAIN FRAME(1) with HEX BOLT(M10x1.5x85mm)
(101) and NYLOCK NUT(M10x1.5)(105). Press the NUT CAPS(79) onto HEX BOLT(M10x1.5x85mm)(101)
and NYLOCK NUT(M10x1.5)(105).
STEP 7
Attach the REAR SUPPORT(62) into the REAR SUPPORT BRACKET(61) located on the RAIL(52) with
HEX BOLT(M10x1.5x95mm)(102) and NYLOCK NUT(M10x1.5)(105). Lock the REAR SUPPORT(62) in
position with the PULL PIN(63). Press the NUT CAPS(79) onto HEX BOLT(M10x1.5x95mm)(102) and
NYLOCK NUT(M10x1.5)(105).
