Sys*stim, 208a specifications

Sys*Stim
®
208A Specifications
General Specifications:
Input:
100 to 240 Volt AC 50/60 Hz,
0.75 Amp (max)
External Fuse:
0.75 A, 250 V, Slow Blow
Weight: 1.5
pounds
Dimensions:
2.75 in (H) x 6.1 in (D) x 8 in (L)
Maximum Treatment Time: 60
minutes
Output Specifications:
Channels: Two
Waveform:
Asymmetrical biphasic with zero net DC
Voltage:
110 V Peak into a 1k ohm load
28 V Peak into a 100 ohm load
Intensity:
56 µC Max per Pulse into a 100 ohm
load
Phase Duration:
200µS @ 50% Max Amplitude
Frequency: Pulse
Mode:
1-80
Hz
Tetanize Mode: 80 Hz
Surge Mode:
80 Hz
Recip. Mode
80 Hz
Surge Cycle:
0.5 On/Off to 3.75 On/Off
Recip. Cycle:
0.5 CH1/CH2 to 3.75 CH1/CH2

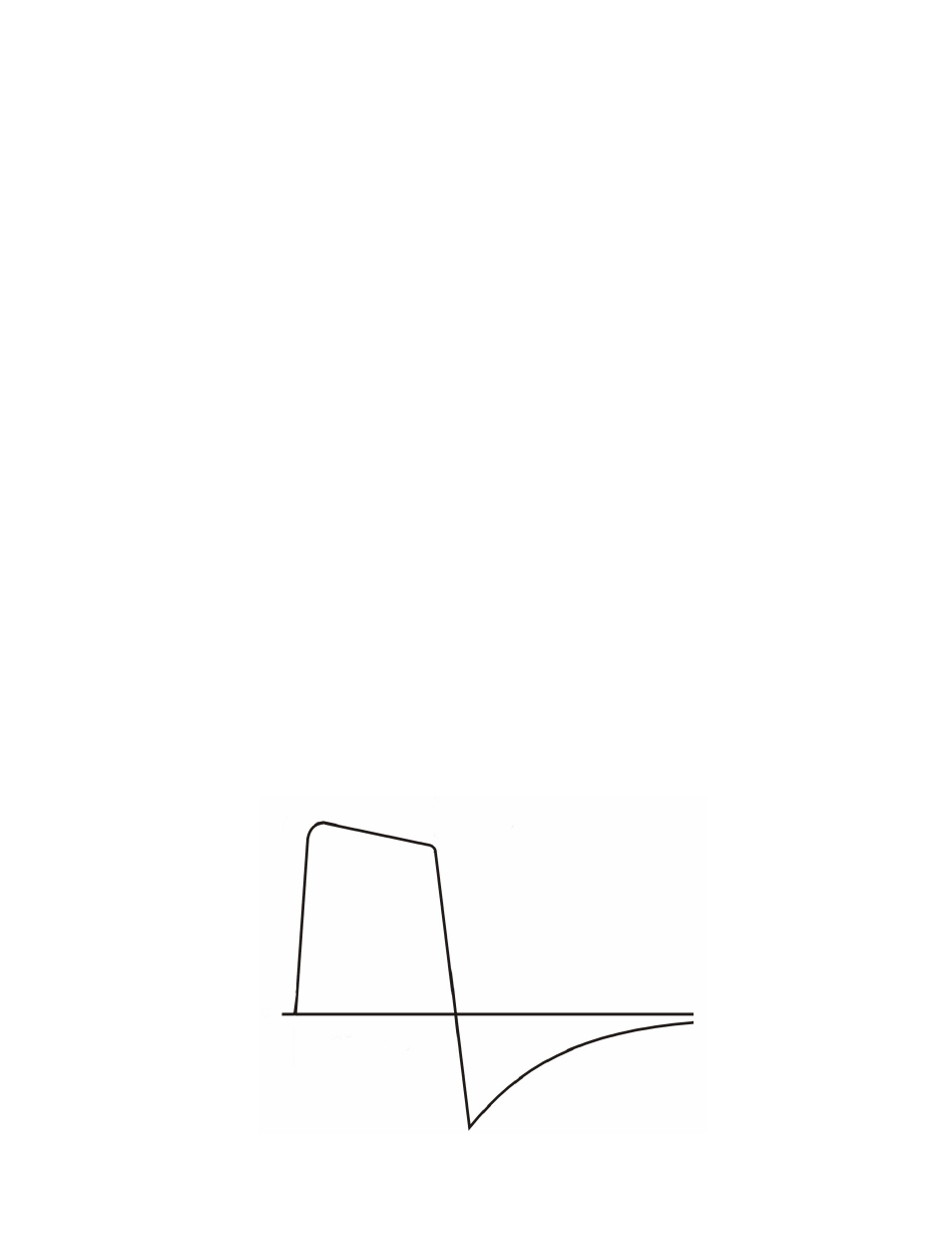

Stimulation Waveform Illustration
