1.3 Brief Description of PC 8719
The PC8719 is the fanless and high performance panel-mount industrial panel PC
with 17” TFT
LCD. It powered by QM67 chipset and support Core i3-2310M 2.1GHz Processor. The panel PC
has a rich variety of functions and peripherals. It comes with 2 x 2.5-inch hard disk drive and 1 x CF
space for data storage , support DDR3 memory up to 16G, support rich i/O, wide range 9~32V DC
input, and also provide 1 x PCIe x 16 slot, it can ensure simplified connectivity to a variety of external
peripheral devices. The OS supports windows XP embedded, Windows embedded standard 7. The
unit deal for a wide range of applications including digital surveillance, data/image acquisition,
factory automation and industrial applications.

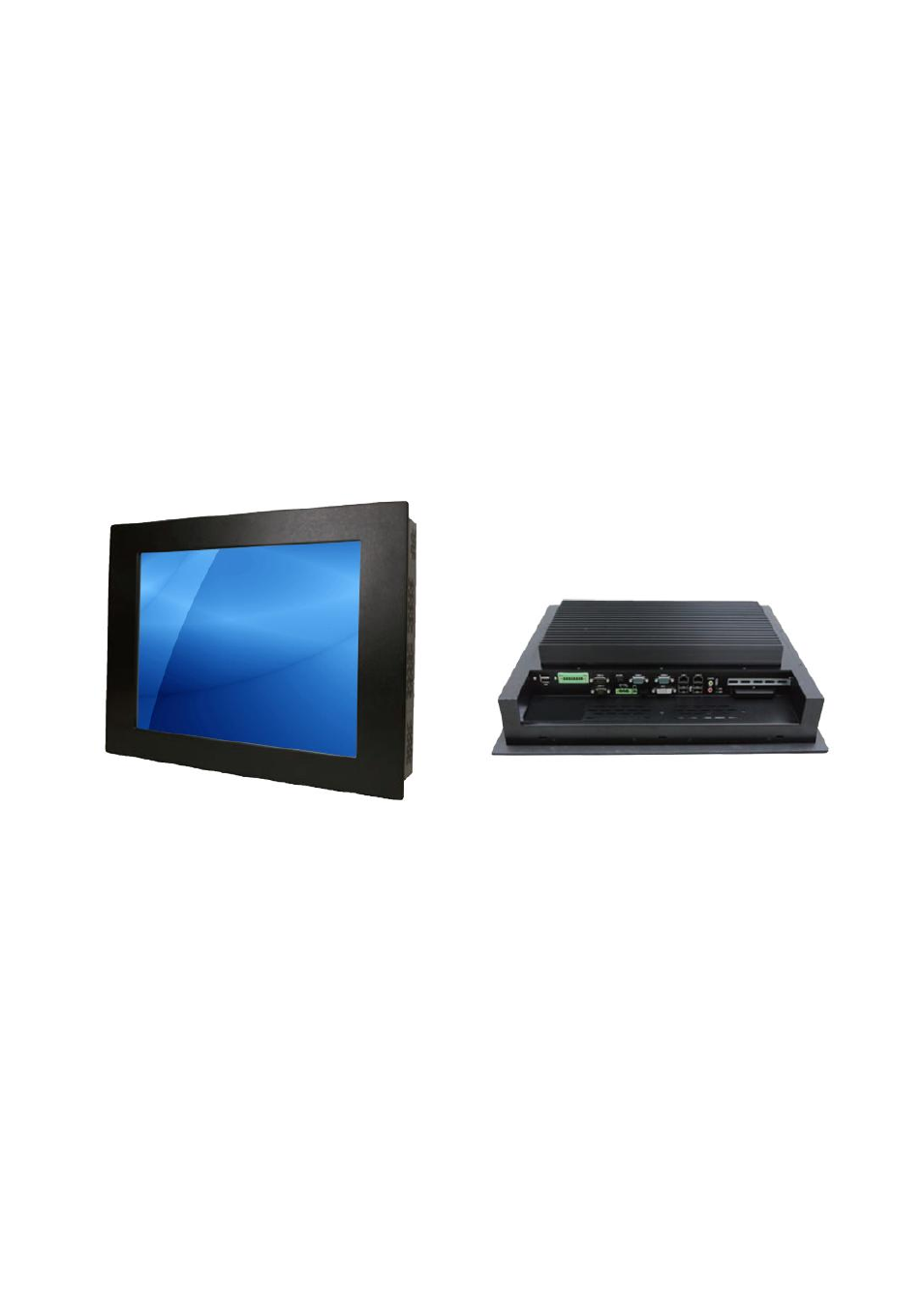

Figure 1.2: Overview of PC 8719
