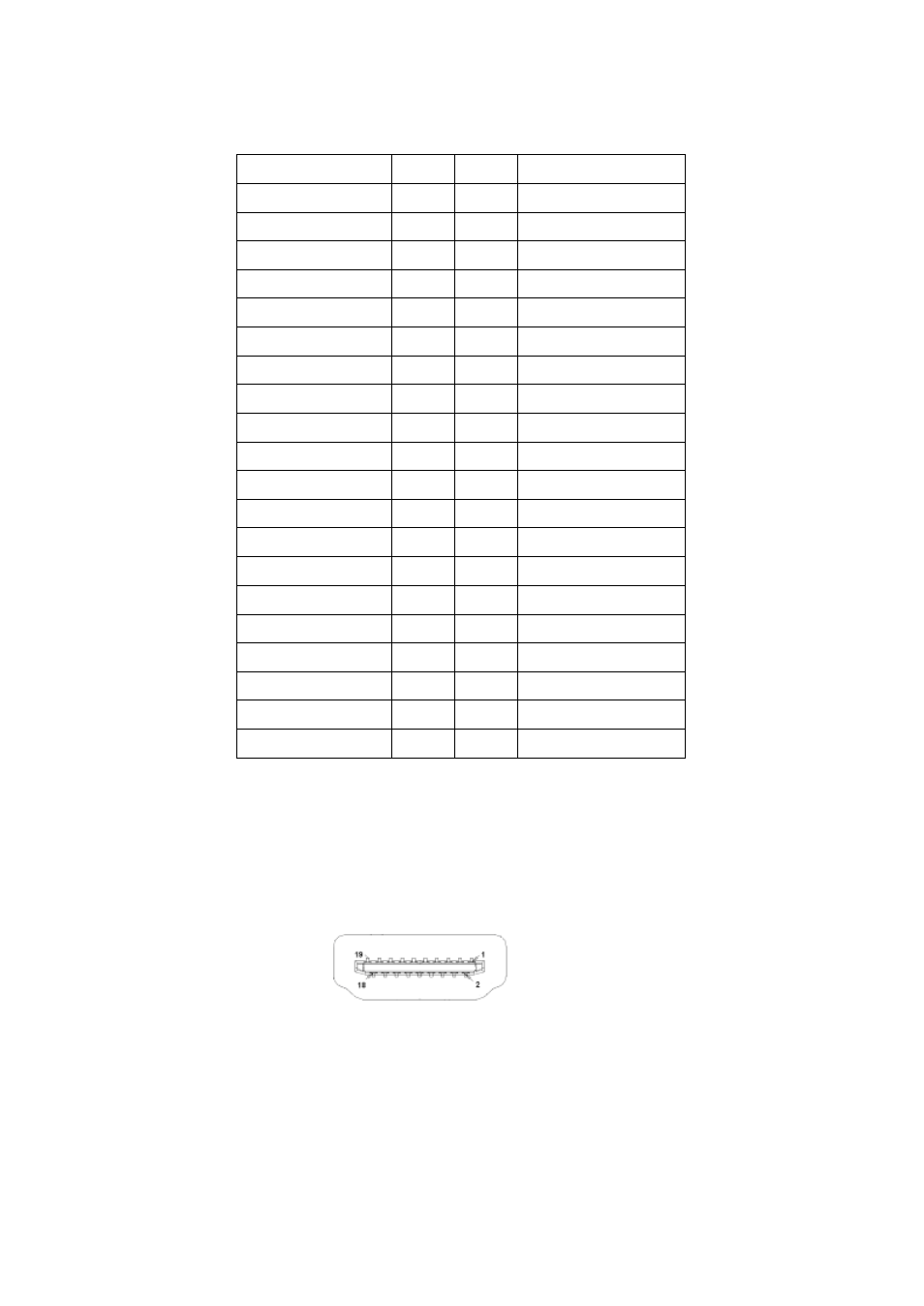

14. LVDS1:
(1.25mm Pitch 2x20 Connector), For 18/24-bit LVDS output connector, Fully supported by Intel
QM67 chipset, the interface features dual channel 18/24-bit output.
Signal Name Pin# Pin# Signal Name
VDD5 2 1 VDD5
Ground 4 3 Ground
VDD33 6 5 VDD33
LB_D0_N 8 7 LA_D0_N
LB_D0_P 10 9 LA_D0_P
Ground 12 11 Ground
LB_D1_N 14 13 LA_D1_N
LA_D1_P 16 15 LA_D1_P
Ground 18 17 Ground
LB_D2_N 20 19 LA_D2_N
LB_D2_P 22 21 LA_D2_P
Ground 24 23 Ground
LB_CLK_N 26 25 LA_CLK_N
LB_CLK_P 28 27 LA_CLK_P
Ground 30 29 Ground
LVDS_DDC_DATA 32 31 LVDS_DOC_CLK
Ground 34 33 Ground
LB_D3_N 36 35 LA_D3_N
LB_D3_P 38 37 LA_D3_P
NC 40 39 NC
15. JP_HDMI:
(2.0mm Pitch 1x2 Pin Header), Reserved.
16. HDMI1:
(HDMI 19P Connector), High Definition Multimedia Interface connector.
17. JP_DVI:
(2.0mm Pitch 1x2 Pin Header), Reserved.
18. DVI-I:
(DVI-I Connector), Digital Visual Interface-Integrated connector.
