Acnodes PC 8719 User Manual

Page 27

Pin#

Signal Name

+DC5V

Ground

+DC12V

Note:

Output current of the connector must not be above 1A.

43. SATA1/SATA2/SATA3/SATA4:

(SATA 7P), SATA Connectors, Four SATA connectors are provided,SATA1 and SATA2 transfer

speed up to 6.0Gb/s, SATA3 and SATA4 transfer speed up to 3.0Gb/s,RAID controller supporting

RAID 0/1/5/10.

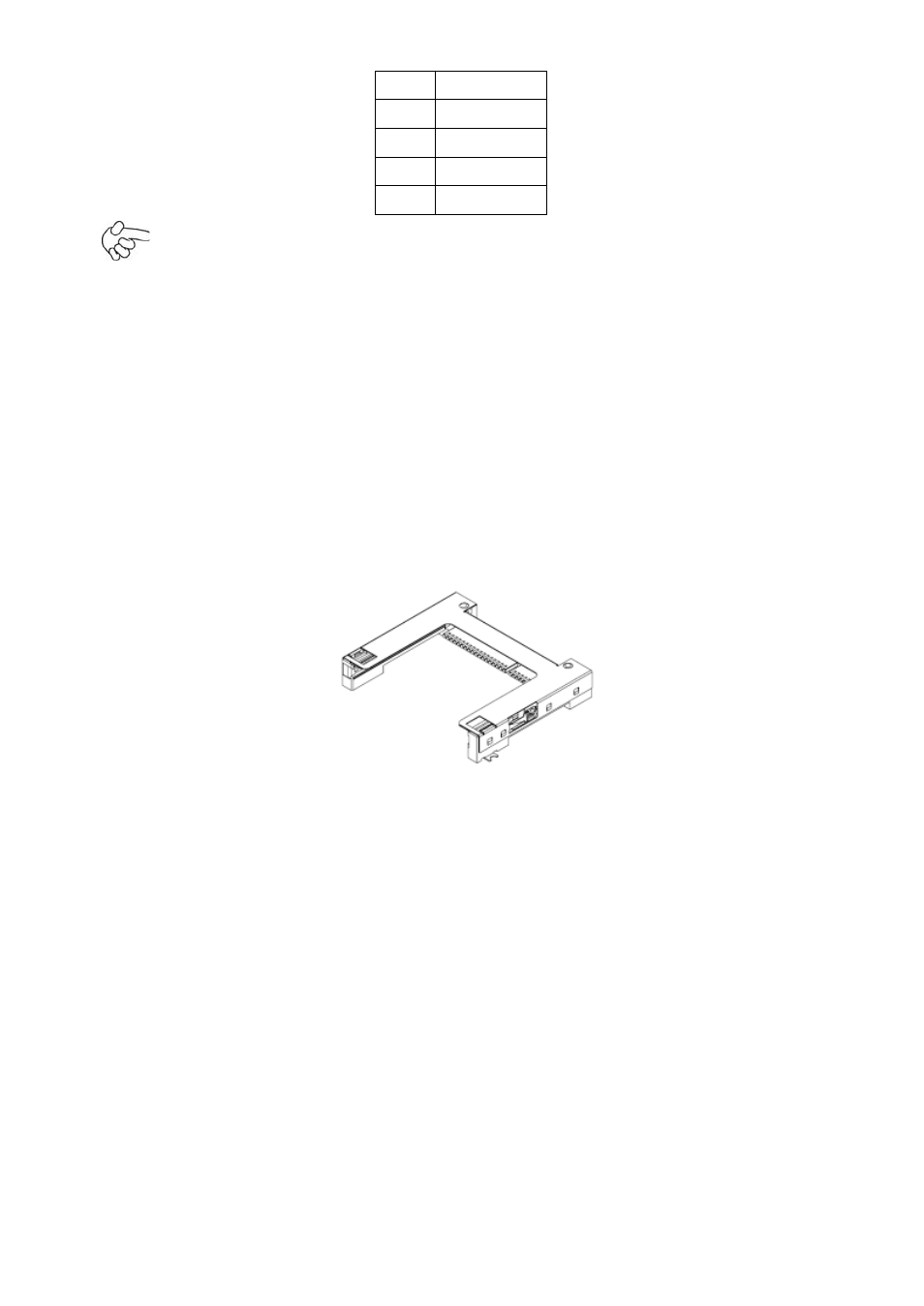

44. CFAST (option):

(CFAST Card socket), it is located at the bottom of the board and serves as an insert interface for

CFAST card.

45. SIM (option)

(SIM Socket 7Pin), Support SIM Card devices.

46. M_SATA1:

(50.95mmx30mm Socket 52Pin), mSATA socket, it is located at the top, it supports mini PCI-e

devices with LPC bus,

B2 mSATA bus

for flash disk signal.

47. H3/H4:

M_SATA1 SCREW HOLES,

H3 and H4 for mini MSATA card (50.95mmx30mm Socket 52 Pin) assemble.

48. CPU SCREW HOLES:

CPU FAN SCREW HOLES, Four screw holes for fixed CPU Cooler assemble.

49. TB-525E161:
