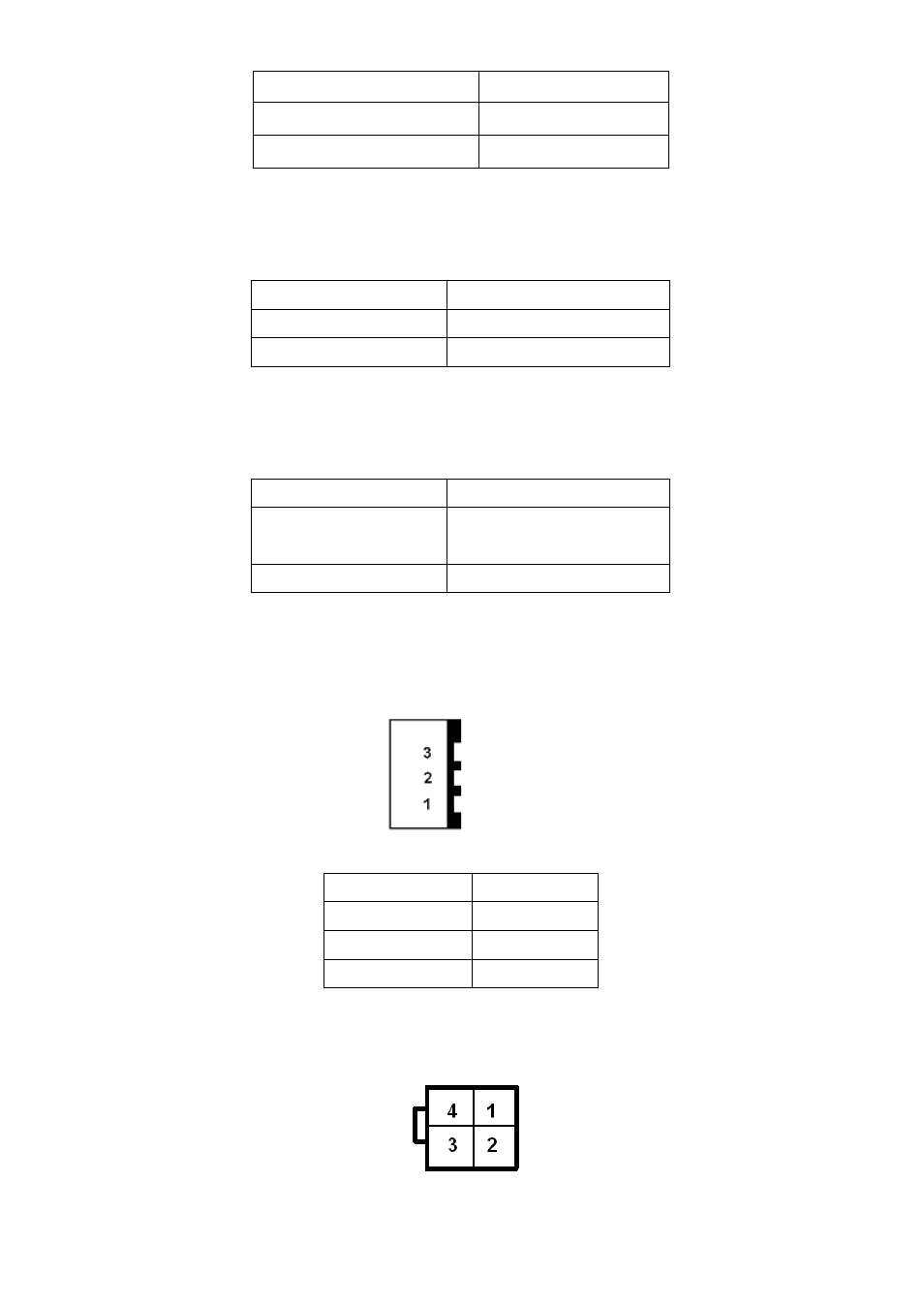

Pin# Signal Name
Pin1 VBAT
Pin2 Ground
3. PS_SEL:
(2.0mm Pitch 1X3 Pin Header),ATX Power and AT Power jumper setting.
PS_SEL Mode
Close 1-2 ATX Power (Default)
Close 2-3 AT Power
4. PS_ON:
(2.0mm Pitch 1X3 Pin Header),ATX Power and Auto Power on jumper setting.
PS_ON Mode
Close 1-2 Auto Power on
(Default)
Close 2-3 ATX Power
5. DCIN:
(5.08mm Pitch 1x3 Pin Connector),DC9V ~ DC32V System power input connector
。
Pin# Power Input
Pin1 DC+9V~32V
Pin2 Ground
Pin3 FG
6. ATX12V_IN (ATX Power option) :
(2x2 Pin Connector),DC12V System power input connector.
