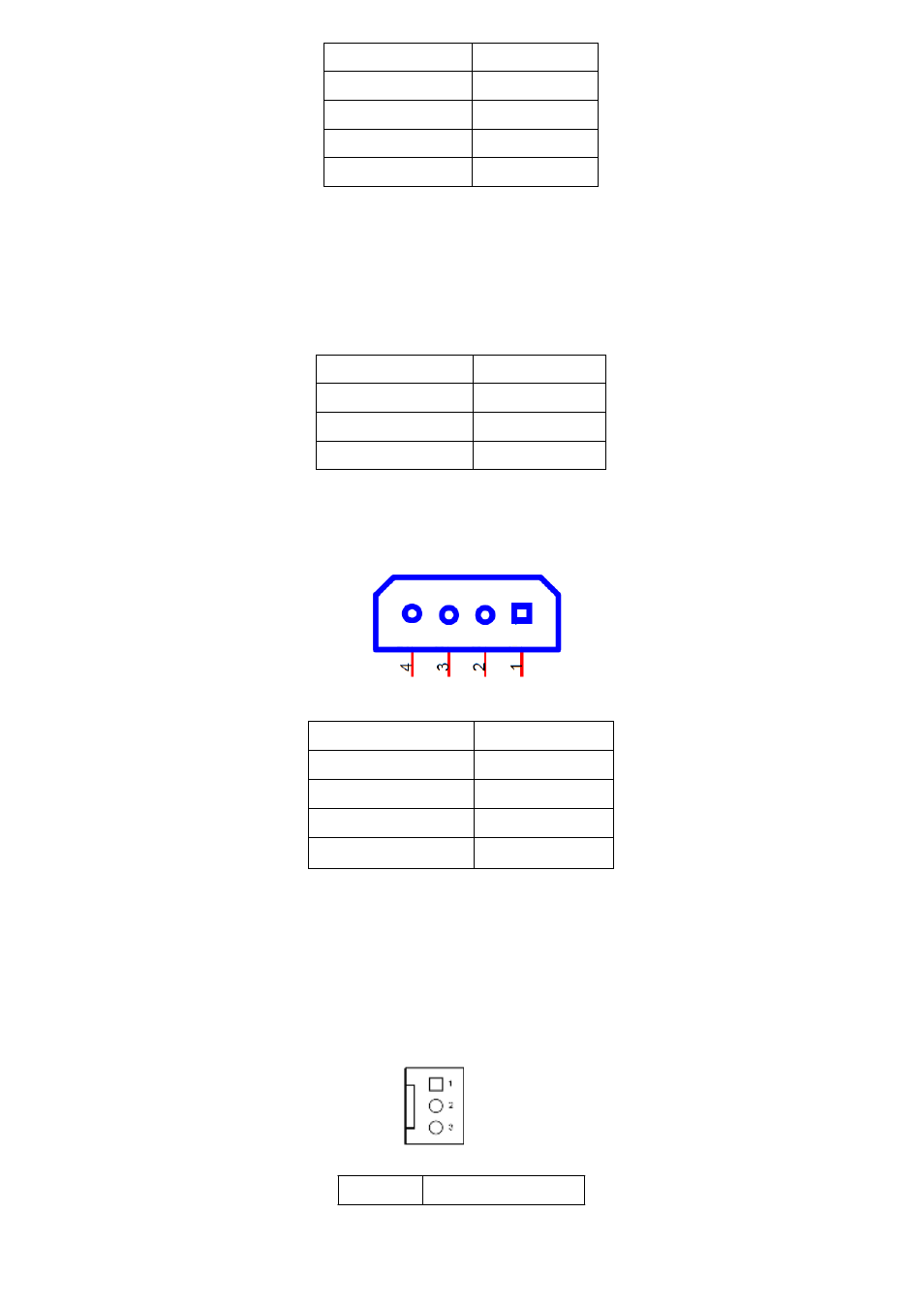

Pin# Power input
Pin1 Ground
Pin2 Ground
Pin3 DC+12V
Pin4 DC+12V
7. ATX (ATX Power option):
(2.0mm Pitch 1X3 box Pin Header), connect PSON and 5VSB and Ground signal,support ATX Power
model. Reserved.
Pin# Signal Name
Pin1 ATX PSON
Pin2 ATX Ground
Pin3 ATX 5VSB
8. DC_OUT:
(2x2 Pin Connector),DC12V and DC5V System power output connector.
Pin# Power output
Pin1 DC+12V
Pin2 Ground
Pin3 Ground
Pin4 DC+5V
9. U1:
(Socket G2), installing the 2nd GEN intel Core i3/i5/i7CPU Socket.
10. CPU_FAN1/SYS_FAN1:
(2.54mm Pitch 1x3 Pin Header),Fan connector, cooling fans can be connected directly for use. You
may set the rotation condition of cooling fan in menu of BIOS CMOS Setup.
Pin# Signal Name
