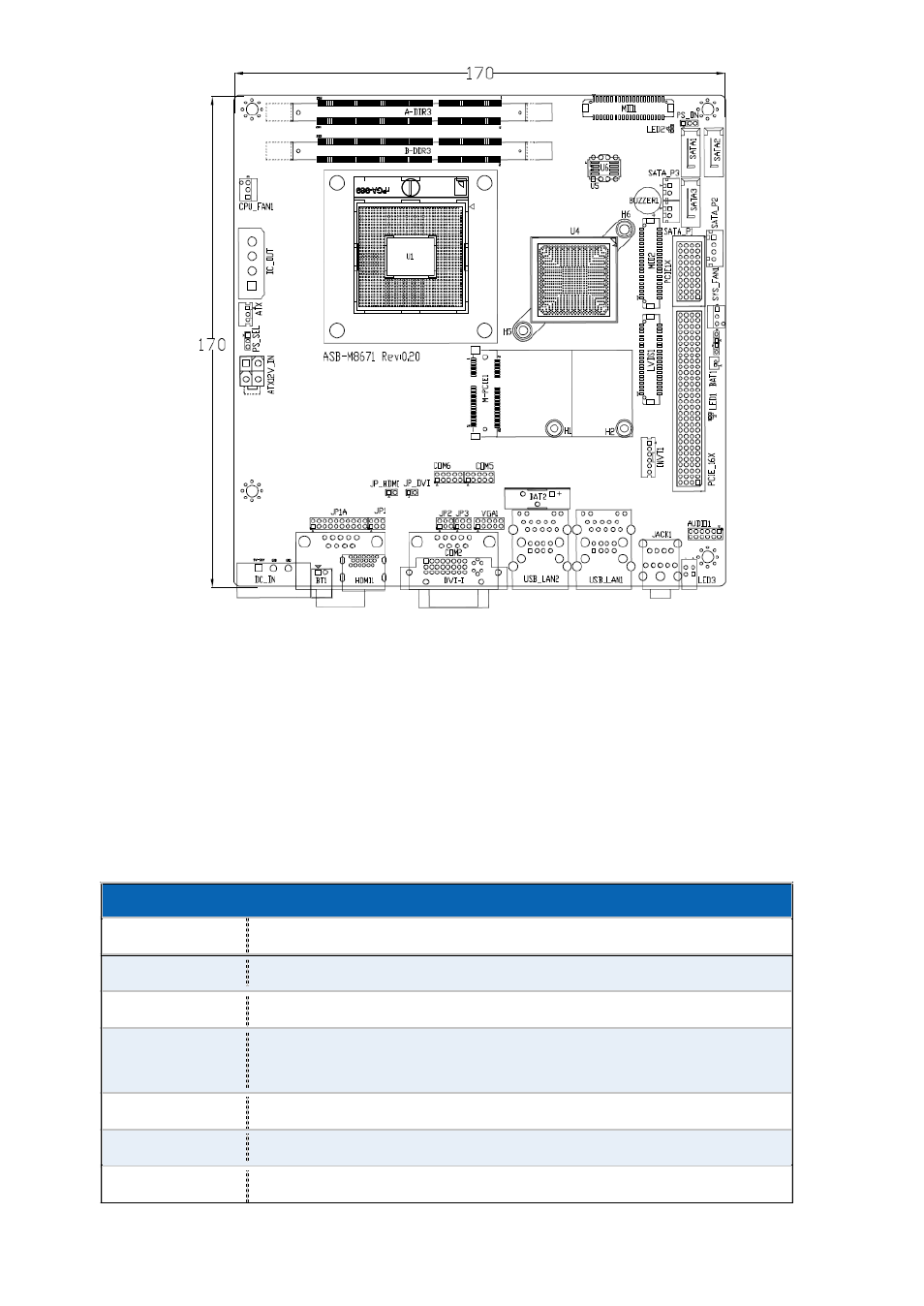

Figure 2.2: Mainboard Dimensions
IPC -M8671 is a Mini-ITX industrial motherboard developed on the basis of Intel QM67,which
provides abundant peripheral interfaces to meet the needs of different customers. Also, it
features dual GbE ports, 6-COM ports and one Mini PCIE configuration. To satisfy the special
needs of high-end customers, ADOtec designed 120Pin PCIe x16 and 40Pin PCIe x1
expansion interface. The product is widely used in various sectors of industrial control.
2.1 Specifications
Specifications
Board Size 170mm x 170mm
CPU Support Support Socket G2,2nd Gen Intel Core i3/i5/i7 Processor
Chipset Intel QM67
Memory
Support
2 x SO-DIMM (204pins), up to 8GB DDRIII 800/1066MHz
FSB
Graphics Intel HD Grapics 2000/3000
Super I/O Winbond W83627UHG
BIOS AMIBIOS
