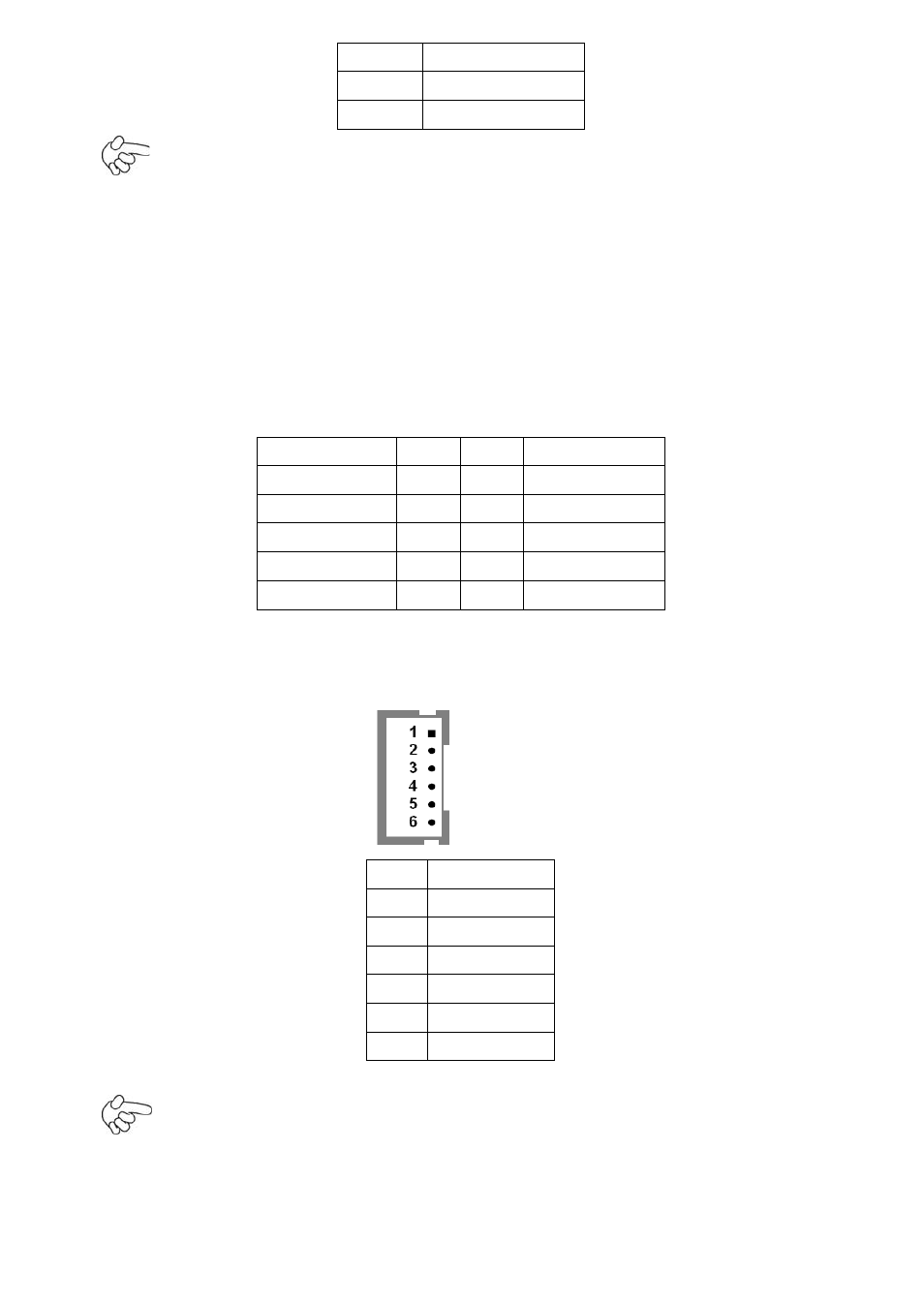

1 Ground
2 VCC
3 Rotation detection
Note:
Output power of cooling fan must be limited under 5W.
11. A-DDR3/B-DDR3:
(SO-DIMM 204Pin socket), DDRIII memory socket, the socket is located at the Top of the board and
supports 204Pin 1.5V DDRIII 1066/1333MHz FSB SO-DIMM memory module up to 16GB.
12. VGA1:
(CRT 2.0mm Pitch 2X5 Pin Header), Video Graphic Array Port, Provide 2x5Pin cable to VGA Port.
Signal Name Pin# Pin# Signal Name
CRT_RED 1 2 Ground
CRT_GREEN 3 4 Ground
CRT_BLUE 5 6 Ground
CRT_H_SYNC 7 8 CRT_DDCDATA
CRT_V_SYNC 9 10 CRT_DDCCLK
13. INVT1:
(2.0mm Pitch 1x6 box Pin Header), Backlight control connector for LVDS1.
Pin# Signal Name
1 +DC12V
2 +DC12V
3 Ground
4 Ground
5 BKLT_EN
6 BKLT_CTRL
Note:
Pin6 is backlight control signal, support DC or PWM mode, mode select at BIOS CMOS menu.
