External I/O

port

Watchdog

Timer

Temperature

HDD LED status by MIO2

2 x COM Ports (COM1/COM2)

4 x USB 2.0 Ports (stack)

2 x RJ45 GbE LAN Ports

1 x DVI-I Port

1 x HDMI Port

1 x Audio Ports (Mic, Line out)

Software programmable 1

– 255 second by Super I/O

Operating: -20

℃ to 70℃

Storage: -40

℃ to 85℃

Humidity

10% - 90%, non-condensing, operating

Power

Consumption

12V/3.80A (Intel i5-2430M 2.4GHz Processor with 4GB

DDR3)

EMI/EMS

Meet CE/FCC class A

2.2 Jumpers Setting and Connectors

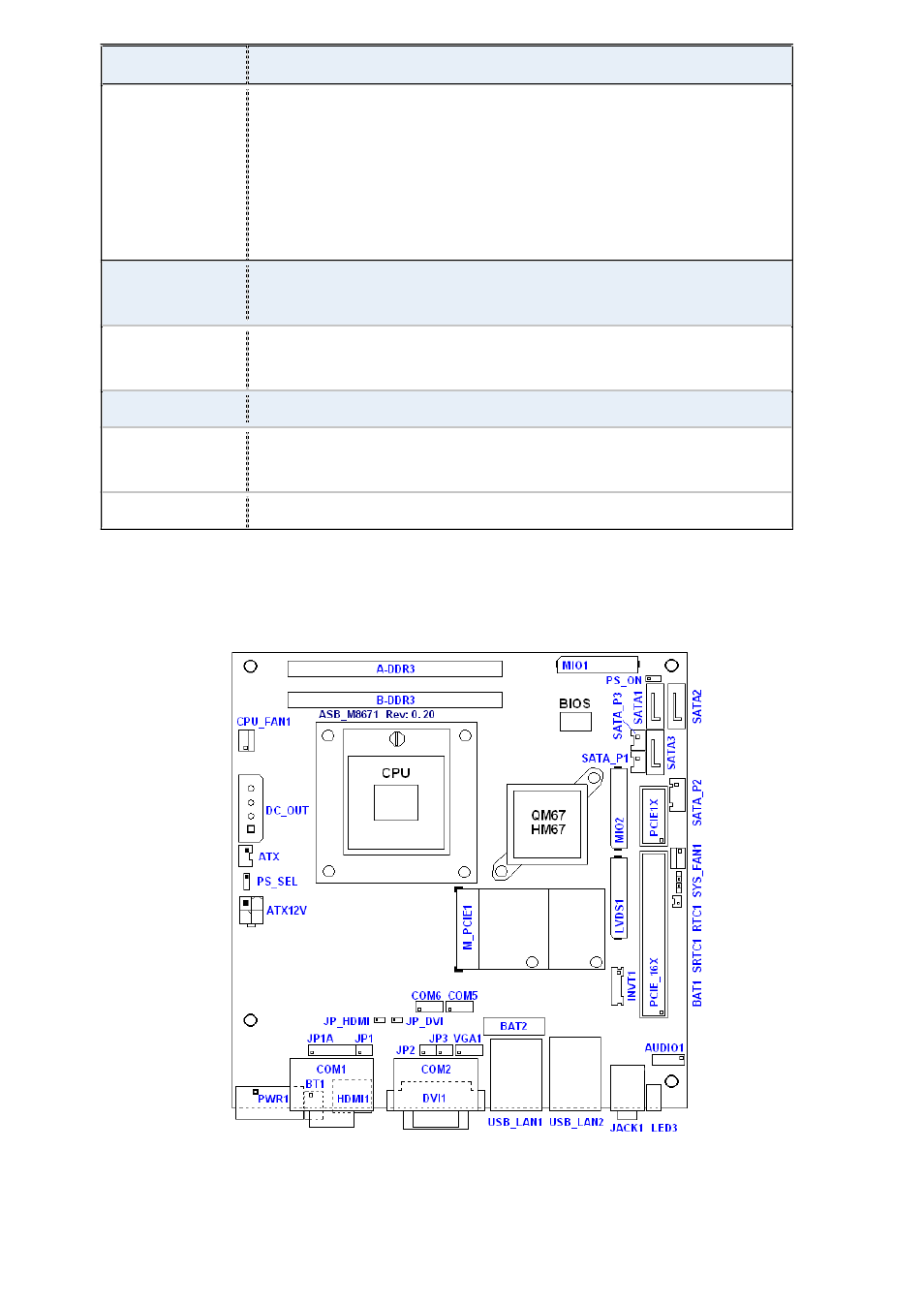

Figure 2.3:

Jumpers and Connectors Location-TOP
