RMC 7135
1U Rackmount System
Installing a Passive CPU Heatsink
Notes: The motherboard comes with a heatsink
bracket pre-in- stalled on the reverse side of the
board. Do not apply any thermal grease to the
heatsink or the CPU die; the required amount has al-
ready been applied.

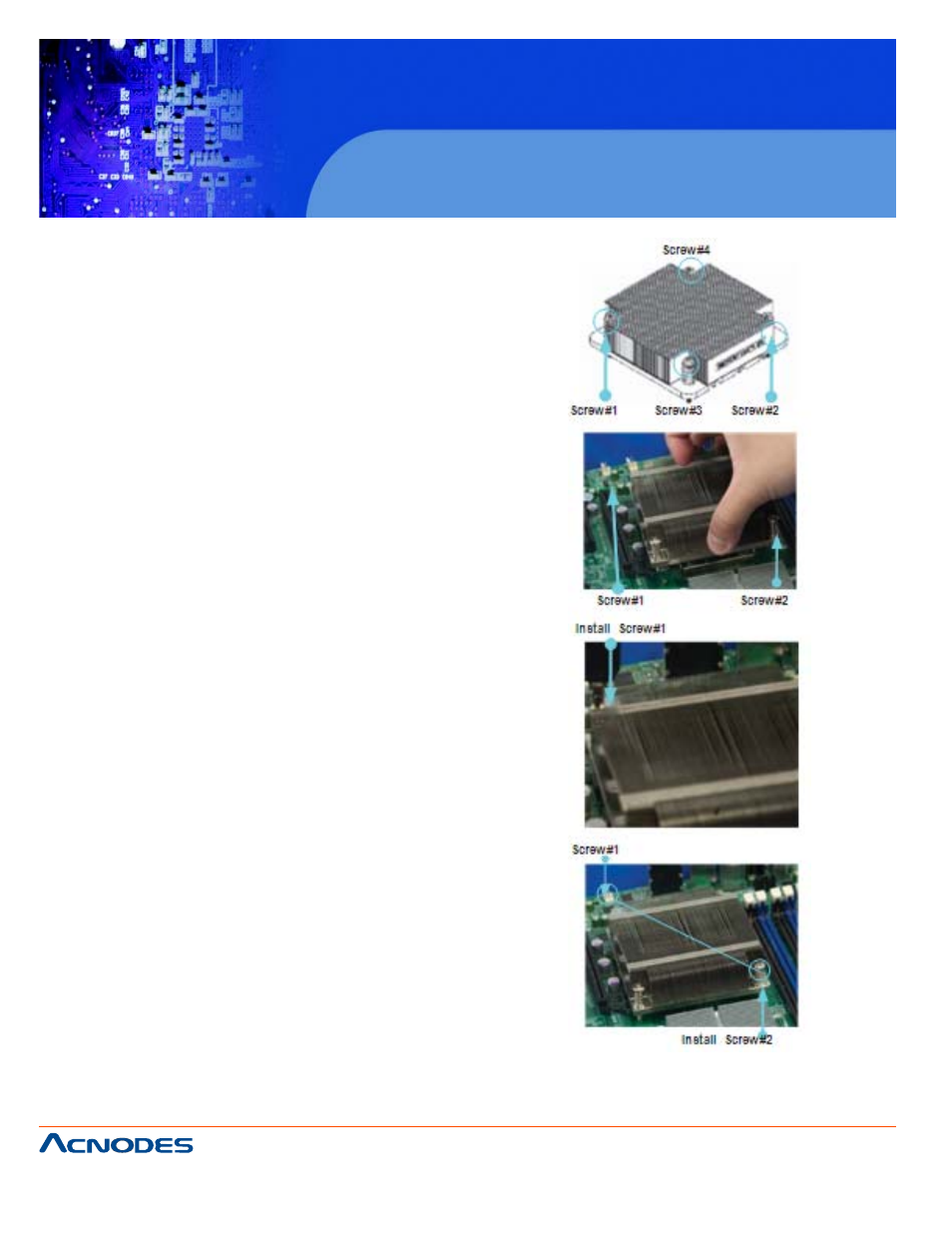

1. Place the heatsink on top
of the CPU so that the four mounting holes are aligned
with those on the retention mechanism.
2. Install two diagonal screws
(i.e. the #1 and the #2
screws) and tighten them until just snug (do not fully
tighten the screws to avoid damaging the CPU.)
3. Repeat step 2 with the #3
and #4 screws. Make sure all screws are snug.
