RMC 7135
1U Rackmount System
5-4 I/O Ports

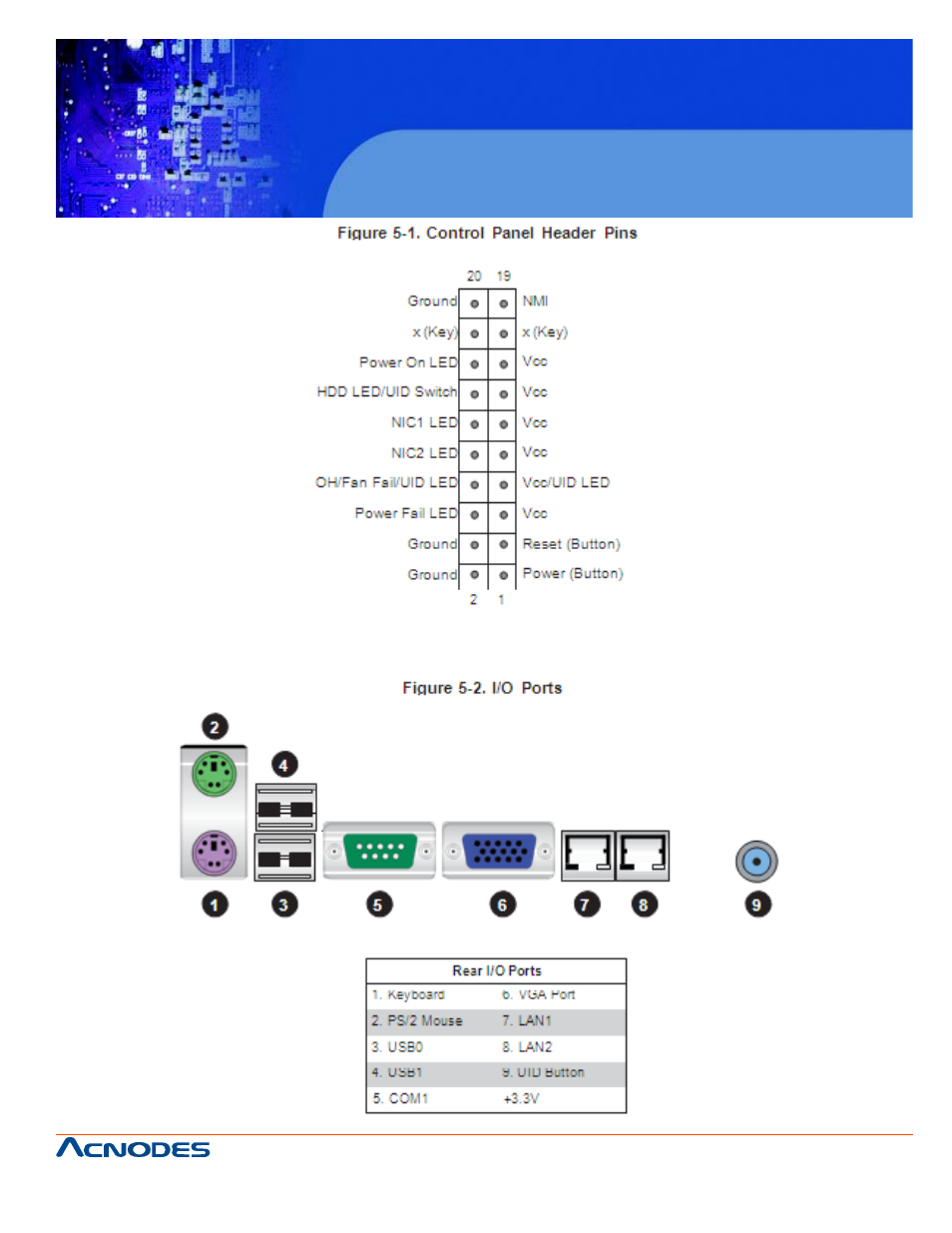

The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-2 below for the
colors and locations of the various I/O ports.
