RMC 7135
1U Rackmount System

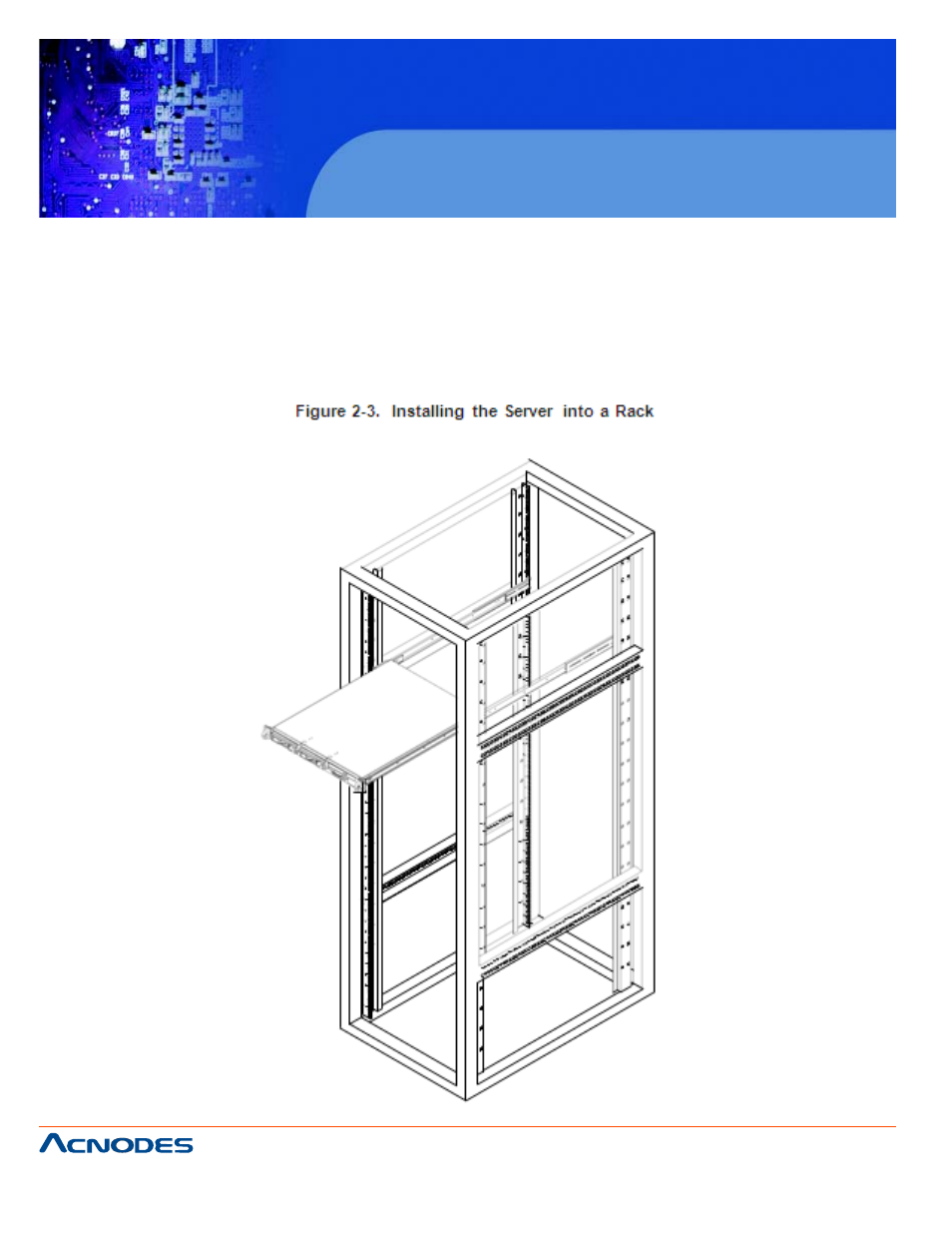

Installing the Server into the Rack
You should now have rails attached to both the chassis and the rack unit. The next step is to install the
server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails. Slide the
chassis rails into the rack rails, keeping the pressure even on both sides (you may have to depress the
locking tabs when inserting). See Figure 2-2.
When the server has been pushed completely into the rack, you should hear the locking tabs "click".
