5.2 Port Name

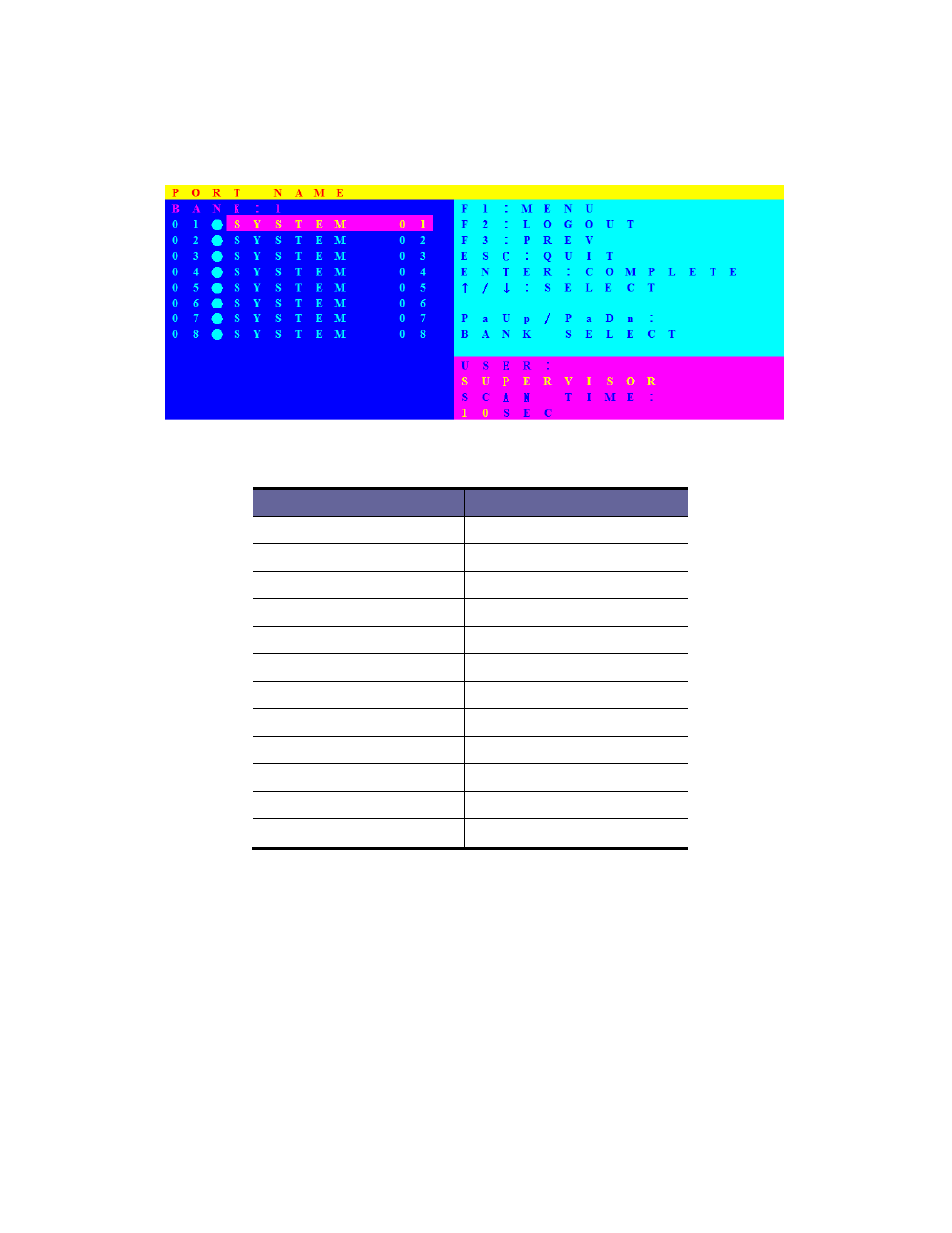

Figure 5-3. Port Name
OSD Function Key Description
F1 Go to Main Menu
F2 CONSOLE OFF
F3 Previous Menu
Enter Switch to Selected Port
↑ / Move Select
PgUp Previous Bank
PgDn Next bank
Esc Quit
1 Show port 01 ~ 08
2 Show port 09 ~ 16
3 Show port 17 ~ 24
4 Show port 25 ~ 32
Table 5-2. OSD Function Key
CONSOLE OFF – logout so the next person needs to enter user name and
password in order to do operation on this KVM system
USER: There are two type of user SUPERVISOR and USER. SUPERVISOR
can setup the change the OSD settings at Main Menu. USER can do Port switch
and Port Search only.
