Acnodes KDM 7178 User Manual
Page 29
24
KDM series User’s Manual

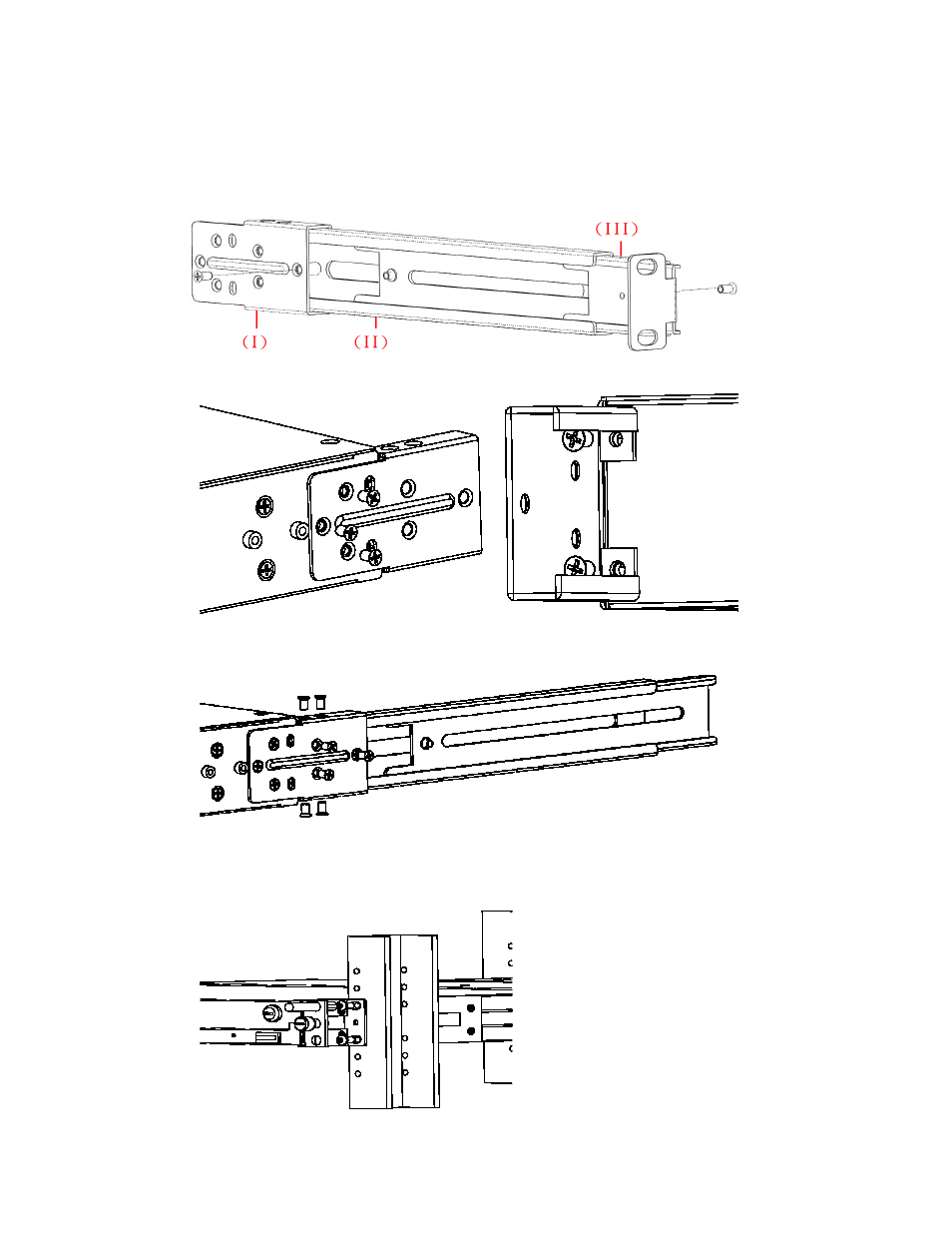

B. Rack Depth Above 655 mm –KDM 7178 / 71716 (Above 715 mm –
KDM 7198 / 71916)
1. Remove the screw of long assembly bracket and keep screws
2. Combine (I) to console from each side using cap screw (5 pcs each side)
3. Combine (I) and (II) from each side (7 pcs each side)
4. Release the Thumb Screw of front bracket and Install front bracket from each
side using cabinet screws
