KDM series User’s Manual
38

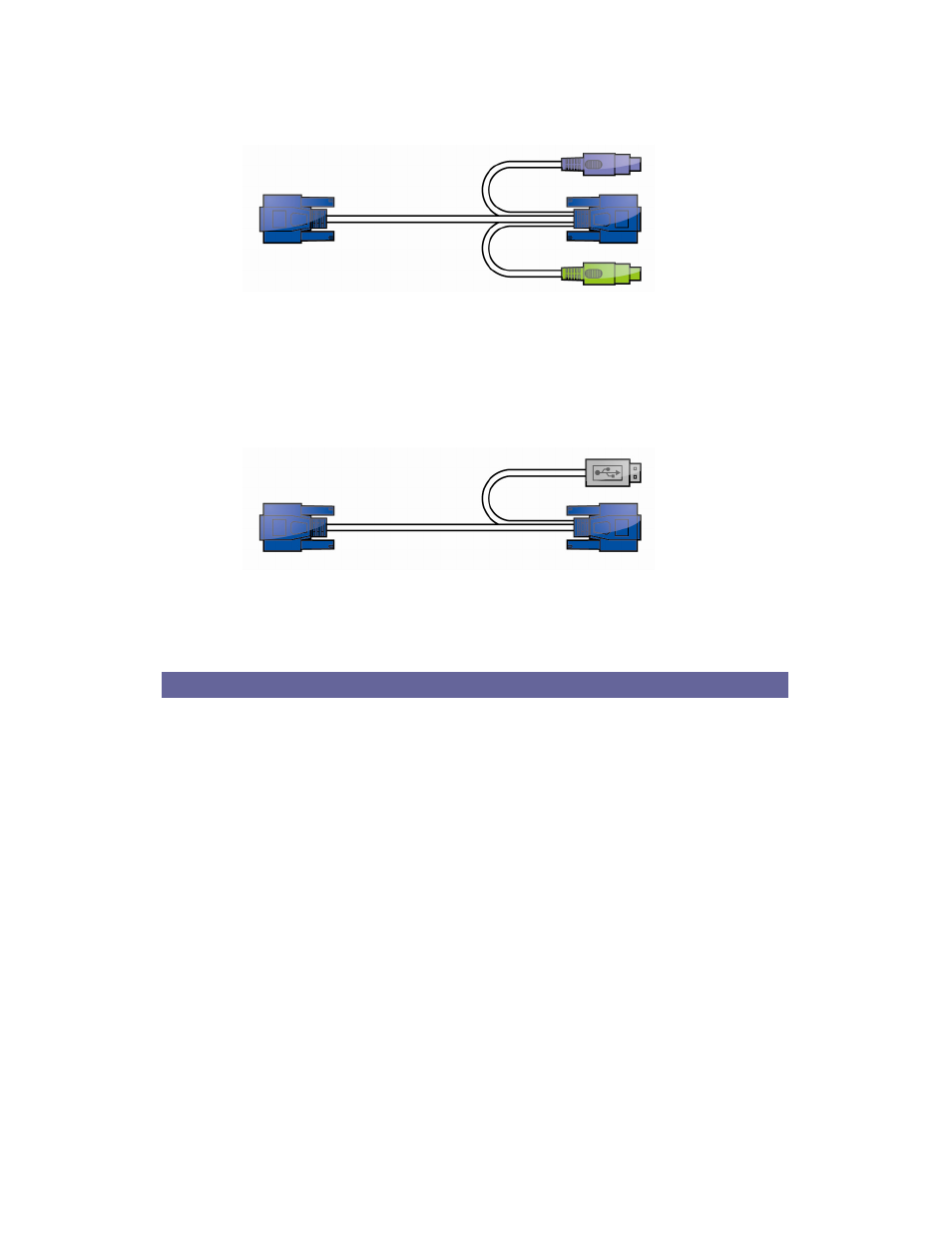

Figure 2-3. 3-in-1 HDDB-15 Cable
b. USB computer --- Plug in USB connector. This single USB connector can
handle both keyboard and mouse data, it work as a standard HID (Human
Interface Device) no extra driver needed.
Figure 2-4. HDDB-15 / VGA + USB Cable
2.2 Console Installation
Local Console
Connect the monitor to the HDDB-15 female port on the back of the KVM unit
labeled with the monitor symbol at the Local Console connector.
There may be USB local console or PS/2 local console. For USB local console,
connect the USB keyboard to either one of USB local port and USB mouse to
the other USB port. These USB ports are special designed for keyboard and
mouse, and can not work with USB hub or other USB devices. For PS/2 local
console, connect keyboard to purple PS/2 port and mouse to green PS/2 mouse
port. There is a Daisy chain port under VGA ports.
