Console port of the next Slave KVM switch. Please repeat the connection
procedures for next Slave KVM switch. You can daisy chain up to eight banks in
maximum.

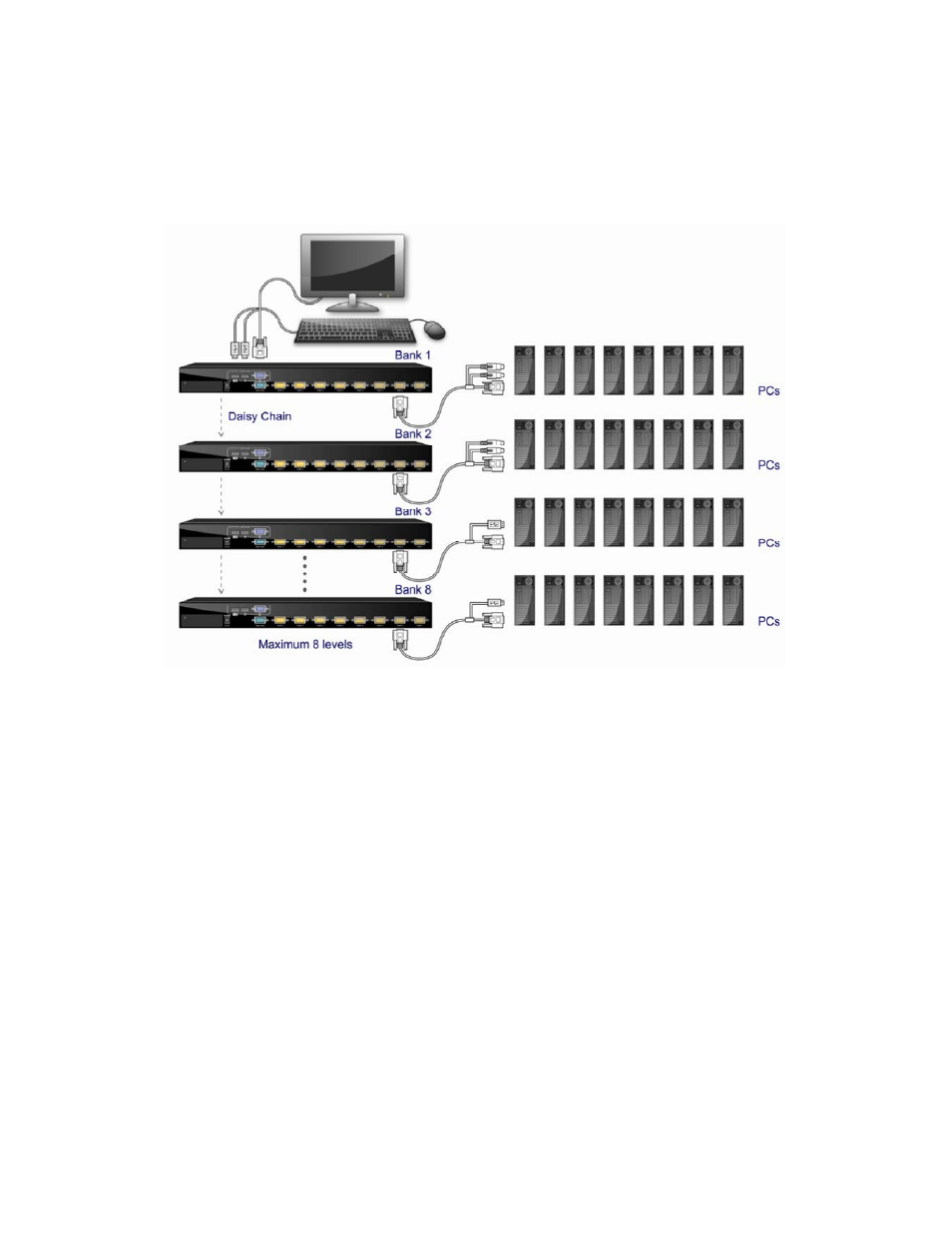

Figure 2-8. Daisy Chain Connection
The console OSD menu will show only the port information of the master KVM
switch. When the master unit starts up, it will query all daisy chained Slave units,
and automatically set up the Bank ID for each Slave unit. So the 7-seg LED on
the Master unit will display 1, Slave 1 will display 2, Slave 2 will display 3, and so
on. If not so, please reset (press “BANK” and port button) the Master unit to
update the Bank ID immediately. Hot Plug function is supported in daisy chain
connection. The Master unit will auto-query the daisy chained Slaves every 30
seconds.
