Acnodes KDM 7178 User Manual
Page 26
21
KDM series User’s Manual

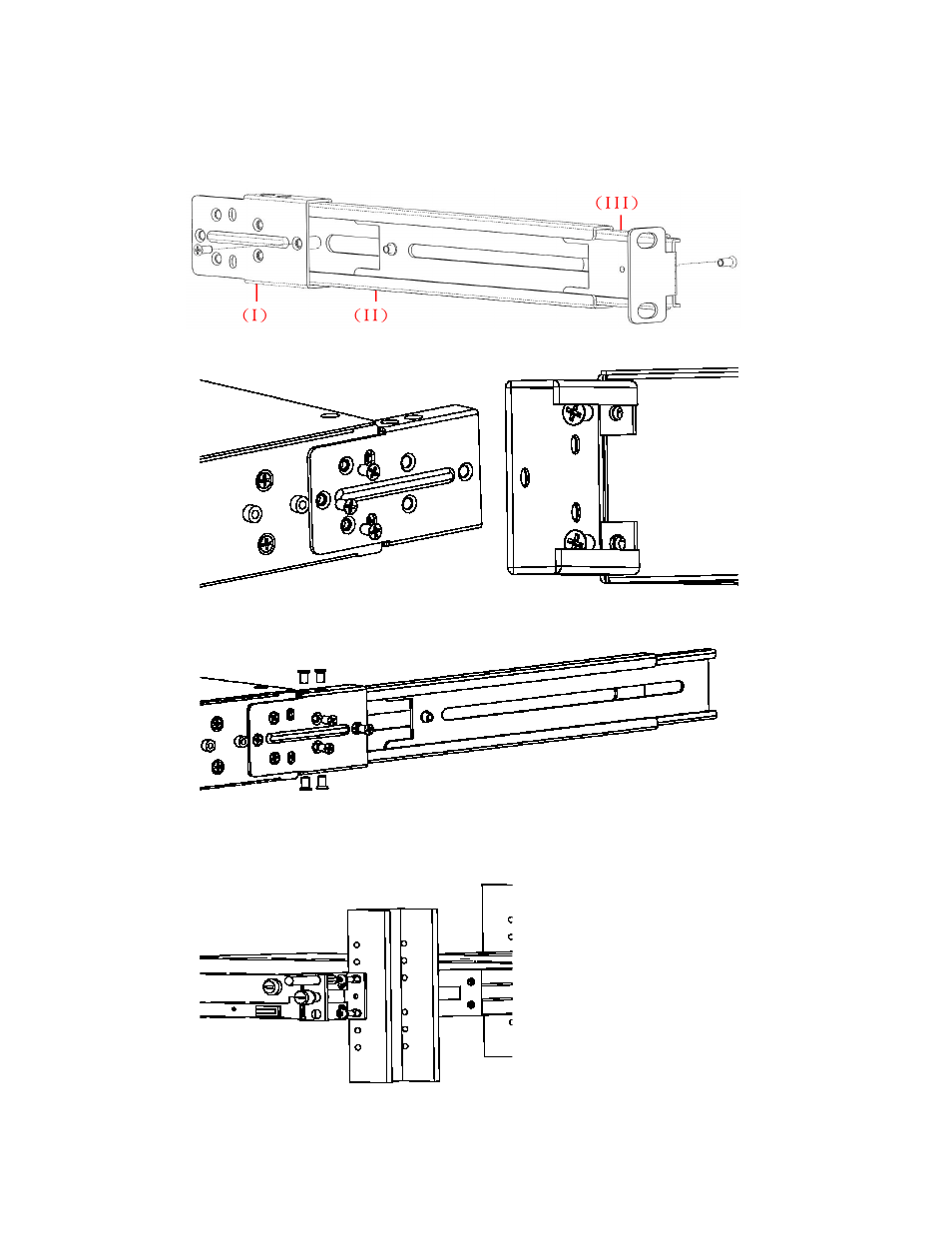

B. Rack Depth Above 535 mm – KDM 7170 (Above 595 mm – KDM 7190)
1. Remove the screw of long assemblied bracket and keep screws
2. Combine (I) to console from each side using cap screw (5 pcs each side)
3. Combine (I) and (II) from each side (7 pcs each side)
4. Release the Thumb Screw of front bracket and Install front bracket from each
side using cabinet screws
