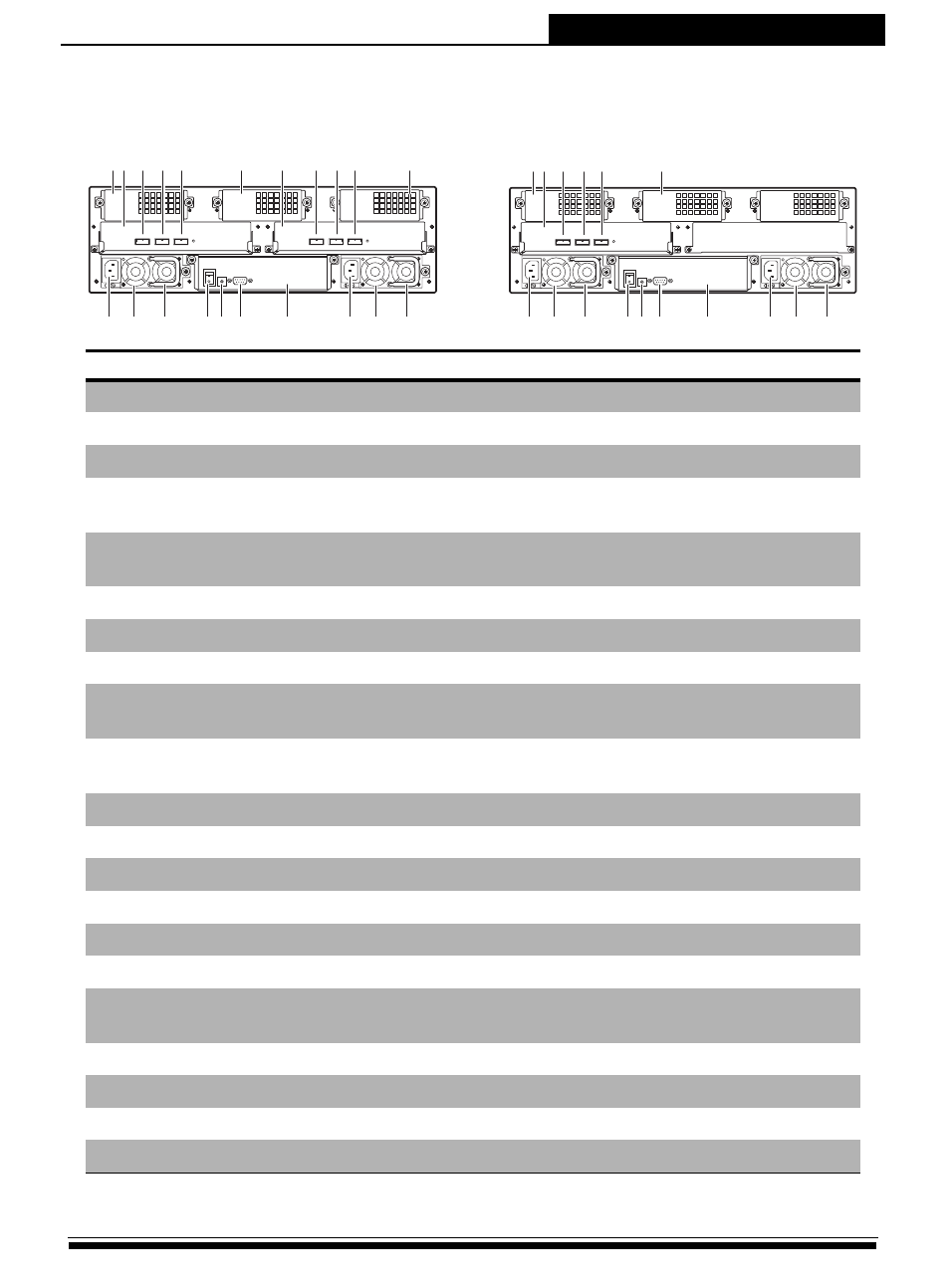

JBOD System
Quick Start Guide
No.
Item
Description
1
Cooling fan 1
System cooling fan.
2
JBOD Controller A
JBOD controller.
3
Expansion port (Controller A)
Use for JBOD expansion.
4
Host channel 1 (Controller A)
Connects to EXP port on RAID system or
SAS HBA card of host.
5
Host channel 2 (Controller A)
Connects to EXP port on RAID system or
SAS HBA card of host.
6
Cooling fan 3
System cooling fan.
7
JBOD Controller B
JBOD controller.
8
Expansion port (Controller B)
Use for JBOD expansion.
9
Host channel 1 (Controller B)
Connects to EXP port on RAID system or
SAS HBA card of host.
10
Host channel 2 (Controller B)
Connects to EXP port on RAID system or
SAS HBA card of host.
11
Cooling fan 2
System cooling fan.
12
AC power port
Connects to the power source.
13
Power supply 1
Removable power supply.
14
Power supply handle
Use to pull out the power supply.
15
Power supply switch
Use to switch the power on or off.
16
Chasis ID switch
Use for JBOD enclosure only.
17
UPS port
Data port for uninterruptable power
supply.
18
IO tray
Holds the IO board and BBMs.
19
AC power port
Connects to the power source.
20
Power supply 2
Removable power supply.
21
Power supply handle
Use to pull out the power supply.
EXP
CH 1
CH 2
EXP
CH 1
CH 2
Fan 1
Fan 3
Contraller A
Fan 2
Contraller B
P/S 1
P/S 2
VER 1.0
P/S
UPS
Chassis
ID
567
8
90
12
3
4
1
6
13
14
15 16 17
18
12
20
21
19
2
5
4
3
10
9
8
11
7
EXP
CH 1
CH 2
Fan 1
Fan 3
Contraller A
Fan 2
Contraller B
P/S 1
P/S 2
VER 1.0
P/S
UPS
Chassis
ID
567
8
90
12
3
4
1
6
13
14
15 16 17
18
12
20
21
19
2
5
4
3
A16R-SJ
A16U-SJ
